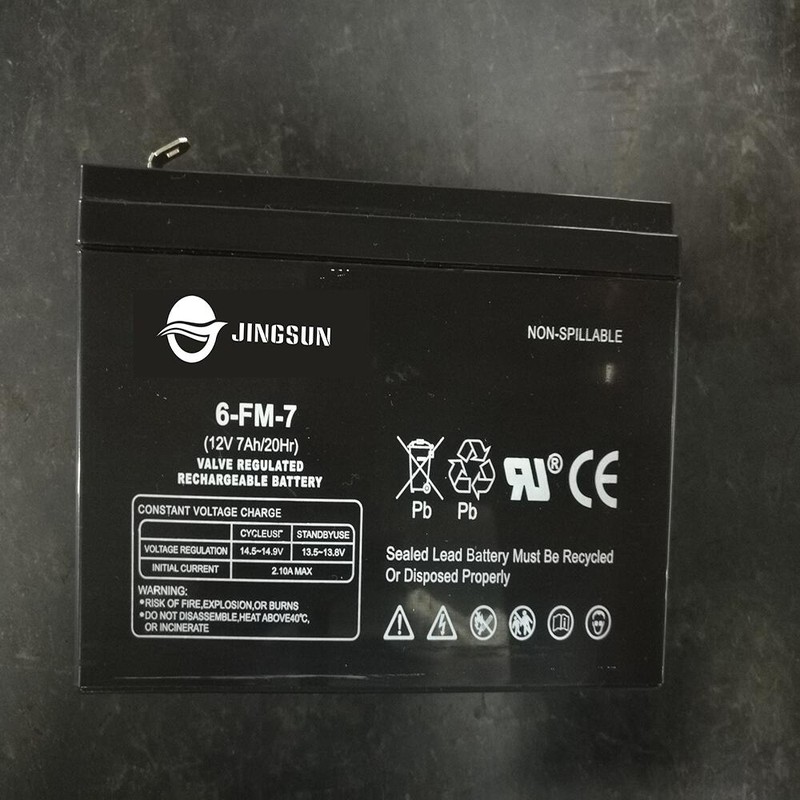

Products Description
Place of Origin |
Anhui, China |
Battery Type |
AGM Battery |
Size |
151*65*94mm |
Warranty |
3years |
Color |
Black |
Terminal |
Lead Terminal |
Voltage |
12 Volt |
Material |
High Pure Lead |
OEM/ODM |
Acceptable |
Product Anvantages
●The 12V 7Ah Lead Acid Battery is very popular for deep discharge and high frequency charge/discharge cycling systems. It has a longer service life than higher capacity lead acid batteries and is smaller and more portable. It will not expand in normal use and is safer.
●The discharge voltage is stable and has basically no effect on the normal operation of the equipment. It is more protective for electrical appliances and has a very wide range of application. The battery has a very low internal resistance and its own consumption is low, giving it a longer life span. The float-charged design has a life of 8-10 years and will last longer in a dry and ventilated environment.
●The 12V 7Ah battery is basically maintenance-free. Most of the oxygen produced during charging and discharging is reduced to electrolyte by the electrode plates, with minimal loss of electrolyte, which is the fundamental reason for the number of battery cycles. It prevents the battery from expanding and breaking due to overcharging. The electrolyte is essentially in a non-flowing state inside the battery and can be used normally even if it is inverted on its side.
Battery Structure Diagram
Constant-current Discharge Parameter Unit: A (25°C)
F.V/Time |
10min |
15min |
20min |
30min |
45min |
1h |
3h |
5h |
10h |
20h |
1.80V/cell |
14.04 |
10.93 |
9.29 |
7.17 |
5.21 |
4.22 |
1.88 |
1.24 |
0.70 |
0.375 |
1.75V/cell |
15.43 |
12.00 |
9.99 |
7.44 |
5.40 |
4.43 |
1.92 |
1.28 |
0.72 |
0.379 |
1.70V/cell |
16.82 |
12.75 |
10.50 |
7.75 |
5.61 |
4.56 |
1.96 |
1.31 |
0.73 |
0.386 |
1.65V/cell |
18.11 |
13.61 |
11.14 |
8.18 |
5.75 |
4.66 |
2.05 |
1.34 |
0.75 |
0.391 |
1.60V/cell |
19.71 |
14.57 |
11.89 |
8.63 |
6.00 |
4.71 |
2.11 |
1.39 |
0.75 |
0.393 |
Constant-current Discharge Parameter Unit: W (25°C)
F.V/Time |
10min |
15min |
20min |
30min |
45min |
1h |
3h |
5h |
10h |
20h |
1.80V/cell |
14.04 |
10.93 |
9.29 |
7.17 |
5.21 |
4.22 |
1.88 |
1.24 |
0.70 |
0.375 |
1.75V/cell |
15.43 |
12.00 |
9.99 |
7.44 |
5.40 |
4.43 |
1.92 |
1.28 |
0.72 |
0.379 |
1.70V/cell |
16.82 |
12.75 |
10.50 |
7.75 |
5.61 |
4.56 |
1.96 |
1.31 |
0.73 |
0.386 |
1.65V/cell |
18.11 |
13.61 |
11.14 |
8.18 |
5.75 |
4.66 |
2.05 |
1.34 |
0.75 |
0.391 |
1.60V/cell |
19.71 |
14.57 |
11.89 |
8.63 |
6.00 |
4.71 |
2.11 |
1.39 |
0.75 |
0.393 |
Factory
Applications
The 12V 7Ah Lead Acid Battery is more suitable for small electrical appliances, children's electric cars, electronic scales, small medical equipment, etc. The battery is factory charged and can be used directly. It should be used away from direct sunlight and heat sources to ensure its safe working temperature (-15 ~ 50°C).
The exterior of the battery should be kept clean and dry and the battery should be charged at room temperature. If leakage occurs it should be dealt with promptly and treated as hazardous waste for special treatment. The electrolyte is very corrosive and a small amount of inadvertent contact with the skin needs to be washed with plenty of water, if a large amount comes into contact with the skin or accidentally gets into the eyes you should seek medical attention.
