12V 200Ah Gel Battery
video
12V 200Ah Gel Battery

12V 200Ah Gel Battery

Brand Name: Jingsun
Model Number:6-JFM(G)-200
Battery Specification:Gel 12V 200Ah
Products Description

Place of Origin

Anhui, China

Battery Type

Gel Battery

Size

522*240*223mm

Warranty

3years

Color

Black or White

Voltage

12 Volt

Rated Capacity

200Ah

Material

High Pure Lead

OEM/ODM

Acceptable



Product Advantages

●Colloidal battery belongs to a new type of lead-acid battery, the method is to add gelling agent to the sulphuric acid, so that the sulphuric acid electrolyte becomes colloidal. A battery with a gelled electrolyte is usually called a colloidal battery. The difference between colloidal batteries and conventional lead-acid batteries lies in the further development from the initial understanding of the gelling of the electrolyte to a gelled electrolyte and the promotion of the application in the plate grid and active substance.

●The 200Ah Gel Battery has a lower industrial cost than conventional lead-acid batteries. It is heavier, has a higher capacity, loses very little water during use, is maintenance-free and is highly resistant to vibration. It has better high current discharge performance, high low temperature stability and is also greener. The service life is about twice as long as that of conventional lead-acid batteries.



Battery Structure Diagram

200ah gel battery internal structure

gel 200ah battery size



200ah 12v gel battery parameter



Constant-current Discharge Parameter Unit: A (25°C)

F.V/Time

20min

30min

1h

2h

3h

5h

8h

10h

20h

1.80V/cell

212.97

163.08

102.86

63.96

48.24

33.85

23.30

20.00

10.99

1.75V/cell

239.34

179.34

110.11

67.80

50.99

35.16

24.07

20.44

11.21

1.70V/cell

257.80

192.09

116.48

71.87

53.08

36.26

24.73

20.88

11.32

1.65V/cell

268.35

199.56

120.88

73.74

54.84

37.03

25.16

21.21

11.43

1.60V/cell

290.77

213.63

128.35

76.70

57.03

38.13

25.60

21.54

11.65



Constant-current Discharge Parameter Unit: W (25°C)

F.V/Time

20min

30min

1h

2h

3h

5h

8h

10h

20h

1.80V/cell

402.31

311.32

199.23

124.51

94.29

66.59

46.15

39.89

21.87

1.75V/cell

447.14

339.23

212.20

131.43

99.34

68.90

47.58

40.66

22.31

1.70V/cell

476.37

360.22

223.19

138.68

103.19

70.88

48.90

41.54

22.53

1.65V/cell

490.33

370.33

230.33

141.54

105.93

72.20

49.56

41.98

22.75

1.60V/cell

525.38

392.64

243.19

146.59

109.67

74.18

50.33

42.75

23.08





product-531-60





Gel Battery Specification

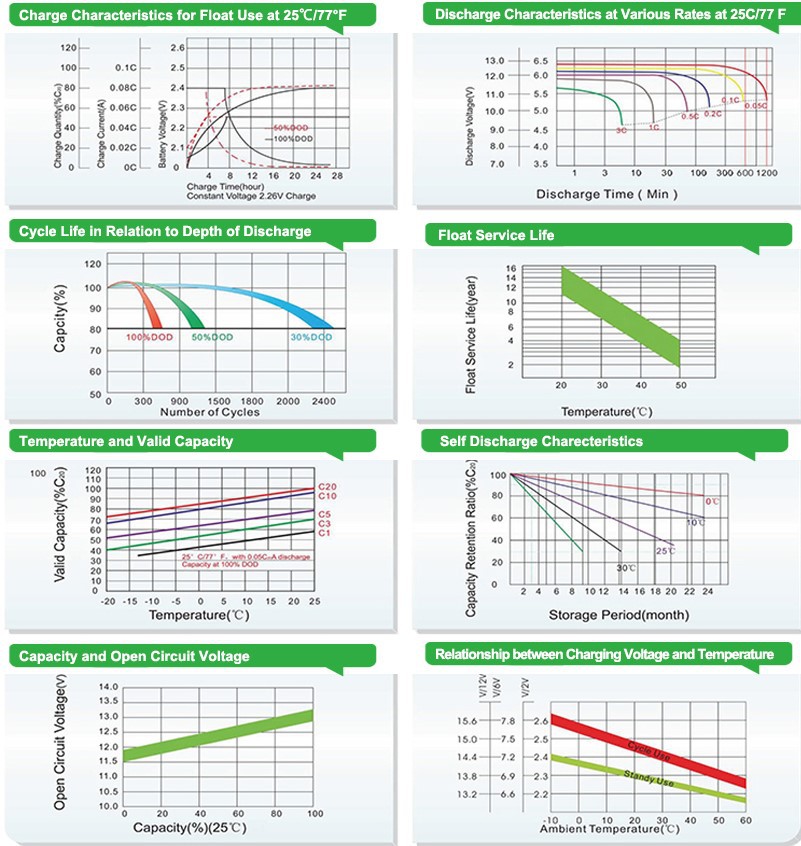

12v 200ah gel deep cycle battery test



Certifactions

Our batteries are internationally certified and our products are tested and certified to ensure that our factory products are safe to use.

Certifactions

Applications

●The gel battery is an advanced rechargeable battery with many advantages over traditional forms such as lead-acid batteries. Characterised by their hermetically sealed, flame retardant and often spill-proof polymer design, gel batteries are popular in a variety of applications due to their long life, balance, safety and eco-friendliness. Examples include solar power, emergency lighting and electric vehicles.

●The polymer used to make the gel battery is a non-toxic gel that can operate in almost any geographical location or weather condition. Such batteries are resistant to temperature, shock, vibration and other extreme conditions. In terms of safety, there are virtually no problems with gel batteries. It is non-flammable and almost always non-combustible, making it ideal for a wide range of applications.

●Compared to lead-acid batteries, colloidal batteries typically have a longer service life. They are more able to withstand multiple charge and discharge cycles and retain their full capacity for a longer period of time. Colloidal batteries are highly stable, which makes them ideal for electronic or industrial applications. In addition, they require less maintenance than other rechargeable batteries.

●Gel batteries are becoming increasingly popular in a variety of applications, especially those requiring excellent performance and great durability. With their better safety, longer life and balanced operation, gel batteries are an excellent choice for most applications.

200ah 12v gel battery
solar gel battery 12v 200ah



FAQ

Q:How do I choose a charger for my 12V 200Ah Gel Battery?

A:For use in off-grid solar systems, a voltage and current matched controller is required. If you are charging directly from the mains, you will need to use a mains charger with a voltage and current match.

Q:Is a Gel Battery also a lead-acid battery?

A:Yes, the Gel Battery is a type of lead-acid battery that differs from conventional lead-acid batteries in that its electrolyte is in a gel state. It is well sealed so there is no need to worry about leakage and it lasts longer.

Q:Can I connect different battery types together?

A:No, it is not recommended. Using different battery types together will affect the efficiency of the batteries and will also affect the life of the batteries.
