Gel Solar Battery 12V 100Ah
video
Gel Solar Battery 12V 100Ah

Gel Solar Battery 12V 100Ah

Brand Name: Jingsun
Model Number:6-JFM(G)-100
Battery Specification:Gel 12V 100Ah
Products Description

Place of Origin

Anhui, China

Battery Type

Gel Battery

Size

330x173x217/222mm

Warranty

3years

Color

Black white Solar Batteries

Voltage

12 Volt

Rated Capacity

100Ah

Terminal

Lead Terminal

Certification

CE,TUV,ISO

OEM/ODM

Acceptable



Product Advantages

●GEL solar cells support long time discharge and the special electrode plate design makes their service life longer than traditional lead-acid batteries. It is an improvement on the traditional lead-acid battery, whose electrolyte is in the form of a gel, so there is almost no leakage.

●The GEL battery has a larger electrolyte capacity and greater thermal capacity in the same volume, with uniform concentration, no electrolyte stratification and better heat dissipation.

●Jingsun solar GEL batteries have better self-discharge performance and more outstanding resistance to sulphation in the case of severe power shortage. Strong recovery ability from deep discharge and better resistance to overcharging.

●Adapt to a wider range of environmental temperatures, in the range of -40 ℃ ~ 60 ℃ can be used. It also has excellent performance in low temperature and alpine areas, has certain anti-vibration performance, and can adapt to various harsh environments. It is not restricted by space location and can be placed in any orientation.

●Simple and easy to use, excellent consistency of internal resistance, capacity and float voltage of the single cell. It can adapt to different voltages for charging and does not require special maintenance, and is better used with Jingsun solar systems.

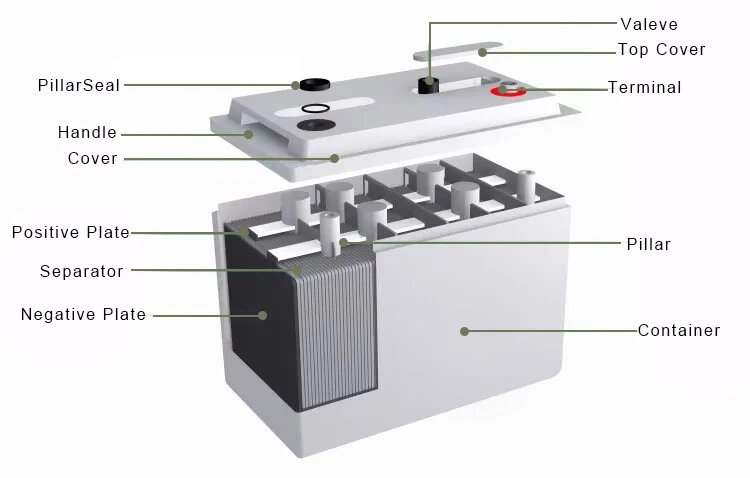

12v 100ah gel battery internal structure

internal structure size

100ah 12v gel battery parameter



Constant-current Discharge Parameter Unit: A (25°C)

F.V/Time

20min

30min

1h

2h

3h

5h

8h

10h

20h

1.80V/cell

109.49

83.84

52.88

32.88

24.86

17.40

11.64

10.00

5.42

1.75V/cell

123.05

92.20

56.61

34.92

26.21

18.08

11.98

10.17

5.54

1.70V/cell

132.54

98.76

59.89

36.95

27.34

18.64

12.32

10.43

5.60

1.65V/cell

137.97

102.60

62.15

37.97

28.14

18.98

12.54

10.55

5.66

1.60V/cell

149.49

109.83

65.99

39.44

29.27

19.66

12.77

10.77

5.74



Constant-current Discharge Parameter Unit: W (25°C)

F.V/Time

20min

30min

1h

2h

3h

5h

8h

10h

20h

1.80V/cell

206.78

160.00

102.49

63.95

48.47

34.24

23.05

19.89

10.81

1.75V/cell

229.83

174.46

109.04

67.57

51.07

35.48

23.73

20.23

11.02

1.70V/cell

244.97

185.20

114.80

71.30

52.99

36.50

24.41

20.68

11.14

1.65V/cell

252.09

190.40

118.42

72.77

54.46

37.06

24.75

20.90

11.24

1.60V/cell

270.17

201.92

125.08

75.37

56.38

38.19

25.08

21.36

11.41





product-531-60

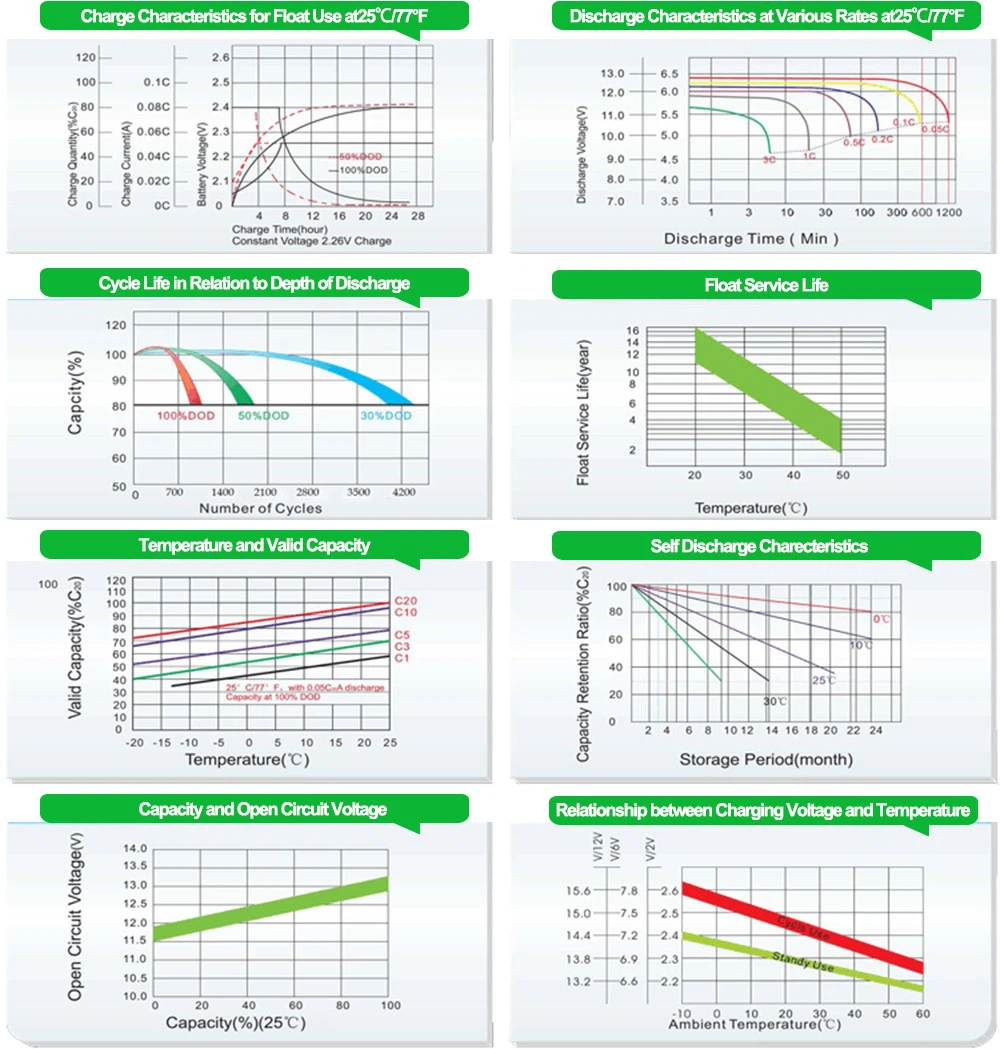

deep cycle gel battery 12v 100ah



Applications

●12V gel batteries can be used in a variety of systems, power generation systems, communication systems, EPS and UPS systems. Power plant transmission systems, solar systems, wind energy systems, switches, microwave stations, mobile base stations, data centres, radio and broadcasting stations, etc.

●It is important to maintain good usage habits. For example, maintain a clean and dry working environment for the battery. You can wipe the surface of the battery with natural soda water and prohibit the use of organic solvents such as petrol and alcohol. Although colloidal batteries can adapt to various harsh environments, good usage habits can greatly extend the life of the battery to its design life.

●For batteries at the end of their useful life, they can be resold to a colloidal battery recycling plant for recycling. The colloidal electrolyte can be degraded into silica paste and lead paste, with the silica recycled and the lead paste made into raw lead. This not only recycles resources but also does not cause more pollution to the environment.

deep cycle gel battery 12v 100ah
deep cycle gel battery 12v 100ah for solar system
FAQ

Q:What are the disadvantages of the 12V 100Ah Gel Battery?

A:Gel batteries require proper ventilation as gases are released due to the build up of pressure. Not as sensitive to overcharging as AGM batteries and more expensive than AGM batteries.

Q:What are the disadvantages of the 12V 100Ah Gel Battery?

A:Gel batteries require proper ventilation as gases are released due to the build up of pressure. Not as sensitive to overcharging as AGM batteries and more expensive than AGM batteries.

Q:On what criteria are the prices of your batteries set?

A:The price of a battery is based on voltage, capacity, size, operating current, maximum discharge current, purpose of use, any special requirements, etc. You can contact Jingsun and, depending on your requirements, we will give you a very favourable quotation.
