Product Description
- Pure Sine Wave Output: The Pure Sine Wave Inverter provides a high-quality AC output that mimics the wave shape of utility power. This results in better, cleaner power for sensitive electronics and reduces the likelihood of equipment damage.
- High-Quality MOS\IGBT: The inverter uses a high-quality MOS\IGBT which is original equipment manufactured in Europe and America. This component provides superior performance and reliability over traditional power transistors.
- Intelligent Silent Cooling Fan: The inverter includes a smart, silent fan that operates only when needed, reducing noise pollution and extending the life of the fan.
- Long Life Expectancy: The Pure Sine Wave Inverter is designed with high-quality components and built to last. Its robust design ensures a long life expectancy and reliable performance, making it an excellent investment for your power needs.
Products Specification
|
Rated Power |
300W |
500W |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
8000W |
|
Surge Power |
600W |
1000W |
2000W |
3000W |
4000W |
6000W |
8000W |
10000W |
12000W |
16000W |
|
Input Voltage |
12/24/48VDC |
24/48VDC |
||||||||
|
Output Voltage |
110/220VAC±5% |
|||||||||
|
USB Port |
5V 2A |
|||||||||
|
Frequency |
50Hz±3 or 60Hz±3 |
|||||||||
|
Output Waveform |
Pure Sine Wave |
|||||||||
|
Soft Start |
YES |
|||||||||
|
THD/AC Regulation |
THD＜3%(Linear Load) |
|||||||||
|
Output Efficiency |
94%MAX |
|||||||||
|
Cooling Way |
Intelligent Cooling Fan |
|||||||||
|
Protection |
Battery Low Voltage& Over Voltage, Over Load, Over Temperature, Short Circuit |
|||||||||
|
Working Temperature |
-10℃-+50℃ |
|||||||||
Dimensions and Packaging
|
Rated Power |
300W |
500W |
1000W |
1500W |
2000W |
|
Dimension(L*W*H)(cm) |
20*11.2*6 |
21.5*15*7.8 |
27.8*17*10.5 |
38.1*17*10.5 |
38.1*17*10.5 |
|
Meas./Ctn(L*W*H)(cm) |
54.5*49*32.5/18pcs |
76*45*28/10pcs |
53.5*47*40.7/6pcs |
47.5*47*36.5/4pcs |
47.5*47*36.5/4pcs |
|
N.W./Unit(kg) |
0.82kg |
1.7kg |
2.74kg |
4kg |
4kg |
|
G.W./Ctn |
20kg |
22.5kg |
20.5kg |
21.6kg |
21.6kg |
|
Packing |
Carton |
||||
|
Warranty |
2Years |
||||
|
Rated Power |
3000W |
4000W |
5000W |
6000W |
8000W |
|
Dimension(L*W*H)(cm) |
48*19.9*8.4 |
44*20*15 |
51*20*15 |
61*20*15 |
61*20*15 |
|
Meas./Ctn(L*W*H)(cm) |
62.5*53*29.5/4pcs |
63.5*30.8*24/1pcs |
63.5*30.8*24/1pcs |
73.5*30.8*24/1pcs |
73.5*30.8*24/1pcs |
|
N.W./Unit(kg) |
6.1kg |
9kg |
10.12kg |
11.62kg |
13.14kg |
|
G.W./Ctn |
30.44kg |
10.84kg |
11.72kg |
13.44kg |
14.96kg |
|
Packing |
Carton |
Honey comb carton |
|||
|
Warranty |
2Years |
||||
Products Display
500w Intelligent Color Display With USB

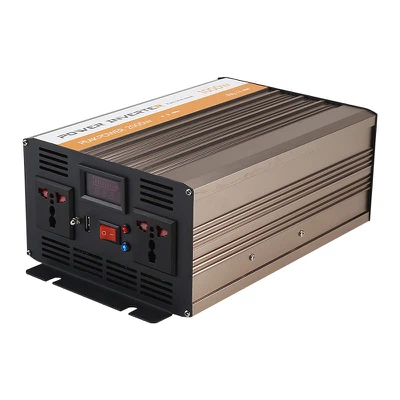

1000WLED Display

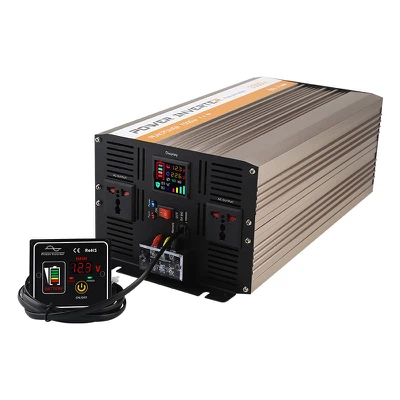

2000w Intelligent Color Display
With External Remote Control
2500w Intelligent Color Display
With External Remote Control

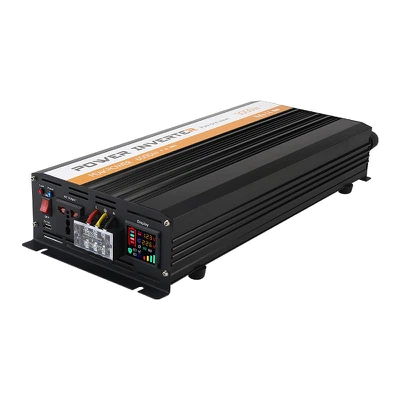

3000W intelligent color display
with USB
3500W intelligent color display
with external remote control

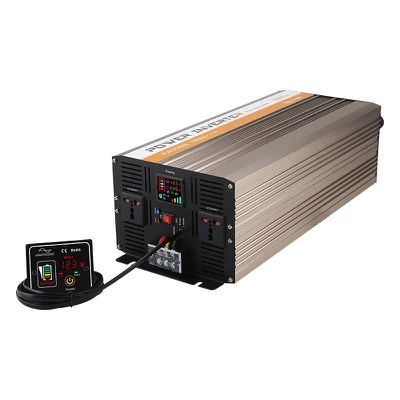

4000W Intelligent Color Display
With External Remote Control

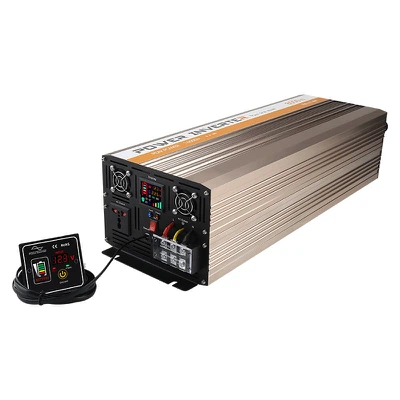

5000W Intelligent Color Display
With External Remote Control

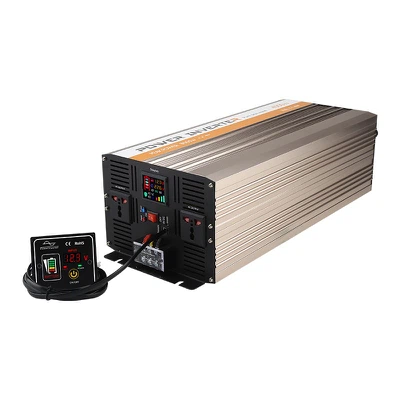

6000W Intelligent Color Display
With External Remote Control
8000W Intelligent Color Display
With External Remote Control
Applications
Pure sine wave inverters are used in a wide range of applications to provide high quality AC power.
Pure sine wave solar inverters are also very efficient, converting most of the energy from solar panels into usable electricity. This means they can help reduce energy costs for homes, businesses and communities that rely on solar power.
The use of pure sine wave solar inverters has had a significant impact on the solar industry, allowing solar panels to produce a reliable and stable supply of electricity. With their efficient power output, durability and practicality in remote areas, these inverters will continue to play a key role in powering homes, businesses and communities in the future.
FAQ
Q: How to choose the right inverter?
Q: Can I connect more than one appliance to the same inverter?
Q: What is the role of the inverter?
