Products Description

High Efficiency: The 8000W Pure Sine Wave Inverter is highly efficient, converting DC power into AC power with minimal power loss during the conversion process. This translates into lower energy bills and longer run times for your devices.
Clean Power: The pure sine wave output of this inverter ensures that your devices receive clean power without any distortion or interference, which is crucial for sensitive electronics like medical equipment, audio equipment, and computers.

8000w pure sine wave power inverter details

High Power Capabilities: With an output of 8000W, this inverter is capable of powering a wide range of devices, including power tools, RV appliances, and even small household appliances during power outages.
Durable and Reliable: The 8000W Pure Sine Wave Inverter is built to last, with high-quality components and a durable construction that can withstand tough conditions, including harsh weather and high usage.
Multiple Protection Features: This inverter comes equipped with multiple protection features, including overload protection, short-circuit protection, over-temperature protection, and low voltage shutdown, which ensures the safety of your devices and the inverter itself.

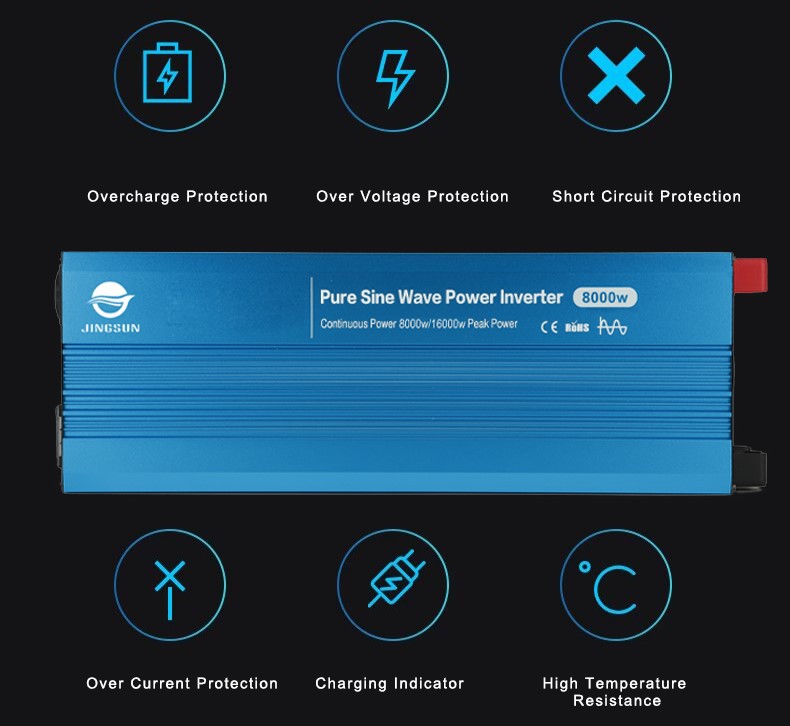

Protection function of 8000w pure sine wave power inverter

Products Specification

Rated Power	3000W	3500W	4000W	5000W	6000W	8000W
Surge Power	6000W	7000W	8000W	10000W	12000W	16000W
Input Voltage	12VDC/24VDC/48VDC
Output Voltage	110VAC±5%/220VAC±5%
USB Port	5V 1000MA
Frequency	50HZ±3 or 60HZ±3
Output Waveform	Pure Sine Wave
Soft Start	YES
THD/AC Regulation	THD＜3%(Linear Load)
Output Efficiency	94.2% MAX
No Load Current	1.8A/0.9A/0.5A	2A/1A/0.4A	2.2A/1.1A/0.5A	2.6A/1.3A/0.6A	2.8A/1.4A/0.8A	3A/1.6A/0.9A
DC Voltage Range	10V-15.5V/21.5V-28V/41.5V-59.5V
Low Voltage Alarm	10.5±0.5V/21±0.5V/42±1V
low Voltage Shut Down	10±0.5V/20±0.5V/40±1V
Low Voltage Recovery	13±0.5V/24±0.5V/48±1V
Over Voltage Shut Down	15.5±0.5V/31±0.5V/61±1V
Over Voltage Recovery	14.8±0.5V/29±0.5V/59±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	（-10℃+60℃ Civil class，-25℃+60℃ technical grade，-40℃+70℃ army grade）
Storage Temperature	（-30℃ - 70℃）
Humidity	90% MAX，Non-condensing
Warranty	2 Years
Net Dimension(mm)	48019984	510200150	510200150	510200150	610200150	610200150
Package Dimension(mm)	608260147	635308240	635308240	635308240	735308240	735308240
N.W./Unit/G.W./Unit	6.1kg/7.135kg	8.92kg/10.7kg	9.04kg/10.84kg	10.12kg/11.72kg	11.62kg/13.44kg	13.14kg/14.96kg
Ctn	4PCS	1PCS	1PCS	1PCS	1PCS	1PCS
Meas./Ctn（mm）	625530295	635308240	635308240	635308240	735308240	735308240
G.W./Ctn	30.44kg	10.7kg	10.84kg	11.72kg	13.44kg	14.96kg

Multi-Country Socket Optional/Support Customization

Product Display

3000 Watt Pure Sine Wave Inverter

The 3000Watt inverter has multiple protection features, including over-voltage, under-voltage, and over-temperature protection, ensuring the safety of your appliances and the inverter itself.

4000 Watt Pure Sine Wave Inverter

The inverter comes with user-friendly features, such as an LCD display that shows you the input voltage, output voltage, and current output, making it easy to monitor how much power you're using. Additionally, it has a remote control that allows you to turn it on or off from a distance.

5000 Watt Pure Sine Wave Inverter

The Inverter is designed to provide a reliable and efficient power supply for a variety of electronic devices, appliances, and equipment. It delivers high-quality power that is safe for sensitive devices such as computers, laptops, and medical equipment.

6000 Watt Pure Sine Wave Inverter

The inverter is easy to install and operate, even for those who are not familiar with electrical equipment. It comes with a user manual and intuitive control panel that makes it easy to adjust settings and monitor the system's performance.

Applications

Industrial Equipment
Many industrial applications require high-quality power supplies to operate machinery and equipment. Pure sine wave inverters can provide the stable and consistent power required to ensure efficient and reliable operation of industrial equipment.

Solar Power Systems
In a solar power system, Pure Sine Wave Inverters are used to convert the DC power produced by solar panels into AC power that can be used to power homes and businesses. The use of a Pure Sine Wave Inverter reduces the risk of damage to sensitive equipment and ensures efficiency in energy production.

FAQ

Q: How many appliances can a 3000W pure sine wave inverter power?

A: How many appliances a 3000W pure sine wave inverter can power depends on the wattage of each appliance. Generally speaking, a 3000W inverter can power a variety of small appliances such as lights, fans, and small kitchen appliances, but it may not be enough to power large appliances such as air conditioners and refrigerators at the same time.

Q: Can a pure sine wave inverter be used with a solar panel system?

A: Yes, a pure sine wave inverter is an important component of a solar panel system as it is required to convert the DC power generated by the solar panels into AC power that can be used in the home. A pure sine wave inverter is necessary to ensure that the power provided is of high quality and safe for use with household appliances.

Q: How long will a 8000W pure sine wave inverter last?

A: The lifespan of a 8000W pure sine wave inverter will depend on a number of factors including the quality of the inverter, the conditions under which it is used, and the level of maintenance it receives. In general, a high-quality pure sine wave inverter can last for several years or more with proper care and maintenance.
