Products Description
- Versatility: The 2000W inverter with battery charger is a versatile device that provides the power needed to run various AC-powered devices, including laptops, TVs, and refrigerators, among others.
- Portability: With a compact and lightweight design, this inverter can be easily carried around, making it ideal for use during outdoor activities such as camping, picnics, and road trips, etc.
- Dual Functionality: This inverter not only converts DC power from the battery to AC, but it also charges the battery, reducing the need for multiple devices.
- High Efficiency: The advanced circuitry used in the design of this inverter ensures high efficiency, which increases the battery life and reduces the operating costs.
- Safety: The inverter with battery charger comes with multiple safety features, including short-circuit protection, overload protection, and over-voltage protection, among others, ensuring safe operation.
Products Specification
|
Rated Power |
500W |
600W |
1000W |
1500W |
2000W |
|
Surge Power |
1000W |
1200W |
2000W |
3000W |
4000W |
|
Input Voltage |
12VDC/24VDC/48VDC |
||||
|
Output Voltage |
110VAC±5%/220VAC±5% |
||||
|
Switching Mode |
City Power Priority |
||||
|
Switching Time |
≤10ms |
||||
|
Charging Current |
20A/10A/5A |
||||
|
Charging Mode |
Three Stage Charging Mode |
||||
|
Input Voltage Range |
110VAC±5%/220VAC±5% |
||||
|
USB Port |
5V 1000MA |
||||
|
Frequency |
50HZ±3 or 60HZ±3 |
||||
|
Output Waveform |
Pure Sine Wave |
||||
|
Soft Start |
YES |
||||
|
THD/AC Regulation |
THD＜3%(Linear Load) |
||||
|
Output Effciency |
94.2% MAX |
||||
|
No Load Current |
0.8A/0.6A/0.3A |
0.8A/0.6A/0.3A |
0.8A/0.4A/0.2A |
1.2A/0.6A/0.3A |
1.2A/0.6A/0.3A |
|
DC Voltage Range |
10V-15.5V/21.5V-28V/41.5V-59.5V |
||||
|
Low Voltage Alarm |
10.5±0.5V/21±0.5V/42±1V |
||||
|
Low Voltage Shut Down |
10±0.5V/20±0.5V/40±1V |
||||
|
Low Voltage Recovery |
13±0.5V/24±0.5V/48±1V |
||||
|
Over Voltage Shut Down |
15.5±0.5V/31±0.5V/61±1V |
||||
|
Over Voltage Recovery |
14.8±0.5V/29±0.5V/59±1V |
||||
|
Cooling Way |
Intelligent Cooling Fan |
||||
|
Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit |
||||
|
Working Temperature |
（-10℃+60℃ Civil class，-25℃+60℃ technical grade，-40℃+70℃ army grade） |
||||
|
Storage Temperature |
（-30℃ - 70℃） |
||||
|
Humidity |
90% MAX，Non-condensing |
||||
|
Warranty |
2 Years |
||||
|
Net Dimension(mm) |
365*165*90 |
365*165*90 |
400*165*90 |
435*165*113 |
435*165*113 |
|
Package Dimension(mm) |
475*225*150 |
475*225*150 |
535*220*140 |
550*225*175 |
550*225*175 |
|
N.W./Unit/G.W./Unit |
2.8kg/3.24kg |
2.8kg/3.24kg |
3.62kg/4.06kg |
5.04kg/5.92kg |
5.04kg/5.92kg |
|
Ctn |
4PCS |
4PCS |
4PCS |
4PCS |
4PCS |
|
Meas./Ctn(mm) |
495*480*315 |
495*480*315 |
550*475*315 |
570*470*385 |
570*470*385 |
|
G.W./Ctn |
13.76kg |
13.76kg |
17.26kg |
25kg |
25kg |
Product Display
500W Inverter With Battery Charger
The 500-watt inverter with a battery charger is highly portable, making it easy to carry and use wherever you need it. You can use it in your car, RV, boat, or as a backup power source for your home.
1000W Inverter With Battery Charger
Most 1000W inverters with battery chargers are easy to install and use, even for people without electrical expertise. They come with user-friendly manuals and guides that provide step-by-step instructions on how to set them up and operate them.
Applications

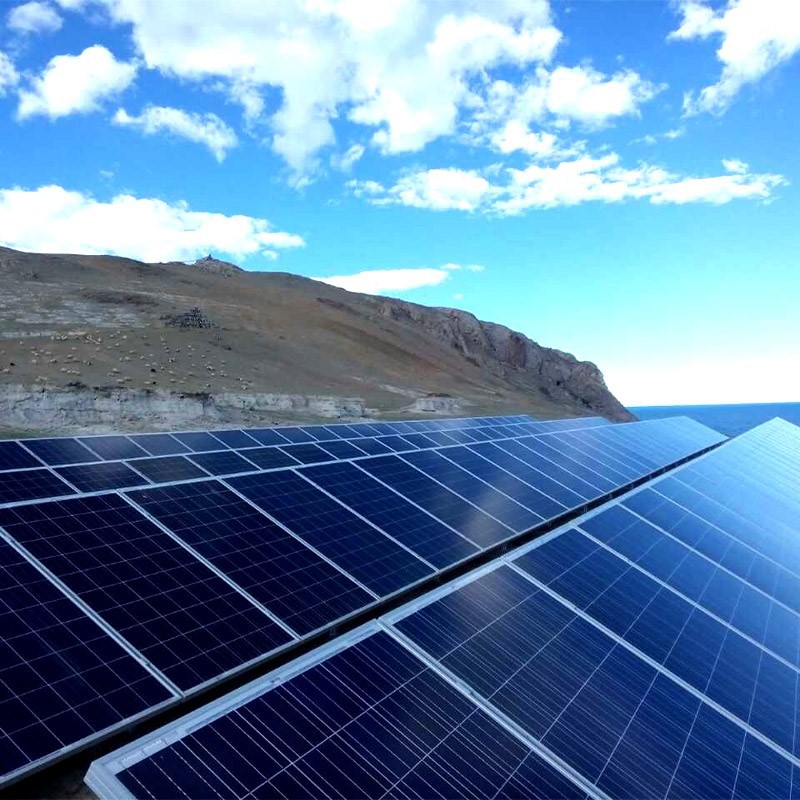

Inverter with battery charger is crucial in off-grid power systems. The battery charger charges the batteries using solar panels, wind turbines or other renewable sources, and the inverter converts the DC power from the batteries to usable AC power for powering homes or businesses.
Inverter with battery charger is useful in remote industrial applications such as oil rigs, construction sites, and mining operations. The battery charger charges the batteries, and the inverter converts the DC power from the batteries to AC power for running essential equipment and tools. Overall, inverter with battery charger is versatile and can be used in various applications that require reliable and uninterrupted power supply.
FAQ
Q: What is an inverter with a battery charger?
Q: What types of batteries can be used with an inverter with a battery charger?
Q: Can an inverter with a battery charger be used for off-grid living?
