Jingsun 750W Solar Panel: Higher Efficiency and Lower LCOE for Modern Solar Projects

With the rapid advancement of global photovoltaic technology, high-power and high-efficiency solar panels have become the mainstream trend of the industry.
Adopting advanced N-type TOPCon technology, Jingsun New Energy launches the 750W series solar panels, achieving comprehensive breakthroughs in power density, power generation performance and reliability, and providing more cost-effective solutions for various photovoltaic projects.

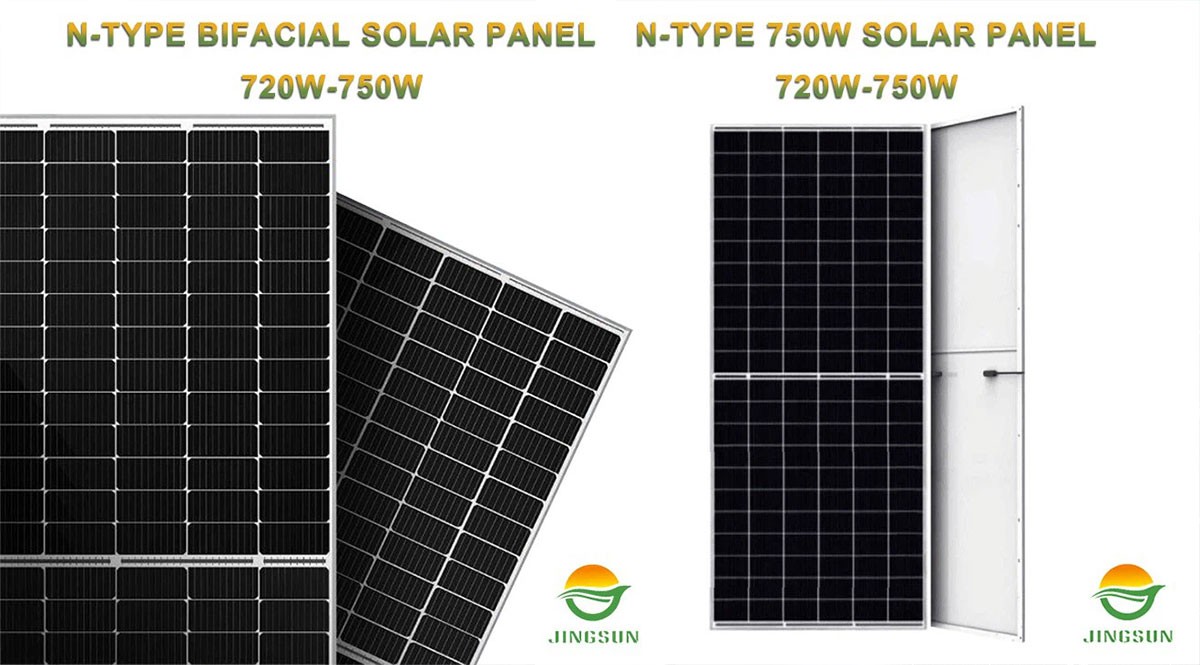

Jingsun 750W solar panel adopts 210mm large-size N-type half-cut cell technology, available in single-glass (JAM132S720-750N) and dual-glass bifacial (JAM132D720-750N) versions. Its power ranges from 720W to 750W, with a maximum conversion efficiency up to 24.1%, ranking at the leading level of the industry.

Core Technical Parameters

Core Product Advantages

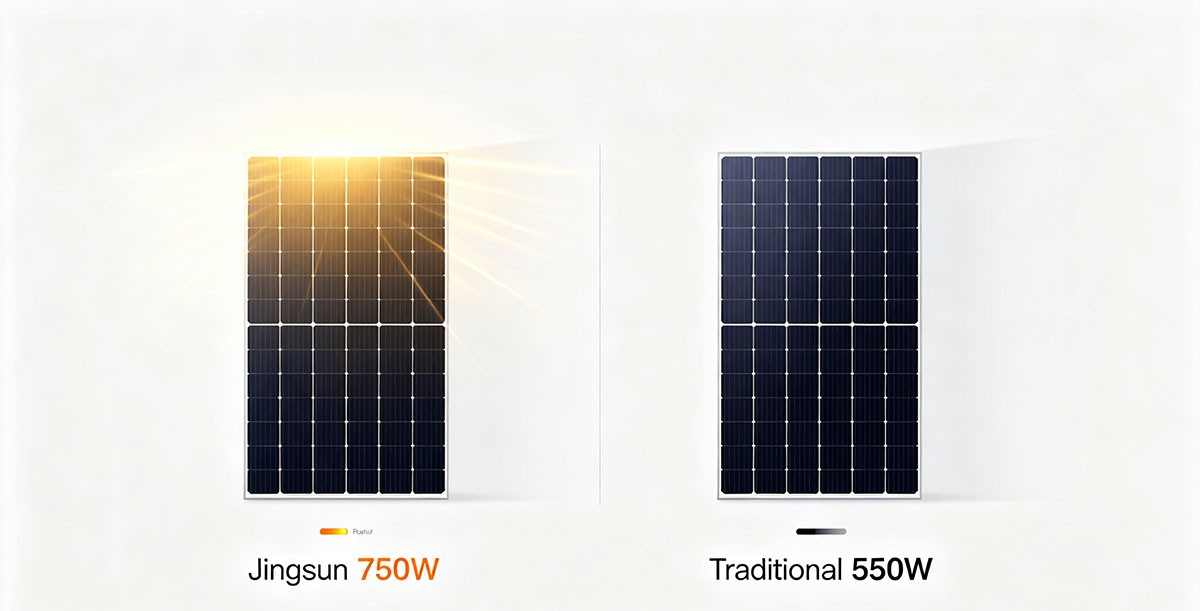

Ultra-high Power Density: Compared with traditional 550W panels, it delivers about 36% more power output with the same floor area, greatly saving land and roof space.


Excellent Temperature Resistance: With a low temperature coefficient of -0.28%/℃, it maintains high power generation efficiency even under high temperature, perfectly suitable for tropical and subtropical regions.


Superior Low-light Performance: Adopting N-type cell technology and multi-busbar design, it generates power efficiently in weak light conditions such as early morning, evening and cloudy days.


Bifacial Power Generation Gain: The dual-glass version features a bifaciality of 70±10%, delivering an extra 10%-25% power generation when installed on reflective surfaces like white rooftops, sand land and snow ground.


High Reliability Structure: Equipped with IP68 junction box, corrosion-resistant aluminum alloy frame and high-strength tempered glass, it can withstand strong wind, hail, salt fog and other harsh environmental conditions.


Lower System Cost: High power output reduces the quantity of panels, brackets, cables and installation labor, effectively lowering BOS cost and LCOE of the whole system.


At present, mainstream 750W-grade solar panels in the market all adopt N-type TOPCon technology. Jingsun products are comparable with top-tier brands in core performance indicators, and own unique advantages in multiple aspects.

Core Parameter Comparison of Mainstream 750W Panels

Differentiated Advantages of Jingsun Panels

Higher Conversion Efficiency: The maximum efficiency of Jingsun 750W panel reaches 24.1%, higher than most similar products in the market, producing more power within the same area.


Standardized Size Design: Adopts industry standard 2384×1303mm size, fully compatible with mainstream brackets and tracking systems, convenient for project design and installation.


Diversified Product Selection: Single-glass and dual-glass versions are available to meet demands of different scenarios. The single-glass version is lighter for rooftops with limited bearing capacity; the dual-glass version features better durability and bifacial power generation for ground power stations and harsh environments.


Cost-competitive Pricing: As a leading Chinese PV manufacturer, Jingsun supports competitive pricing via large-scale production and mature supply chain, helping clients cut initial investment.


Global After-sales Service: Jingsun has warehouses and service centers across the globe, supporting fast delivery and professional technical support to ensure smooth project operation.


Featured with high power, high efficiency and high reliability, Jingsun 750W solar panel is applicable to a wide range of PV scenarios:


3.1 Industrial & Commercial Rooftop PV

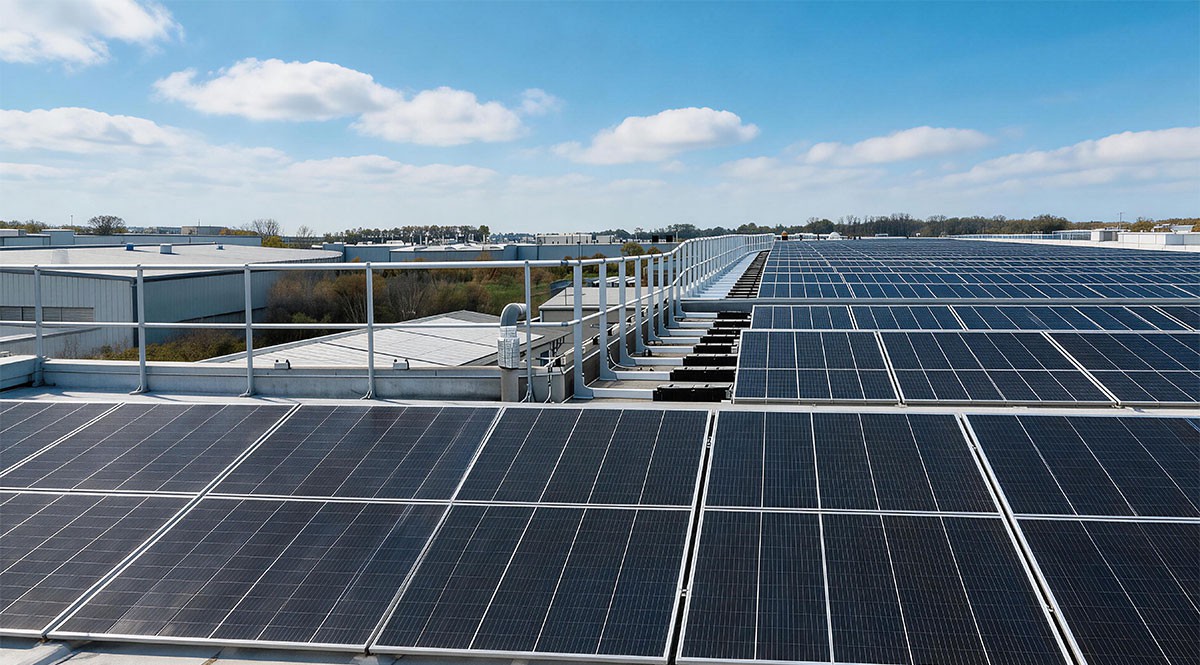

Industrial and commercial buildings usually have large flat rooftops, ideal for PV installation. The high power density of Jingsun 750W panels maximizes power generation within limited rooftop space, helping enterprises cut electricity costs and realize energy self-sufficiency.Applicable Sites: Factory workshops, logistics warehouses, commercial centers, office buildings


3.2 Large-scale Ground PV Power Station

In areas with abundant land resources, large ground PV stations are an effective way to utilize solar energy on a large scale. Jingsun 750W panels greatly reduce land occupation, bracket consumption and construction cost, improving overall project economic benefits.Applicable Sites: Gobi, desert, mountain land, wasteland


3.3 Agri-PV Complementary Project

Agri-PV mode integrates photovoltaic power generation with agricultural planting to realize dual benefits of power generation and crop cultivation. The elevated installation of Jingsun 750W panels reserves sufficient space and light for crop growth below.Applicable Sites: Farmland, tea garden, orchard, vegetable greenhouse


3.4 Fishery-PV Complementary Project

Fishery-PV projects build PV stations over fish ponds and reservoirs, occupying no cultivated land while providing shading for aquaculture and reducing water evaporation. Jingsun 750W dual-glass panels feature excellent waterproof and corrosion resistance, perfectly suitable for water environment.Applicable Sites: Fish pond, reservoir, lake


3.5 Off-grid & Micro-grid System

In remote areas without full grid coverage or unstable power supply, Jingsun 750W panels can be matched with energy storage systems to build off-grid or micro-grid systems, supplying stable power for residents and enterprises.Applicable Sites: Remote mountainous areas, islands, border outposts, communication base stations


4.1 Installation Guidelines

Evaluate the bearing capacity of rooftop and bracket structure before installation to bear the load of panels, brackets, wind and snow.

System design shall comply with local electrical codes, adopting qualified inverters, cables and connectors with reliable grounding.

In the Northern Hemisphere, install panels facing due south with an inclination close to local latitude for optimal power generation.

Avoid shelter from trees and buildings; even partial shelter will greatly affect power output.

Professional qualified installation team is recommended for safe and standard construction.


4.2 Warranty Policy

Jingsun 750W solar panel enjoys 15-year product warranty and 30-year linear power warranty:

Product Warranty: Free maintenance or replacement within 15 years for defects caused by raw materials and production process.

Power Warranty: Power attenuation ≤2% in the first year, annual attenuation ≤0.4% afterwards, remaining power output ≥87.4% of nominal power after 30 years.


4.3 International Certifications

Jingsun 750W solar panel has obtained multiple authoritative international certifications:IEC 61215, IEC 61730, CE, TÜV, ETL, INMETRO


4.4 Industry Trend Outlook

High-power solar panels have become an inevitable trend with the development of PV technology. Replacing traditional PERC panels gradually, 750W N-type panels dominate the market with superior performance and cost advantages. Industry forecast shows that the market share of high-power panels above 700W will exceed 60% by 2027. Jingsun New Energy will continue to increase R&D investment, optimize product performance and quality, provide premium PV solutions for global clients, and boost global energy transition and carbon neutrality goals.
