Basic Specifications
|
Cell |
N-type 210mm half cut |
|
Weight |
33.5kg±3% |
|
Dimension |
2384±2mmx1303±2mm×35/30mm |
|
Glass |
3.2mm² low-iron tempered suede glass |
|
No. of cells |
132(6×22) |
|
Junction Box |
IP≥68,3diodes |
|
Cable&Connector |
4mm²,EVO2 or EVO2 compatible |
|
Modules Per Pallet |
31/36pieces |
|
Modules Per 40HQ |
566/658pieces |
Mechanical Diagrams
Remark: customized frame color and cable length available upon request
Product Advantages
1. Safe and Secure:
Jingsun solar panels are designed with safety in mind. They are made of tempered glass that can withstand strong winds, hail, and other weather elements, reducing the risk of damage or accidents. The panels also come with a 25-year warranty, which ensures that customers are protected against any manufacturing defects or equipment failures.
2. Cost-Effective:
By switching to Jingsun 750W solar panels, customers can save a lot of money in the long run. Installing solar panels on a property can significantly reduce monthly electricity bills and help mitigate the impact of rising energy costs. Additionally, the government offers tax credits and incentives that can offset the initial investment in solar energy.
3. Boosts Property Value:
Investing in solar panels can significantly increase the value of a property. In fact, according to recent studies, homes with solar panels sell faster and at a higher price than those without them. Jingsun solar panels are an excellent option for those looking to increase their property value while also reducing their carbon footprint.
4. Diverse Configuration Options:
Jingsun solar panels come in various configurations, making them a flexible option for any sized property. Customers can choose between polycrystalline, monocrystalline, or thin-film panels, depending on their specific needs and budget. Additionally, Jingsun offers customizable installation options, allowing customers to tailor their solar energy system to their unique energy requirements.
5. Easy Maintenance:
Jingsun solar panels require minimal maintenance, making them a hassle-free and cost-effective solution in the long run. While occasional cleaning may be necessary to ensure maximum efficiency, the panels do not have any moving parts or systems that require frequent maintenance. This aspect makes Jingsun solar panels the ideal choice for those looking for an energy source that offers consistent performance and minimal upkeep.
Electrical Parameters at STC
|
TYPE |
JAM132S-720N |
JAM132S-725N |
JAM132S-730N |
JAM132S-735N |
JAM132S-740N |
JAM132S-745N |
JAM132S-750N |
|
Maximum Power Pmax |
720W |
725W |
730W |
735W |
740W |
745W |
750W |
|
Open Circuit Voltage Voc |
46.54V |
46.64V |
46.74V |
46.84V |
46.94V |
47.04V |
47.14V |
|
Maximum Power Voltage Vmp |
40.4V |
40.6V |
40.8V |
41.0V |
41.2V |
41.4V |
41.6V |
|
Short Circuit Voltage Isc |
18.39A |
18.46A |
18.53A |
18.60A |
18.67A |
18.74A |
18.81A |
|
Maximum Power Current Imp |
17.82A |
17.86A |
17.89A |
17.93A |
17.96A |
18.00A |
18.03A |
|
Module Efficiency |
23.2% |
23.3% |
23.5% |
23.7% |
23.8% |
24.0% |
24.1% |
|
Power Tolerance |
0~+5W |
||||||
|
Temperature Coefficient of Isc(α_Isc) |
+0.042%/℃ |
||||||
|
Temperature Coefficient of Isc(β_Isc) |
-0.240%/ ℃ |
||||||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.280%/ ℃ |
||||||
|
STC |
Irradiance 1000W/m², cell temperature 25℃, AM1.5G |
||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
Measurement tolerance at STC: Pmax ±3 %, Voc ±2% and Isc ±4%.
Electrical Parameters At NOCT
|
TYPE |
JAM132S-720N |
JAM132S-725N |
JAM132S-730N |
JAM132S-735N |
JAM132S-740N |
JAM132S-745N |
JAM132S-750N |
|
Maximum Power Pmax |
552W |
556W |
560W |
564W |
568W |
572W |
576W |
|
Open Circuit Voltage Voc |
44.59V |
44.69V |
44.79V |
44.89V |
44.99V |
45.09V |
45.19V |
|
Maximum Power Voltage Vmp |
38.68V |
38.88V |
39.08V |
39.28V |
39.48V |
39.68V |
39.88V |
|
Short Circuit Voltage Isc(A) |
14.67A |
14.74A |
14.81A |
14.88A |
14.95A |
15.02A |
15.09A |
|
Maximum Power Current Imp(A) |
14.27A |
14.30A |
14.33A |
14.36A |
14.39A |
14.42A |
14.44A |
|
NOCT |
Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G |
||||||
Operating Conditions
|
Maximum System Voltage |
1000/1500V DC(IEC) |
|
Operating Temperature |
40℃~+85℃ |
|
Maximum Series Fuse |
30/35A |
|
Maximum Static Load,Front |
5400Pa, 1.5 |
|
Maximum Static Load,Back |
2400Pa, 1.5 |
|
NOCT |
45±2℃ |
|
Application Class |
Class A |

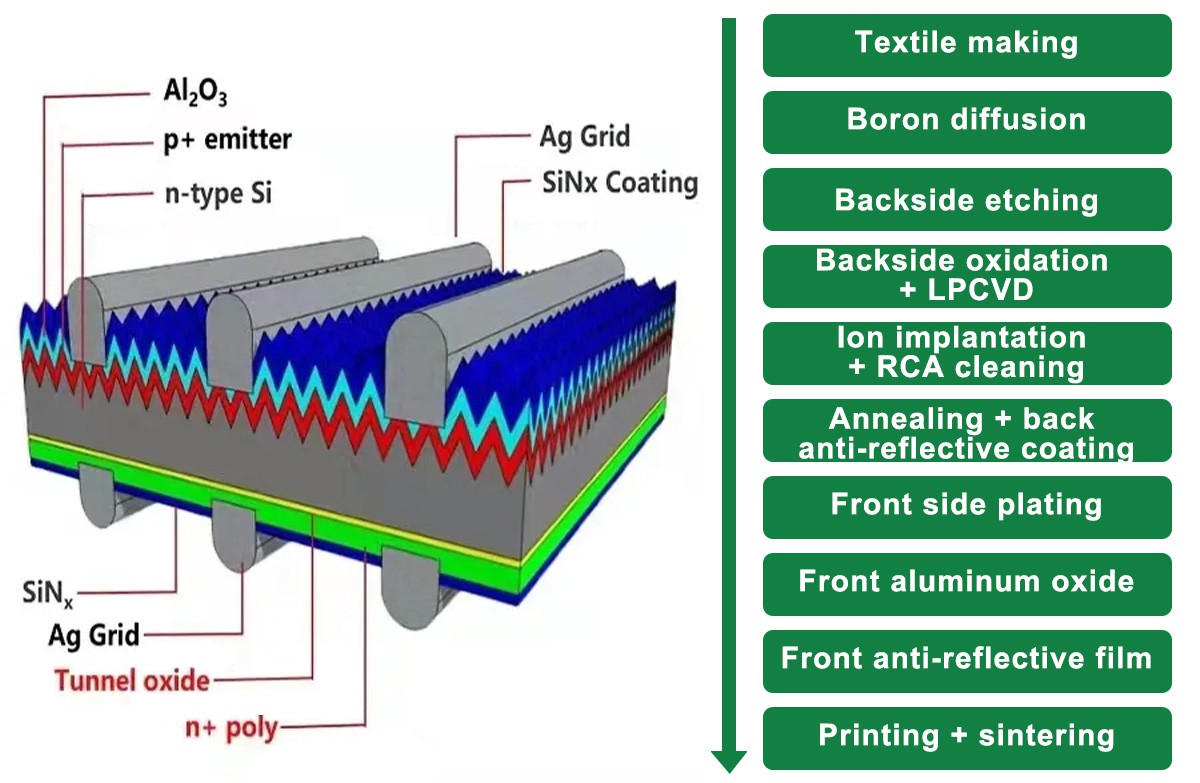

Process Flow
Jingsun N-Type 750W solar panel is a high-quality product that is crafted using the latest technologies and cutting-edge manufacturing processes. The production process starts by selecting the best raw materials that are carefully tested and inspected for quality. The raw materials are then processed through a number of sophisticated machines to create the solar cells.
The solar cells are then assembled into a modular design, with each unit undergoing rigorous testing for efficacy. These units are then heat-bonded onto tempered glass, which forms the top layer of the solar panel. The glass is crafted to be highly transparent and durable, ensuring maximum sunlight absorption and long-term performance.
After the glass layer is applied, the panel goes through a process of vacuum sealing and lamination. This process ensures that the panel is weather-resistant, waterproof, and dustproof, which is crucial for ensuring long-term performance. The panel is then framed with anodized aluminum to provide additional protection and durability.
Packing And Shipping
The packaging process of Jingsun N-Type 750W solar panels follows strict guidelines to ensure the safety of the product. The product is first wrapped in bubble wrap to protect it from scratches during shipping. It is then packed in securely sealed cartons to prevent the product from shifting or shifting during shipping.
The shipping process of Jingsun N-Type 750W solar panel is very diligent to ensure that the product arrives on time. Jingsun cooperates with reputable express delivery services to provide prompt and professional services. Delivery time for this product is usually 5-10 working days, depending on destination.
FAQ
Q: What is the efficiency rating of the Jingsun N-Type 750W solar panel?
Q: What is the lifespan of the Jingsun N-Type 750W solar panel?
Q: How does the Jingsun N-Type 750W solar panel perform in low light conditions?
Q: Can the Jingsun N-Type 750W solar panel withstand harsh weather conditions?
Q: What are the installation requirements for the Jingsun N-Type 750W solar panel?
