Basic Specifications
|
Cell |
N-type 210mm half cut |
|
Weight |
38.7kg±3% |
|
Dimension |
2384±2mmx1303±2mm×35/30mm |
|
Front Glass |
2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass |
|
Back Glass |
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) |
|
No. of cells |
132(6×11+6×11) |
|
Junction Box |
IP≥68,3diodes |
|
Cable&Connector |
4mm²,EVO2 or EVO2 compatible |
|
Modules Per Pallet |
31/36pieces |
|
Modules Per 40HQ |
558pieces |

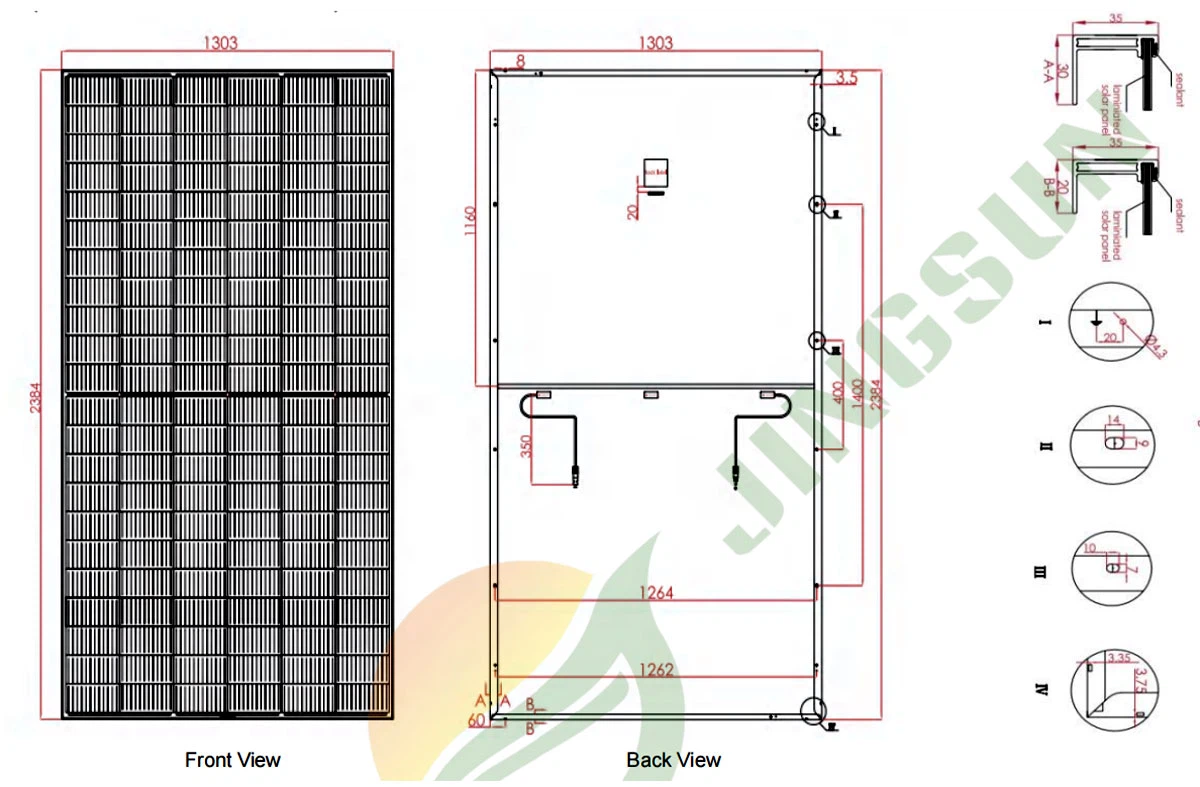

Mechanical Diagrams
Remark: customized frame color and cable length available upon request
Product Advantages
1. High Power Output: Jingsun's 750 Watt solar panel uses high-efficiency multi-busbar N-type cells, which offer a higher power output than conventional solar panels. This means that the panels can generate more electricity, making them a more cost-effective source of renewable energy.
2. Better Temperature-dependent Performance: The half-cell configuration of Jingsun's modules offers better temperature-dependent performance than other solar panels. This means that they can generate more electricity in hot conditions, making them a great option for areas with high temperatures.
3. Reduced Shading Effect: Jingsun's solar panels are designed to have a reduced shading effect on energy generation. This means that even if part of the panel is shaded, it will still generate a good amount of electricity. This makes them ideal for urban environments where shading from buildings and other structures is common.
4. Lower Risk Of Hot Spot: The half-cell configuration of Jingsun's modules reduces the risk of hot spots, which can damage solar panels and reduce their efficiency. This means that Jingsun's solar panels are more reliable and long-lasting than conventional solar panels.
5. Enhanced Tolerance For Mechanical Loading: Jingsun's solar panels are designed to be more tolerant of mechanical loading, which means that they can withstand more stress from wind, hail, and other environmental factors. This makes them a great option for areas with harsh weather conditions, such as coastal regions or regions prone to severe storms.
Electrical Parameters at STC
|
TYPE |
JAM132D-720N |
JAM132D-725N |
JAM132D-730N |
JAM132D-735N |
JAM132D-740N |
JAM132D-745N |
JAM132D-750N |
|
Maximum Power Pmax |
720W |
725W |
730W |
735W |
740W |
745W |
750W |
|
Open Circuit Voltage Voc |
46.54V |
46.64V |
46.74V |
46.84V |
46.94V |
47.04V |
47.14V |
|
Maximum Power Voltage Vmp |
40.4V |
40.6V |
40.8V |
41.0V |
41.2V |
41.4V |
41.6V |
|
Short Circuit Voltage Isc |
18.39A |
18.46A |
18.53A |
18.60A |
18.67A |
18.74A |
18.81A |
|
Maximum Power Current Imp |
17.82A |
17.86A |
17.89A |
17.93A |
17.96A |
18.00A |
18.03A |
|
Module Efficiency |
23.2% |
23.3% |
23.5% |
23.7% |
23.8% |
24.0% |
24.1% |
|
Power Tolerance |
0~+5W |
||||||
|
Temperature Coefficient of Isc(α_Isc) |
+0.042%/℃ |
||||||
|
Temperature Coefficient of Isc(β_Isc) |
-0.240%/ ℃ |
||||||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.280%/ ℃ |
||||||
|
STC |
Irradiance 1000W/m², cell temperature 25℃, AM1.5G |
||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
Measurement tolerance at STC: Pmax ±3 %, Voc ±2% and Isc ±4%.
Electrical Characteristics With Dierent Power Bin (reference to 10% Irradiance ratio)
|
TYPE |
JAM132D-720N |
JAM132D-725N |
JAM132D-730N |
JAM132D-735N |
JAM132D-740N |
JAM132D-745N |
JAM132D-750N |
|
Maximum Power Pmax |
792W |
798W |
803W |
809W |
814W |
820W |
825W |
|
Open Circuit Voltage Voc |
46.84V |
46.99V |
47.14V |
47.29V |
47.44V |
47.59V |
47.74V |
|
Maximum Power Voltage Vmp |
40.71V |
40.87V |
41.03V |
41.19V |
41.35V |
41.51V |
41.67V |
|
Short Circuit Voltage Isc(A) |
19.37A |
19.44A |
19.51A |
19.58A |
19.65A |
19.72A |
19.79A |
|
Maximum Power Current Imp(A) |
19.45A |
19.53A |
19.57A |
19.64A |
19.69A |
19.75A |
19.80A |
|
Irradiance radio (rear/front) 10% |
Power Bifaciality: 70±10%. |
||||||
Operating Conditions
|
Maximum System Voltage |
1500VDC(IEC) |
|
Operating Temperature |
40℃~+85℃ |
|
Maximum Series Fuse |
30/35A |
|
Maximum Static Load,Front |
5400Pa, 1.5 |
|
Maximum Static Load,Back |
2400Pa, 1.5 |
|
NOCT |
45±2℃ |
|
Application Class |
Class A |
Production Process
The Jingsun 750Watt N-Type bifacial solar panel is manufactured using a highly efficient and streamlined process. The production process begins with the selection of the highest quality materials, including high-performance N-Type silicon cells, tempered glass, and aluminum frames.

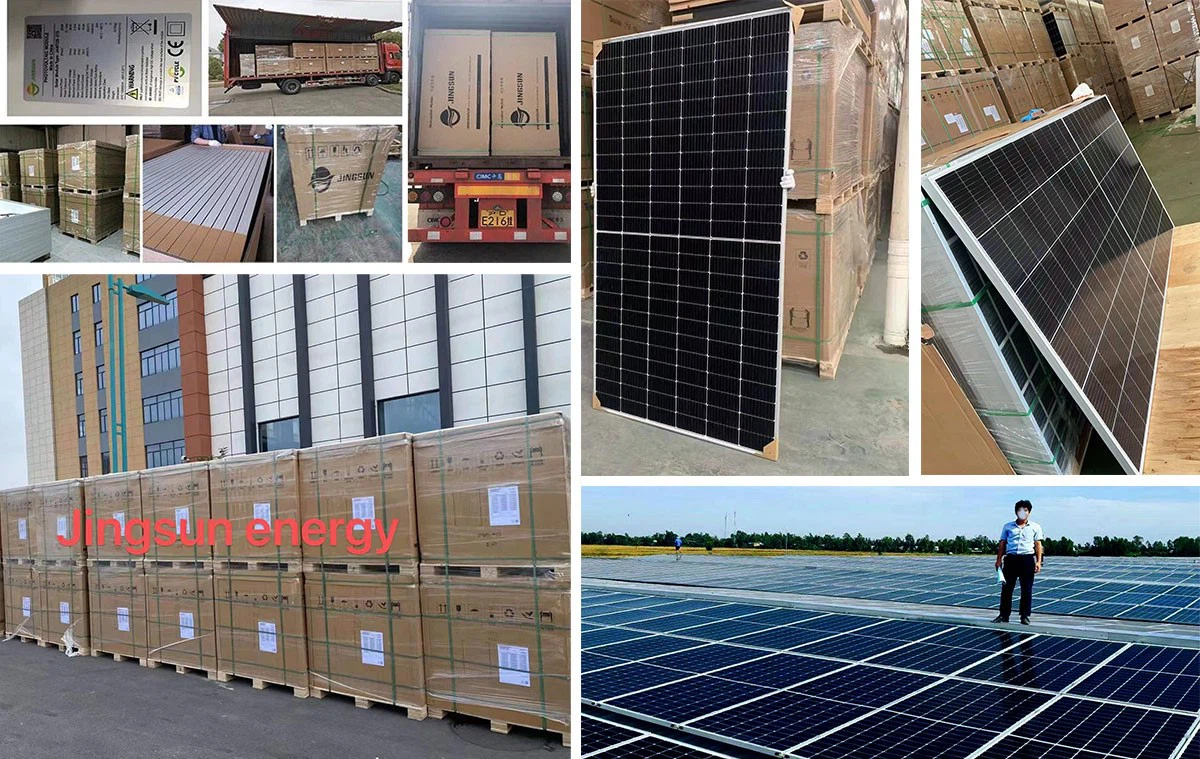

Packing And Shipping
Jingsun 750Watt N-Type bifacial solar panel is designed with top-notch craftsmanship and cutting-edge technology that makes it the preferred choice for customers. To ensure that the product reaches our customers in perfect condition, we have invested time and resources to develop a comprehensive packaging and shipping system. Our packaging system is meticulously designed to protect the panels from any damage during the shipping process. The product is packaged in multiple layers of protective material to cushion against any vibrations, impacts, or mechanical stress that may otherwise cause harm.
Our shipping service is reliable and flexible, designed to cater to the different needs and demands of our esteemed customers. Whether it is shipping by sea, air, or land, we ensure that the product arrives at the destination safely and on time. Furthermore, we have established warehouses across Europe, enabling us to provide a prompt and convenient service to our customers.
