Name: 100KW Hybrid Solar System
Brand: JINGSUN
SKU: 202505139

Products Description

The 100KW hybrid solar system is an essential solution for off-grid applications, as it can provide continuous power without relying on traditional fossil fuels. It is also a perfect option for areas with unstable electricity grids, where power outages are common. The system ensures a constant supply of electricity through its hybrid feature, which switches to battery power when there is no sunlight to generate energy.
Moreover, the 100KW hybrid solar system can significantly reduce electricity bills by maximizing the use of the free energy obtained from the sun. This system can also help lower carbon emissions and reduce the impact of climate change by reducing the dependence on fossil fuels.
In addition, the 100KW hybrid solar system requires little maintenance and has a long lifespan due to the durable nature of the solar panels and batteries. It is easy to install and can be customized to meet specific energy needs and requirements.

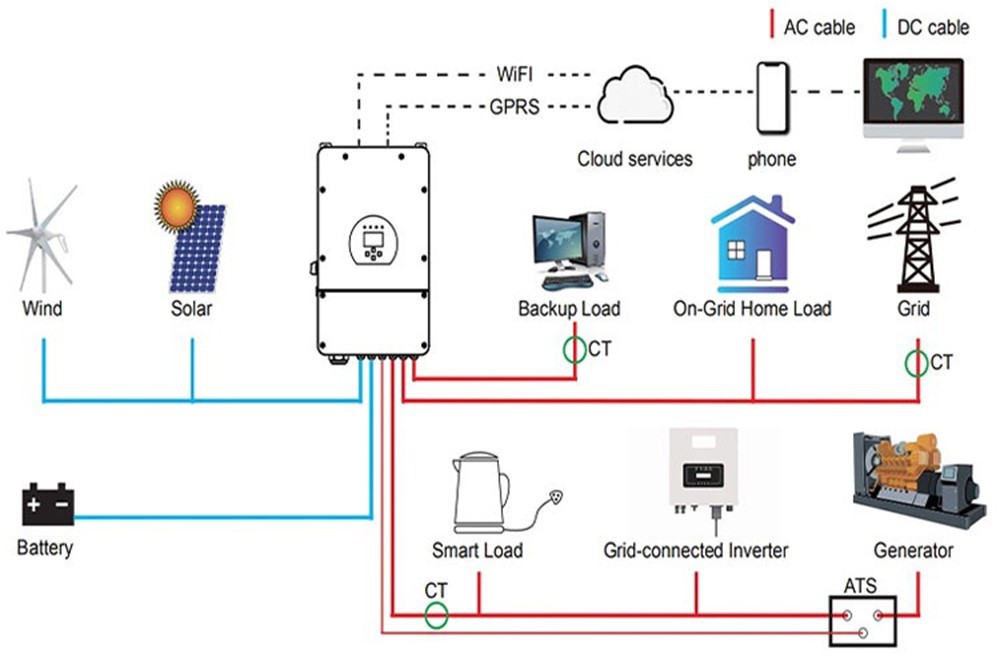

100kw hybrid solar system

System Configuration

Item	Specification	Warranty	Quantity
Solar Panel	Rated Power : 550W	25 years	182
	Rated Power : 570W	25 years	176
	Rated Power : 710W	25 years	155
Inverter	100kw; Output:400v	3years	1
Battery	576V 200AH	3years	1
Mounting Bracket	For Roof	15years	155
PV Cable	4mm²	20years	1000
MC4 Compatible Connector	30A / 1000V DC	10years	80

Product Information

Solar panel Type	Mono silicon 550W/570W/710W
Controller Type	MPPT/PWM
Inverter	Singe Phase/Three Phase
Battery Type	AGM/Gel/OPzS Tubular/Lithium Battery
PV Cable	4mm^2
Output Voltage	EU: 230/380V Us: 120/240V
Output Frequency	50/60Hz
Transport Package	Carton Box and Wooden Pallet
Origin	China

Solar PanelSolar panels with higher wattage such as 550W, 570W, and 710W are highly efficient as they produce more power in comparison to panels of lower wattage. With higher efficiency, you can generate more energy from the same number of panels, reducing costs and increasing savings.

MPPT solar controllers

Charger Controller

MPPT solar controllers can adjust the voltage and current of solar panels to ensure that the maximum amount of power is transferred to the batteries. This enables MPPT controllers to increase the efficiency of solar panels, especially in low-light conditions, by up to 30%.

Jingsun solar inverters

Inverter

Jingsun solar inverters are known for their high efficiency rates, converting DC power generated by solar modules to AC power for use in homes and businesses. This makes them more cost-effective for users in the long run, as they generate higher energy output at lower costs.

stacked lithium solar battery

Battery

The stacked lithium solar battery combines high-efficiency solar panels with lithium-ion batteries, providing an unmatched level of energy efficiency. The solar panels convert sunlight into electricity, which then charges the lithium-ion battery. Through this process, the stacked lithium solar battery offers a reliable and effective energy source.

Install The System

Install The System

Mounting Rail & Rail Splice Kit: A16005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mmL Foot Asphalt Shingle Mount & Hanger Bolt Optional Cable Clip&TieOptional.
Ground Clip & Lugs Optional Flat/pitched roof, soil/cement ground installation.Customized design with CAD drawing. Installation Tools BoxMC4 spanner, Crimping pliers etc

Applications

Versatile Application: The 100KW hybrid solar system is suitable for a wide range of applications, such as industrial, commercial, and residential properties. The versatility of the system makes it a perfect solution for reducing energy costs and improving electricity reliability.
Reduced Carbon Emission: With a hybrid solar system, properties eliminate the need for traditional sources of energy, reducing carbon emissions associated with fossil fuels. Reduced carbon emissions, in turn, help to mitigate climate change, leading to a better and more sustainable future.

100kw solar power system complete hybrid set

Solar panel manufacturing

FAQ

Q: What is a 100KW Hybrid Solar System?

A: A 100KW Hybrid Solar System is a renewable energy solution that combines solar panels and a backup power supply to generate electricity. The system allows for the use of solar energy during the day when the sun is shining and automatically switches to stored backup power at night or during inclement weather.

Q: How does the 100KW hybrid solar system work?

A: The system consists of solar panels, inverters, charge controllers, and energy storage batteries. Solar panels absorb light energy from the sun and convert it into electricity, which is then sent to an inverter or charge controller. An inverter or charge controller regulates the flow of energy and sends it to the battery for storage or directly to the electrical load. If the battery is fully charged, the excess energy can be used to power other appliances or sold back to the grid.

Q: What is the payback period for a 100KW Hybrid Solar System?

A: The payback period for a 100KW Hybrid Solar System will vary depending on several factors such as the energy usage, location, and cost of electricity. However, most 100KW hybrid solar systems pay for themselves within 5-7 years and can continue to generate electricity for 25-30 years. After the system has paid for itself, the energy produced is essentially free, saving money on electricity bills for years to come.

why-choose-us
