Product Advantages

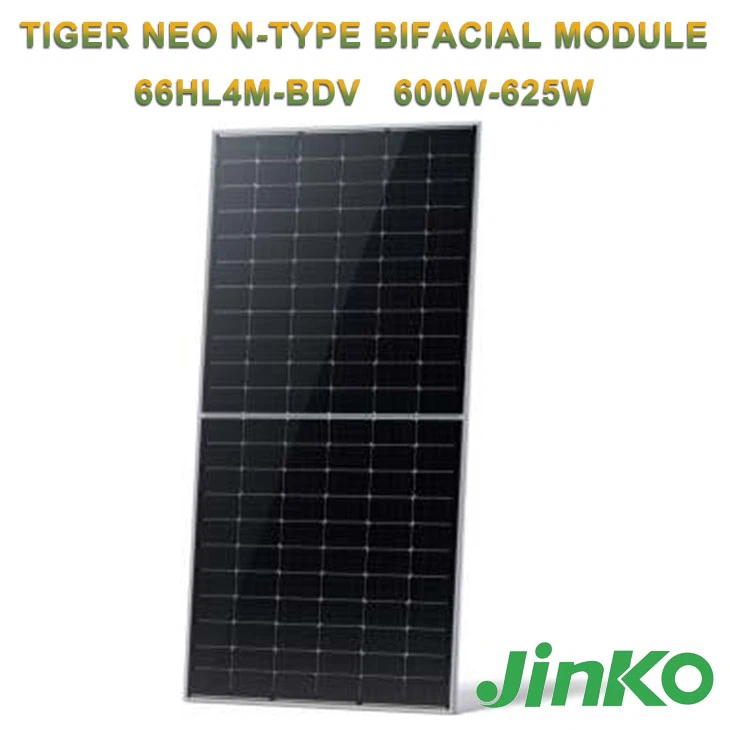

1. High Power Output: Jinko's 625W Bifacial Module with Dual Glass produces high power output due to its advanced design. The dual-sided power generation technology enhances power efficiency while reducing overall costs.
2. Dual-Sided Power Generation: The Jinko 625W Bifacial Module with Dual Glass uses a unique design that captures light from both the front and back of the panel. This innovative technology increases energy production, making it an excellent choice for locations with high irradiance levels.

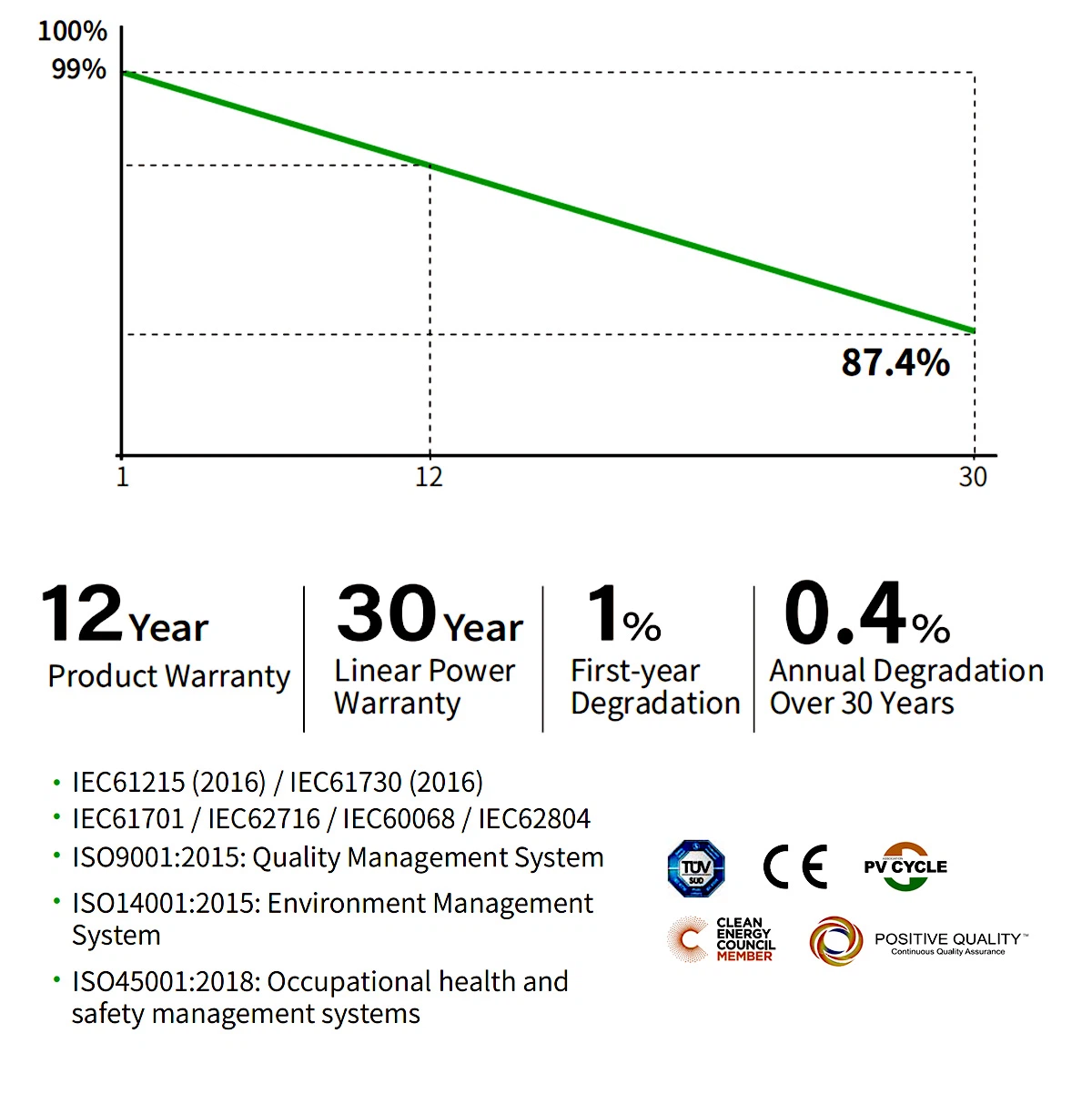

3. Annual Degradation Over 30 Years: Jinko's advanced construction and high-performance materials ensure that this module maintains its power output throughout its lifespan. With an annual degradation rate of less than 0.4%, it guarantees consistent energy production for over 30 years.
4. Durability: The module's dual glass design makes it extremely durable and resistant to thermal stresses. It can withstand severe weather conditions, including heavy rain, snow, hail, and high winds, making it an ideal investment for protracted periods, even in harsh environments.
5. Environmentally Friendly: The Jinko 625W Bifacial Module with Dual Glass is environmentally friendly and produces no greenhouse gases. It is a clean and renewable energy option that can be employed as a source of power across various applications, including commercial, residential, and utility-scale projects.
Specifications

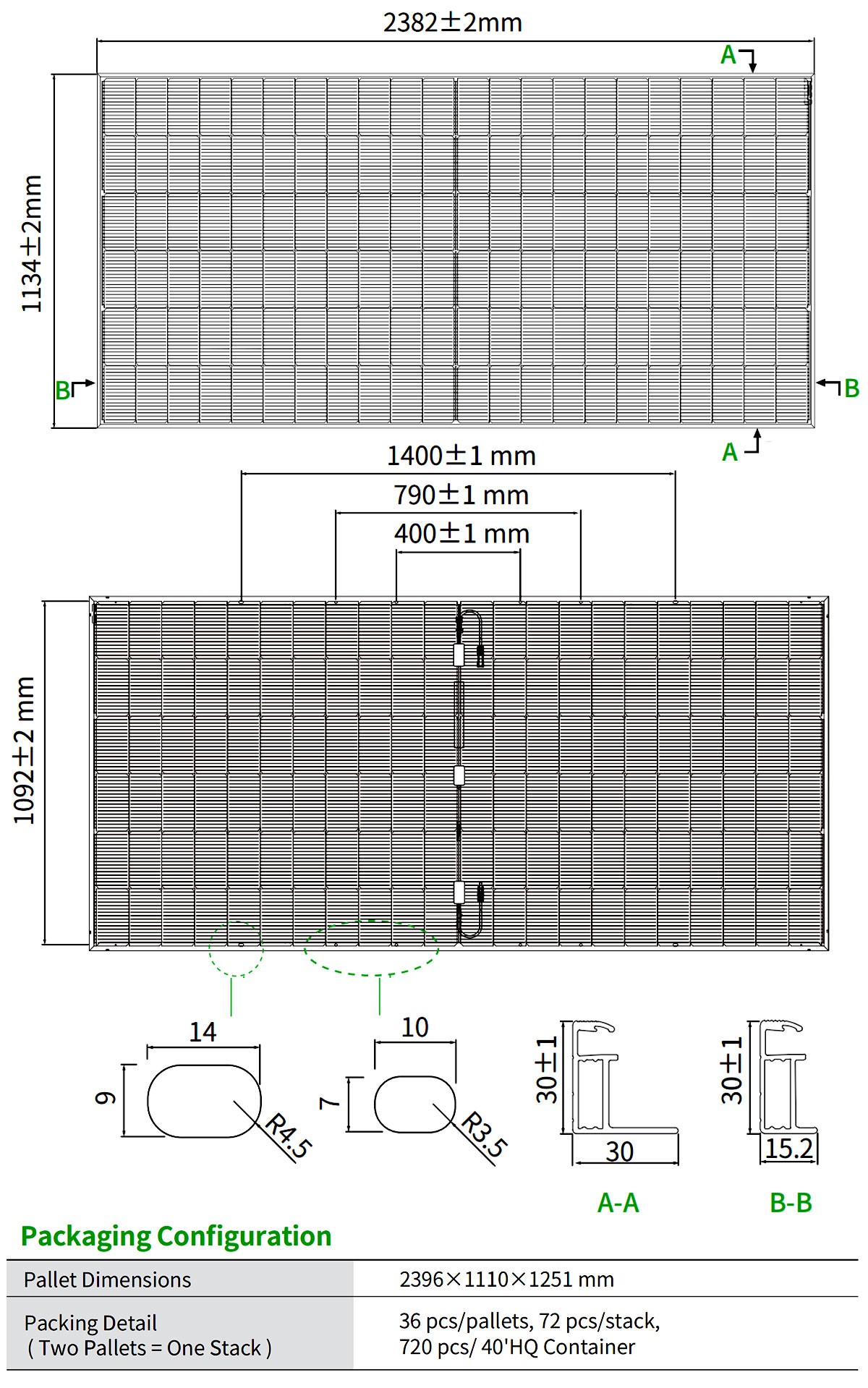

Mechanical Characteristics
|
Cell Type |
N -type Mono-crystalline |
|
No. of cells |
132(66x2) |
|
Dimensions |
2382x1134x30mm |
|
Weight |
32.4 kg |
|
Front Glass |
2.0 mm, Anti-Reflection Coating |
|
Back Glass |
2.0 mm, Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
lp68 Rated |
|
Protection Class |
Class ll |
|
IEC Fire Type |
Class C |
|
Output cables |
4.0 mm²：(+): 400 mm ,(-): 200 mm or customized Length |
Electrical Characteristics At STC
|
Maximum Power - Pmax |
600Wp |
605Wp |
610Wp |
615Wp |
620Wp |
625Wp |
|
Maximum Power Voltage - Vmp |
40.16V |
40.31V |
40.46V |
40.60V |
40.74V |
40.88V |
|
Maximum Power Current - Imp |
14.94A |
15.01A |
15.08A |
15.15A |
15.22A |
15.29A |
|
Open-circuit Voltage - Voc |
48.28V |
48.48V |
48.68V |
48.88V |
49.08V |
49.28V |
|
Short-circuit Current - Isc |
15.84A |
15.90A |
15.96A |
16.02A |
16.08A |
16.14A |
|
Module Efficiency STC |
22.21% |
22.40% |
22.58% |
22.77% |
22.95% |
23.14% |
|
Power Tolerance |
0~+3% |
|||||
|
Temperature Coefficients of Pmax |
-0.290%/°C |
|||||
|
Temperature Coefficients of Voc |
-0.250%/°C |
|||||
|
Temperature Coefficients of Isc |
+0.045%/°C |
|||||
|
STC |
lrradiance 1000w/m2, Cell Temperature 25oc, AM=1.5 |
|||||
Electrical Characteristics At NOCT
|
Maximum Power - Pmax |
453Wp |
457Wp |
461Wp |
464Wp |
468Wp |
472Wp |
|
Maximum Power Voltage - Vmp |
37.60V |
37.76V |
37.92V |
38.10V |
38.25V |
38.44V |
|
Maximum Power Current - Imp |
12.05A |
12.10A |
12.15A |
12.19A |
12.24A |
12.28A |
|
Open-circuit Voltage - Voc |
45.86V |
46.05V |
46.24V |
46.43V |
46.62V |
46.81V |
|
Short-circuit Current - Isc |
12.79A |
12.83A |
12.88A |
12.93A |
12.98A |
13.03A |
Operating Parameters
|
Maximum System Voltage |
1500VDC (IEC) |
|
Operating Temperature |
-40°C~+85°C |
|
Maximum Series Fuse |
35A |
|
Maximum Static Load,Front |
5400Pa(112lb/ft²) |
|
Maximum Static Load,Back |
2400Pa(50Ib/ft²) |
|
NOCT |
45±2°C |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|
Fire Rating |
UL type 1 or2IEC Class C |

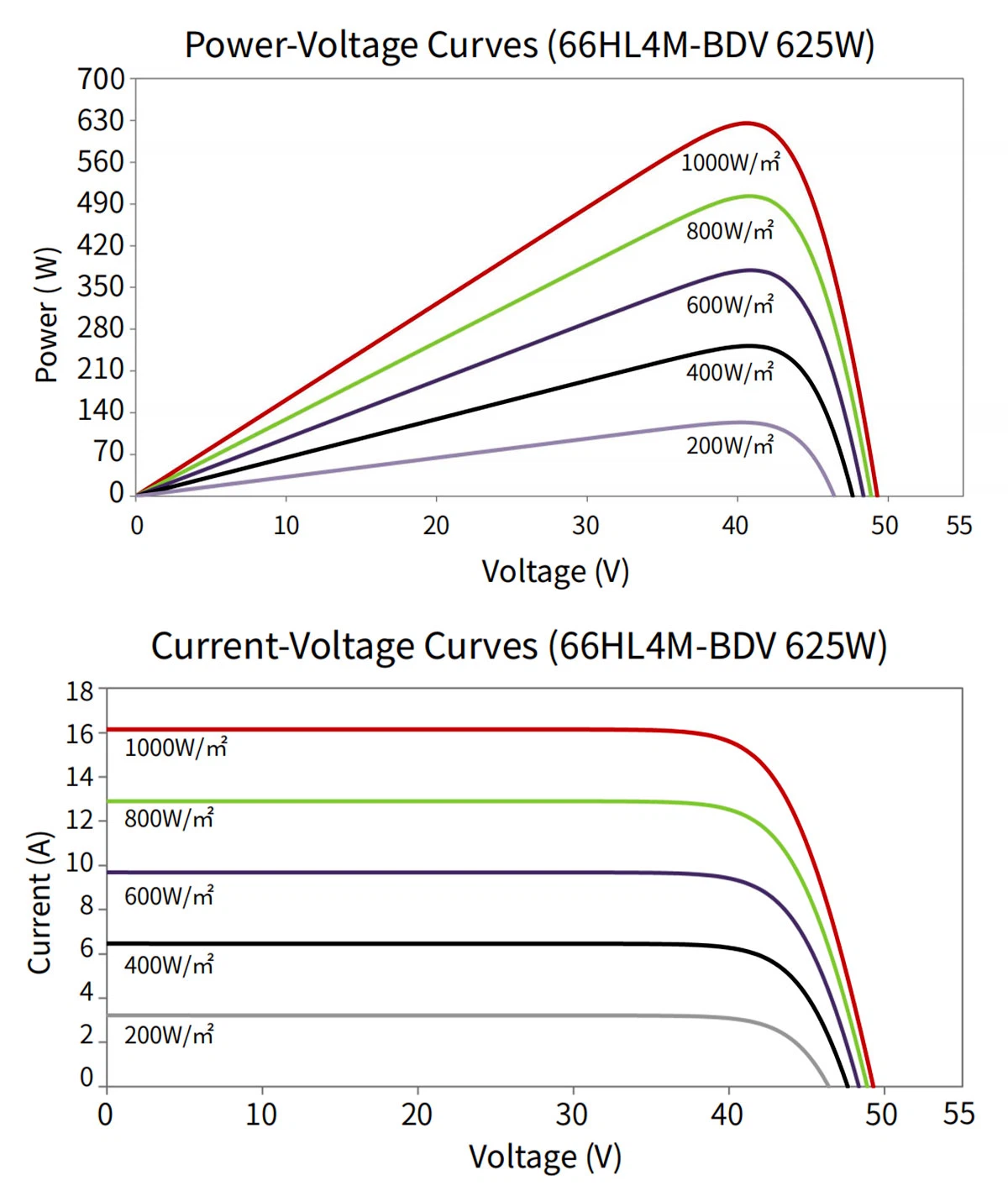

Electrical Performance
Application Scenarios

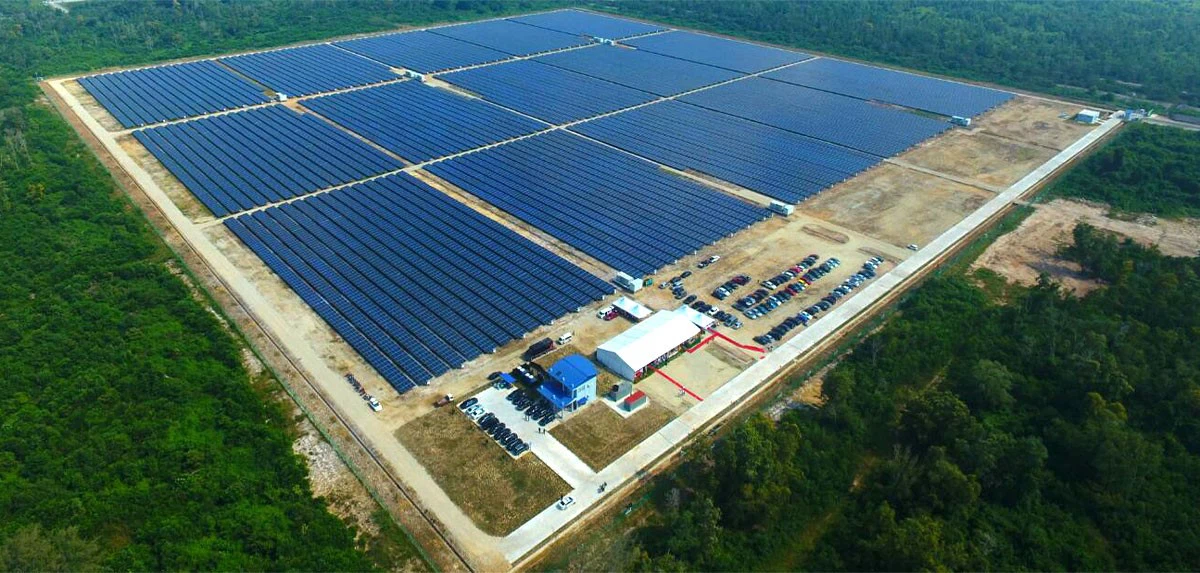

1. Large-Scale Solar Farms: The Jinko 625W Bifacial Module With Dual Glass is an ideal solution for large-scale solar farms due to its size and efficiency. The module is capable of producing up to 30% more energy than traditional solar panels, making it an attractive option for utility-scale projects. Additionally, the dual-glass design provides superior durability and resistance to extreme weather conditions, ensuring that the solar farm will continue to operate reliably for decades to come.

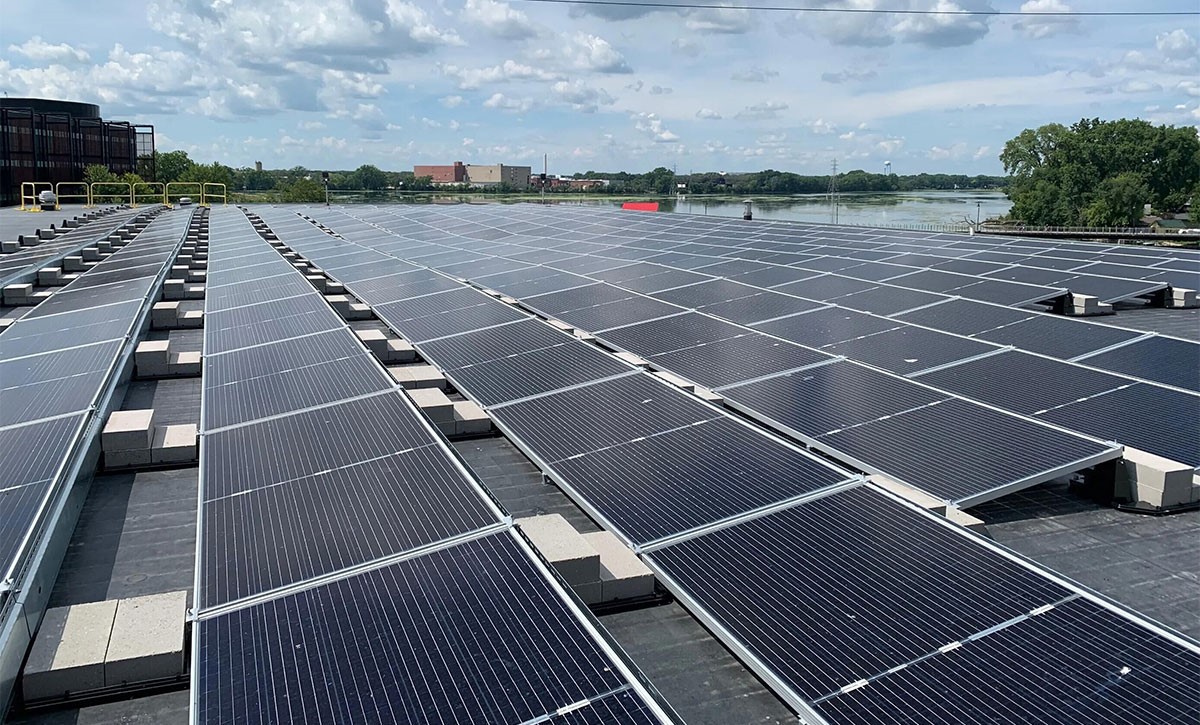

2. Urban Rooftops: As space becomes increasingly scarce in urban areas, the Jinko 625W Bifacial Module With Dual Glass is an excellent option for installing solar panels on rooftops. The dual-glass design allows the panel to capture energy from both sides, maximizing its efficiency in areas with limited space. Additionally, the module's sleek design and high efficiency make it an attractive option for homeowners and businesses looking to save money on their energy bills.
3. Remote Off-Grid Applications: Finally, the Jinko 625W Bifacial Module With Dual Glass is well-suited for remote off-grid applications such as rural communities, mining operations, and military bases. The module's high efficiency and durability make it an excellent option for powering remote infrastructure, while its ability to capture energy from both sides ensures that it can operate efficiently even in areas with limited sunlight.
Brand Cooperation
Jingsun New Energy Technology Co., Ltd is excited to announce our long-term stable partnership with several top solar companies in China.
The partnerships we have formed reflect our commitment to producing high-quality solar panels and components while ensuring that we maintain competitive prices for our clients. By combining our technical expertise and innovation with our partners' established reputations and distribution networks, we are well-positioned to continue to provide reliable, efficient, and sustainable energy solutions to clients worldwide.
FAQ
Q: What makes the Jinko 625W Bifacial Module With Dual Glass solar panel stand out from other solar panels on the market?
Q: What types of applications are best suited for the Jinko 625W Bifacial Module With Dual Glass solar panel?
Q: What kind of weather conditions can the Jinko 625W Bifacial Module With Dual Glass solar panel withstand?
Q: Is the Jinko 625W Bifacial Module With Dual Glass solar panel easy to install?
Q: Are there any environmental benefits to using the Jinko 625W Bifacial Module With Dual Glass solar panel?
