Product Advantages
- High Efficiency: Jinko 550W solar panels are known for their high efficiency, up to 21.29%. This means that these panels can convert sunlight into electricity at a much higher rate than older solar panels, resulting in more energy output per square meter.
- Durable and Weather-Resistant: Jinko panels are built to last, with a robust and weather-resistant design that can withstand harsh climates, snow loads, and extreme temperatures. This makes them suitable for use in a variety of environments, including residential, commercial, and utility-scale solar projects.
- Improved Power Output: The Jinko 550W solar panels offer improved power output due to a higher number of solar cells (210) and the use of multi-busbar technology, which results in better electricity flow and reduces energy loss.
- Enhanced Safety Features: Jinko panels are designed with enhanced safety features, including fire resistance and the use of high-quality materials that are less prone to damage and deterioration. This ensures that the panels continue to operate safely and effectively for years to come.
- High-Quality Standards and Certifications: Jinko is a leading manufacturer of solar panels and is committed to producing high-quality products that meet or exceed industry standards. All Jinko panels are certified by TUV Rheinland, an independent testing and certification organization, and comply with international safety and performance standards. This ensures that the panels are reliable, efficient, and safe to use.
Specifications
Electrical Parameters At STC
|
TYPE |
JKM540M-72HL4 |
JKM545M-72HL4 |
JKM550M-72HL4 |
JKM555M-72HL4 |
JKM560M-72HL4 |
|
Rated Maximum Power(Pmax) |
540W |
545W |
550W |
555W |
560W |
|
Max Power Voltage(Vmp) |
40.70V |
40.80V |
40.90V |
40.99V |
41.09V |
|
Max Power Current(lmp) |
13.27A |
13.36A |
13.45A |
13.54A |
13.63A |
|
Open Circuit Voltage(Voc) |
49.42V |
49.52V |
49.62V |
49.72V |
49.82V |
|
Short Circuit Current(lsc) |
13.85A |
13.94A |
14.03A |
14.12A |
14.21A |
|
Module Efficiency |
20.90% |
21.10% |
21.29% |
21.48% |
21.68% |
|
Power Tolerance |
0~+5W |
||||
|
Temperature Coefficient of lsc(α_lsc) |
+0.048%/°C |
||||
|
Temperature Coefficient of Voc(β_Voc) |
-0.28%/°C |
||||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.35%/°C |
||||
|
STC |
Irradiance 1000W/m²,cell temperature 25°C,AM1.5G |
||||
Electrical Parameters At NOCT
|
TYPE |
JKM540M-72HL4 |
JKM545M-72HL4 |
JKM550M-72HL4 |
JKM555M-72HL4 |
JKM560M-72HL4 |
|
Rated Maximum Power(Pmax) |
402W |
405W |
409W |
413W |
417W |
|
Max Power Voltage(Vmp) |
38.08V |
38.25V |
38.42V |
38.59V |
38.69V |
|
Max Power Current(lmp) |
10.55A |
10.60A |
10.65A |
10.70A |
10.77A |
|
Open Circuit Voltage(Voc) |
46.65V |
46.74V |
46.84V |
46.93V |
47.02V |
|
Short Circuit Current(lsc) |
11.19A |
11.26A |
11.33A |
11.40A |
11.48A |
Operating Conditions
|
Maximum System Voltage |
1000V/1500V DC(IEC) |
|
Operating Temperature |
-40°C~+85°C |
|
Maximum Series Fuse |
25A |
|
Maximum Static Load,Front |
5400Pa(112lb/ft²) |
|
Maximum Static Load,Back |
2400Pa(50Ib/ft²) |
|
NOCT |
45±2°C |
|
Safety Class |
Class II |
|
Fire Performance |
UL Type 1 |
Brand Cooperation
Jingsun is thrilled to announce its partnership with renowned solar panel manufacturer. This cooperation means that our customers can now enjoy high-quality solar panels that are not only efficient but also environmentally friendly. Our goal is to provide sustainable and affordable solutions to power your homes and businesses. We believe that this partnership will pave the way for more innovative and sustainable energy practices in the future. With our combined expertise, we can help you harness the power of the sun and reduce your carbon footprint. Join us in our mission to create a brighter and more sustainable future.
FAQ
Q: What is the efficiency of the Jinko550W solar panel?
Q: How much power can one Jinko 550W solar panel generate?

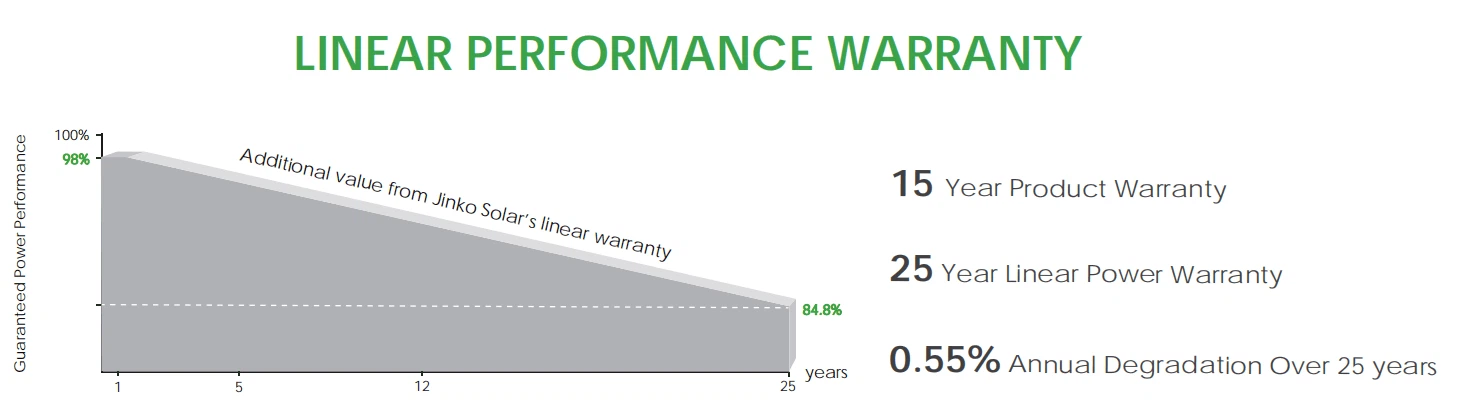

Q: What is the warranty on the Jinko 550W solar panel?
Q: Can the Jinko 550W solar panel withstand harsh weather conditions?
Q: How can I improve the performance of my Jinko 550W solar panel?
