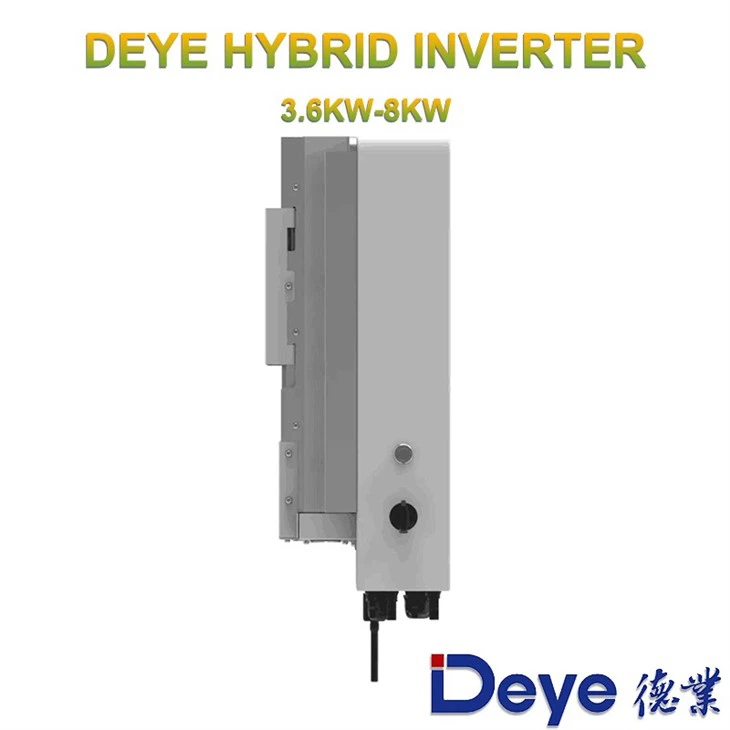

Product Advantages
1. High Max. Charging/Discharging Current: The Deye 5KW Hybrid Inverter boasts a Max. charging/discharging current of 190A, which significantly enhances its charging and discharging efficiency. This advantage ensures that your battery gets charged or discharged faster, which means that you can maximize your available power supply.
2. Flexible Charging/Discharging: With six different time periods available for battery charging/discharging, the Deye 5KW Hybrid Inverter gives you the power to customize your power supply. You can charge and discharge your battery according to your schedule, ensuring that you have power when you need it most.
3. Reliable Power Supply: The Deye 5KW Hybrid Inverter is built to last and provides a stable power supply for your home or business. It features advanced technology that ensures a reliable power supply at all times, so you don't have to worry about sudden power outages or system failures.
4. Cost-Effective: Investing in the Deye 5KW Hybrid Inverter is a cost-effective choice for your home or business. It is designed to maximize your power usage while keeping your energy bills low. It utilizes advanced technologies that help to reduce your electricity costs significantly.
5.Environmentally Friendly: The Deye 5KW Hybrid Inverter is an environmentally friendly power solution. It is designed to reduce your carbon footprint by optimizing your power usage and maximizing the efficiency of your existing energy sources. By choosing the Deye 5KW Hybrid Inverter, you are doing your part to protect our planet and reduce your impact on the environment.
Technical Data
Model |
SUN-3.6K -SG05LP1-EU |
SUN-5K -SG05LP1-EU |
SUN-6K -SG05LP1-EU |
SUN-7.6K -SG05LP1-EU |
SUN-8K -SG05LP1-EU |
Battery Input Data |
|||||
Battery Type |
Lead-acid or Lithium-ion |
||||
Battery Voltage Range (V) |
40-60 |
||||
Max. Charging Current (A) |
90 |
120 |
135 |
190 |
190 |
Max. Discharging Current (A) |
90 |
120 |
135 |
190 |
190 |
External Temperature Sensor |
Yes |
||||
Charging Curve |
3 Stages / Equalization |
||||
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||||
PV String Input Data |
|||||
Max. DC Input Power (W) |
4680 |
6500 |
7800 |
9880 |
10400 |
Rated PV Input Voltage (V) |
370 (125-500) |
||||
Start-up Voltage (V) |
125 |
||||
MPPT Voltage Range (V) |
150-425 |
||||
Full Load DC Voltage Range (V) |
300-425 |
200-425 |
|||
PV Input Current (A) |
13+13 |
26+26 |
|||
Max. PV ISC (A) |
17+17 |
34+34 |
|||
No.of MPP Trackers |
2 |
||||
No.of Strings per MPP Tracker |
1+1 |
2+2 |
|||
AC Output Data |
|||||
Rated AC Output Active Power (W) |
3600 |
5000 |
6000 |
7600 |
8000 |
Max AC Output Active Power (W) |
3960 |
5500 |
6600 |
8360 |
8800 |
AC Output Rated Current (A) |
16.4/15.7 |
22.7/21.7 |
27.3/26.1 |
34.5/33 |
36.4/34.8 |
Max. AC Current (A) |
18/17.2 |
25/23.9 |
30/28.7 |
38/36.3 |
40/38.3 |
Max. Continuous AC Passthrough (A) |
35 |
40 |
50 |
||
Peak Power (off grid) |
2 time of rated power, 10 S |
||||
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
||||
Power Factor |
1 |
||||
Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac |
||||
Grid Type |
Single Phase |
||||
Total Harmonic Distortion (THD) |
<3% (of nominal power) |
||||
DC Current Injection |
<0.5% In |
||||
Efficiency |
|||||
Max. Efficiency |
97.60% |
||||
Euro Efficiency |
96.50% |
||||
MPPT Efficiency |
99.90% |
The Deye 5KW Hybrid Inverter is a powerful and reliable device designed to meet the energy needs of modern homes and businesses. To ensure that you get the most out of your inverter, there are a few key things to keep in mind when using it:
1. Regular Maintenance: Regular maintenance is essential to keep your Deye 5KW Hybrid Inverter running smoothly. This includes cleaning and dusting the unit, checking the connections for any loose wires, and monitoring the battery charge level.
2. Battery Maintenance: The battery is a critical component of your inverter. It is important to keep an eye on the battery charge level, perform regular battery checks and ensure that the battery is properly charged.
3. Proper Wiring: Proper wiring is crucial for the safety of the inverter and the connected devices. It is important to follow the manufacturer's instructions when wiring the inverter and to ensure that the wiring is done by a qualified electrician.
4. Avoid Overloading: Overloading your inverter can cause damage to the device and connected equipment. It is important to only connect devices that fall within the recommended load limits of the inverter.
5. Read the Manual: The Deye 5KW Hybrid Inverter comes with an instruction manual. It is important to read and follow the instructions carefully to ensure that the device is used properly and safely. The manual contains important information about the device's features, functions, and safety guidelines.
By following these simple guidelines, you can ensure that your Deye 5KW Hybrid Inverter gives you years of reliable service and helps you to meet your energy needs efficiently and safely.
General Data
Operating Temperature Range (℃) |
-40-60℃, >45℃ Derating |
Cooling |
Smart Cooling |
Noise (dB) |
≤30 dB |
Communication with BMS |
RS485; CAN |
Weight (kg) |
24 |
Cabinet Size (WxHxD mm) |
330×580×232 (Excluding Connectors and Brackets) |
Protection Degree |
IP65 |
Installation Style |
Wall-mounted |
Warranty |
5 Years (10 Years Optional) |
Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Brand Cooperation
Jingsun has been collaborating closely with top solar inverter companies in recent years. Through these collaborations, Jingsun has been able to leverage the expertise and resources of some of the most innovative companies in the solar industry, and improve the overall quality and performance of its products.
The collaborations have included joint research and development efforts, technical consultations, and even regular exchange programs to enhance Jingsun's understanding of the latest trends and technologies in inverter design. These collaborations have enabled Jingsun to develop a comprehensive range of high-performance, reliable and affordable solar inverters that can meet the demanding needs of a wide range of applications.
Jingsun's partnerships with top inverter companies have also helped the company to deepen its relationships with other key industry players, such as developers, integrators, and distributors. By working together with these partners, Jingsun has been able to provide better service, support, and product solutions to customers around the globe.
FAQ
Q: What is the capacity of the Deye 5KW Hybrid Inverter?
Q: Can the Deye 5KW Hybrid Inverter be used off-grid?
Q: Is the Deye 5KW Hybrid Inverter easy to install?
Q: What safety features does the Deye 5KW Hybrid Inverter have?
Q: How does the Deye 5KW Hybrid Inverter save energy?
