Product Advantages

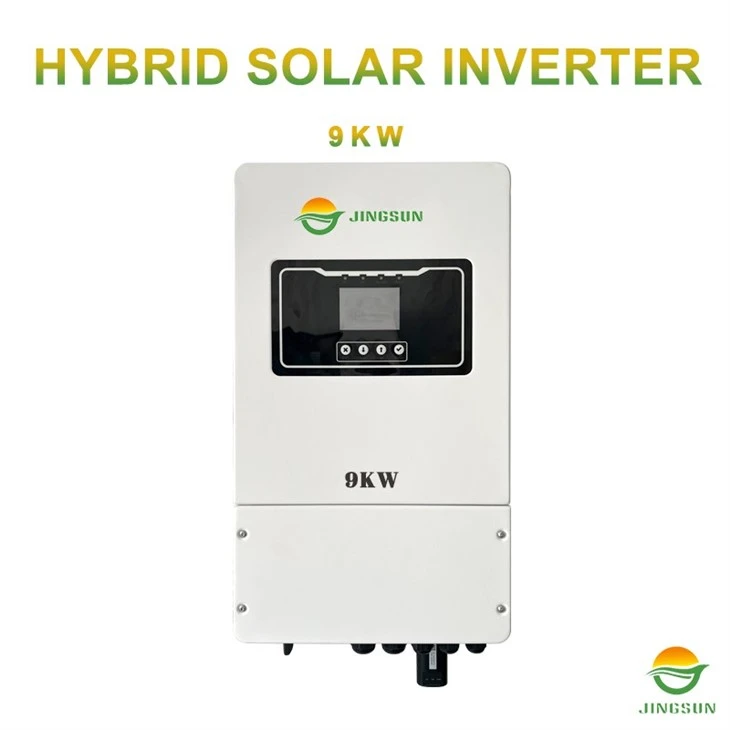

- Simplified Installation Process: The jingsun9kw grid-tied/off-grid integrated inverter allows for simplified installation processes, making it easier to set up and operate. This ensures quick and easy installation, reducing the time, cost, and complexity of installation.
- Versatility: The jingsun9kw inverter is highly versatile, providing power conversion for both grid-tied and off-grid systems. This level of flexibility makes it easier to source and supply power, allowing users to switch between the two modes easily.
- Robust Performance: The jingsun9kw inverter is built with advanced technology that ensures efficient and robust performance, even in harsh weather conditions. It offers superior power generation capabilities, delivering reliable power output with minimal disruptions.
- Enhanced Safety: With safety as a top priority, the jingsun9kw inverter features state-of-the-art safety features that ensure optimal performance without compromising safety standards. These features include overload protection, electrical isolation, and a range of protective systems.
- Improved Energy Efficiency: The jingsun9kw inverter is consistently rated as one of the most energy-efficient inverters on the market. Its advanced design and technology allow it to operate at higher efficiencies, reducing energy consumption and helping to save on electricity costs.
Product Specification
|
Model |
JS 8K-SPLVES1-EU |
|
V max PV(V dc)(absolute Max.) |
500 |
|
ISC PV(absolute Max.)(A) |
34/34 |
|
Max.PV input current/strings(A) |
26/26 |
|
Number MPP trackers/Number input strings |
2/2 |
|
MPPT voltage range (VDC) |
125-500 |
|
VDC range @full power(VDC) |
240-425 |
|
Power PV Max(kW) |
11.2 |
|
AC Grid(input and output) |
|
|
Normal AC Voltage(VAC)/Frequency(Hz) |
230-50 |
|
Normal AC Current(A)/Max.cont.input/output current(A) |
39.2/39.2 |
|
Max.cont.input/output Power(kW)/Max.cont.Apparent Power(KVA) |
9/9 |
|
Power factor(adjustable) |
1.0(-0.8 ~ +0.8) |
|
AC Load output(standalone) |
|
|
Normal Voltage(VAC)/Frequency(Hz) |
230/50 |
|
Nominal Current(A) |
39 |
|
Max.cont.Power(kW) |
9 |
|
Max.cont.Apparent Power(KVA) |
9 |
|
Power factor(adjustable) |
1.0(-0.8 ~ +0.8) |
|
Efficiency |
|
|
Max.Efficiency |
97.60% |
|
Euro Efficiency |
97.00% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
PV Input Lightning Protection/Anti-is landing Protection |
Integrated |
|
DC circuit breaker/PV String Input Reverse Polarity Protection |
Integrated |
|
Insulation Resist or Detection/Residual Current Monitoring Unit |
Integrated |
|
Output Over Current Protection/Output Shorted Protection |
Integrated |
|
Output Over Voltage Protection |
Integrated |
|
Surge protection |
DC Type ll/AC Type ll |
|
Certifications and Standards |
|
|
Grid Regulation |
IEC61683,IEC62116,IEC61727 |
|
Safety Regulation |
IEC62109-1,IEC62109-2 |
|
EMC |
EN61000-6-1,EN61000-6-3 |
|
Others |
|
|
Ingress protection(IP) |
IP65 |
|
Protective class |
Class I |
|
Temperature(℃) |
-25℃to+60℃(Derating45℃) |
|
Overvoltage category |
OVCII(AC Main),OVCII(PV) |
Work Process
- The jingsun 9kw on-grid/off-grid integrated inverter is designed to integrate solar energy with the grid. It converts DC power generated by solar panels into AC electricity that can be used to power homes and businesses or fed back into the grid.
- The inverter has two operation modes: on-grid mode and off-grid mode. In the on-grid mode, the inverter synchronizes with the utility grid and feeds the excess electricity back into the grid. When the electricity generated by solar panels is not enough, the inverter can supplement it with power from the grid.
- In the off-grid mode, the inverter functions as a standalone system. It converts solar power into AC power for local use, and any excess power is stored in batteries for later use when the sun is not shining. In this mode, the inverter can also draw power from a backup generator or the grid if needed.
- Overall, the jingsun9kw on-grid/off-grid integrated inverter works efficiently to harvest and utilize solar energy, making it a valuable and versatile asset in clean energy systems.
Product Overview
Applications
Especially in places without electricity connection, jingsun9kw grid-connected and off-grid integrated inverter can provide power for houses, rural areas, campsites and other independent power generation systems. This could help people get a reliable power source in times of shortage.
try.
jingsun 9kw grid-connected and off-grid integrated inverter can also be used as network backup to protect businesses and households from power interruptions. It injects battery power into the grid to keep a business or home running.
FAQ
Q: What are the benefits of using a jingsun 9kw inverter?
Q: Is the installation of a jingsun 9kw inverter complicated?
Q: Are there any maintenance requirements for the jingsun 9kw inverter?
