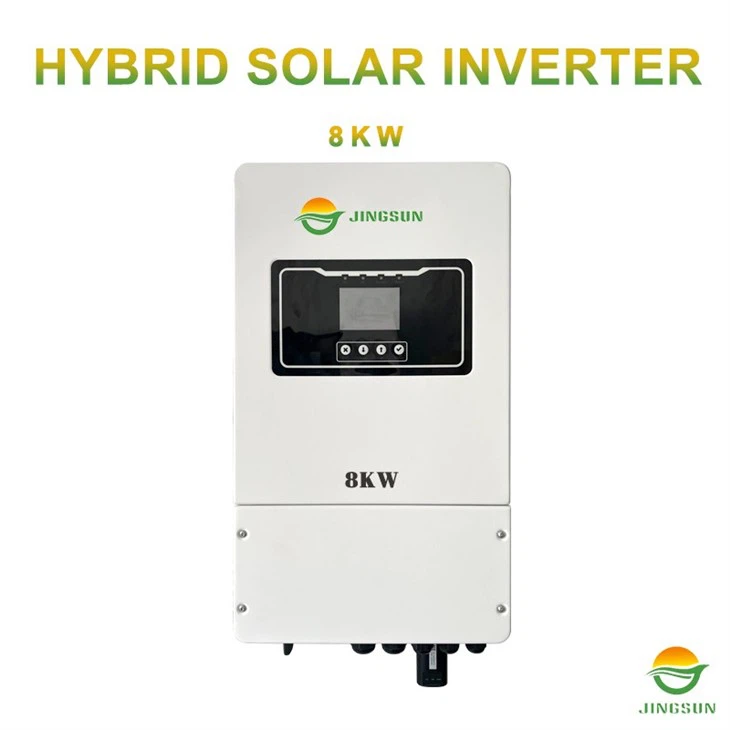

8 KW Hybrid Inverter

• High Efficiency: The Jingsun 8KW Hybrid Solar Inverter features high efficiency, converting solar energy into usable power with efficiency rates as high as 98.4%, reducing energy loss.
• Dual-MPPT Design: The Jingsun 8KW Hybrid Solar Inverter comes with a Dual-MPPT design that enables it to track and monitor the output of solar panels simultaneously, maximizing power generation.

• Battery Backup: With built-in battery backup support, the Jingsun 8KW Hybrid Solar Inverter enables continuous power supply during outages, off-grid situations, or when battery storage is preferred.
• Smart Grid Capabilities: The Jingsun 8KW Hybrid Solar Inverter features smart grid capabilities, enabling communication between the inverter and other grid-connected devices for seamless integration with your home or office electrical network.
• Durable and Reliable: The Jingsun 8KW Hybrid Solar Inverter is designed with high-quality components and materials that ensure durability and reliability, making it a smart investment that can last for years.

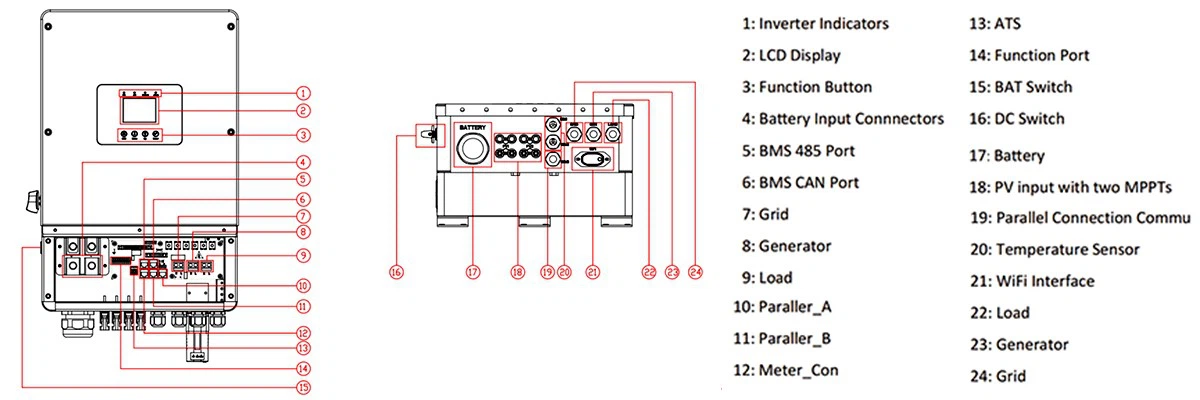

The Jingsun 8KW Hybrid Inverter consists of several key components that work together to create a comprehensive and efficient power management system. These include a PV Charge Controller, Battery Management System, AC Grid Connection, and DC-AC Inverter. The system allows for seamless connectivity of solar panels to the local power grid, as well as the ability to store excess energy in a battery for later use. The PV Charge Controller regulates the input from the solar panels, ensuring that the maximum amount of energy is extracted and converted into usable power.

The Battery Management System controls the charging and discharging of the battery, ensuring that it is always at its optimal state. The AC Grid Connection enables the system to interact with the local grid, allowing surplus energy to be sold back to the power company or drawn when additional energy is needed. Finally, the DC-AC Inverter converts the DC power generated by the solar panels and stored in the battery into AC power that can be distributed throughout the home or business. Overall, the Jingsun 8KW Hybrid Inverter is a highly integrated and effective solution for managing and utilizing solar energy.

Commercial Solar Energy System
The Jingsun 8KW Hybrid Inverter can also be used for commercial solar energy systems. This inverter can handle multiple strings of PV panels, allowing it to handle larger loads. The inverter also includes the ability to connect to a backup diesel generator, providing an additional level of reliability to the system.

he industry.

Agricultural Applications
The Jingsun 8KW Hybrid Inverter can be used in agricultural applications such as greenhouses and livestock farming. By integrating solar energy with battery storage, livestock owners can have a consistent source of power for their farms, even during power outages.
