710 Watt Solar Panel
video
710 Watt Solar Panel

710 Watt Solar Panel

Model Number: JAM132D-710 Bifacial
Material: Monocrystalline Silicon
Power: 710W
Products Description

Type

PERC

Panel Efficiency

22.9%

Front Glass

2.0 mm (0.08 inches), High Transmission AR Coated Heat Strengthened Glass

Back Glass

2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass)

Panel Size

2384*1303*35mm

Solar Cell Size

Mono 210*210mm

No. of Cells

132(6x22)

Weight

38.7kg±3%

Warranty

30years

Certificate

TUV,CE,IEC,INMERTO,ISO

Application Class

Class A

Frame

Anodized Aluminium Alloy

Junction Box

IP68 ,3Diodes



Product Advantages

●The 710W solar panel is a high power module that uses the latest half-cut technology to make each cell a complete cut, avoiding hidden cracks. The half-cell design reduces operating current and hot spot temperature, ensuring high module power. 12BB's multi-gate design allows the module to collect current efficiently and consistently.

●With LID and PID resistance, its double-glazed design gives the modules enhanced weather resistance. Excellent power generation performance is maintained regardless of areas with high humidity, acid rain and salt spray. With zero water permeability and very low annual decay rate, power generation efficiency and service life are greatly optimised.

●The 710W module has superior wear resistance, insulation, water resistance and load carrying capacity compared to ordinary backsheets. It has a better heat dissipation capability and its fire rating is Class A, with excellent fire performance. Its working environment has a wider temperature range, and its excellent irradiation performance and excellent working temperature ensure the photovoltaic conversion rate of the solar panel.

1

1

2

3

4



Electrical Parameters At STC

Maximum Power (Pmax)

710Wp

Maximum Power Voltage (Vmp)

39.8V

Maximum Power Current (lmp)

17.86A

Open-Circuit Voltage (Voc)

45.94V

Short-Circuit Current (lsc)

18.85A

Power Tolerance

0~+5W

Temperature Coefficients of Pmax

-0.362%°C

Temperature Coefficients of Voc

-0.262%°C

Temperature Coefficients of lsc

+0.042%°C

STC (Standard Testing Conditions)

lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G



Electrical Parameters At NOCT

Maximum Power (Pmax)

761Wp

Maximum Power Voltage (Vmp)

39.80V

Maximum Power Current (lmp)

19.12A

Open-Circuit Voltage (Voc)

45.94V

Short-Circuit Current (lsc)

20.14A

Irradiance radio (rear/front) 10%

Power Bifaciality: 70±10%

Maximum System Voltage

1000V/1500V DC(IEC)

Operating Temperature

-40°C~+85°C

Maximum Series Fuse

30/35A

Front Side Maximum Static Loading

5400pa,1.5

Rear Side Maximum Static Loading

2400pa,1.5

Application Class

Class A

NOCT(Nominal Operating Cell Temperature)

lrradiance 800W/㎡, Ambient Temperature 20°C, Winds peed 1m/s ,AW1.5G



Applications

●Solar power can be used in a wide range of applications, basically wherever there is sunlight. There are countless examples of solar power systems being set up in homes. The use of solar power is increasing in both developed and developing countries, and in the long term, solar power for the home is an investment with a very good return on investment.

●In addition to the use of solar power in homes, there are also many countries that are developing solar power projects. Many countries are laying out solar power stations in a distributed approach within their regions with the aim of moving away from dependence on non-renewable resources such as oil and gas. From an environmental point of view, the pollution generated by the production and transport of solar panels is almost negligible compared to other non-renewable energy sources. To a large extent, it plays a positive role in protecting the environment.

●In terms of technological development, solar power is a green and renewable energy source. Traditional electricity generation is generated by burning resources to produce heat energy which is then converted into mechanical energy. Solar power, on the other hand, generates electricity directly from light energy and has a very low energy loss rate. In the field of aerospace, the role of solar power cannot be ignored. Both satellites and space stations require the use of solar power systems. As technology continues to develop, solar power stations can be set up in outer space or even on the moon to provide energy supplies for exploring the stars.

1

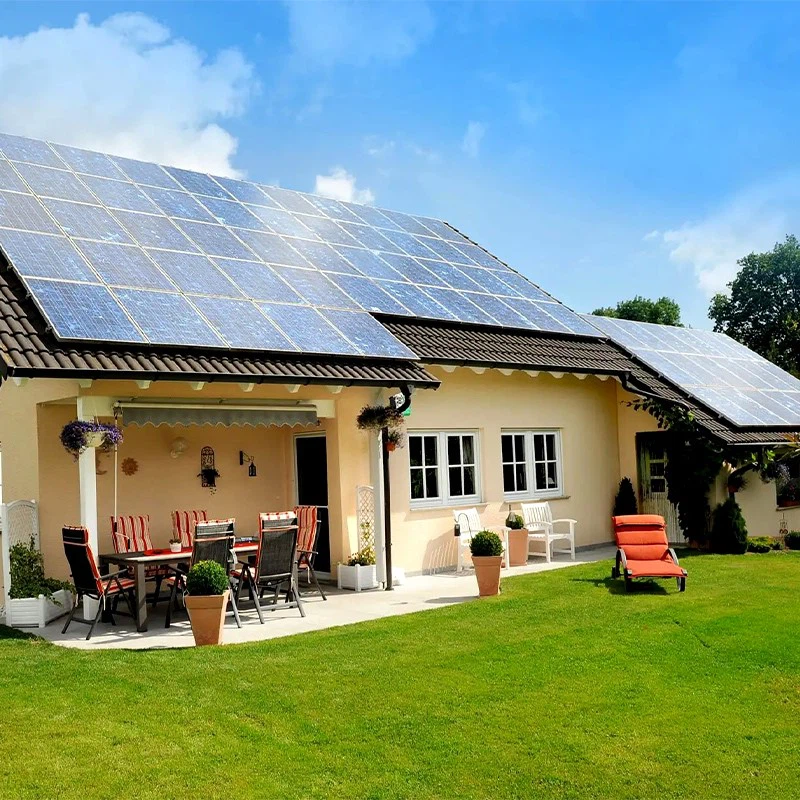

Home Solar Power

2

Photovoltaic Power Station

3

Solar Space Station

4

Lunar Photovoltaic Power Generation

Brand Cooperation

Leading solar panel manufacturer Jingsun is proud to announce cooperation with top solar panel as well as inverter brand. Our partnerships ensure our customers receive only the highest quality solar panels and inverters for their home or business. Partnering with these top brands ensures quality products and efficient and reliable solar systems. By choosing Jingsun and our trusted partners, customers can rest easy knowing they are making a smart investment in their energy future. Join our mission to make renewable energy accessible to everyone.



product-1200-298



FAQ

Q:Why choose a 710W solar panel instead of 2 or 3 270W ones?

A:High power elements have a greater open circuit voltage than low power elements and can save installation space, making them simpler and easier to install and saving installation costs.

Q:Are solar panels worth the investment?

A:Depending on your electricity prices, power consumption, location and desire to be environmentally friendly, using a solar power system is an absolutely excellent choice. The advantages will become more apparent over time.

Q:What is the maximum wattage of solar panels you can provide?

A: The maximum is 710W for Type P and 750W for Type N

Q:Why choose us?

A:Our products are rigorously tested and certified to meet the standards of industry leaders. We use the latest production technology and mature scientific production processes to have lower manufacturing costs, with the same performance and quality, we have a price advantage. We have a comprehensive after-sales service system.
