Product Advantages
1. N-type i-TOPCon Bifacial Dual Glass: This innovative solar panel uses N-type silicon and i-TOPCon (Industrial Tunnel Oxide Passivated Contact) technology, which allows for up to 30% higher efficiency compared to traditional solar panels. It also uses bifacial cells that capture light from both the front and back of the panel, increasing energy yield.
2. Lower LCOE: The Trina 620W solar panel has a lower Levelized Cost of Energy (LCOE) compared to other solar panels in its class. This makes it a more cost-effective option for renewable energy generation.
3. Reduced BOS Cost: The Trina 620W solar panel has a lower balance of system (BOS) cost due to its high power output and greater efficiency. This can save businesses and homeowners money on installation costs.
4. Better ROI: Due to the Trina 620W solar panel's high efficiency, it allows for a faster return on investment (ROI) compared to other solar panel options. This means businesses and homeowners can recoup their investment in solar energy sooner.
5.Up to 23.0% Module Efficiency: The Trina 620W solar panel has a module efficiency of up to 23.0%, which is among the highest in its class. This translates into more energy production per unit area of the solar panel, making it an excellent investment for those looking to maximize their energy output.

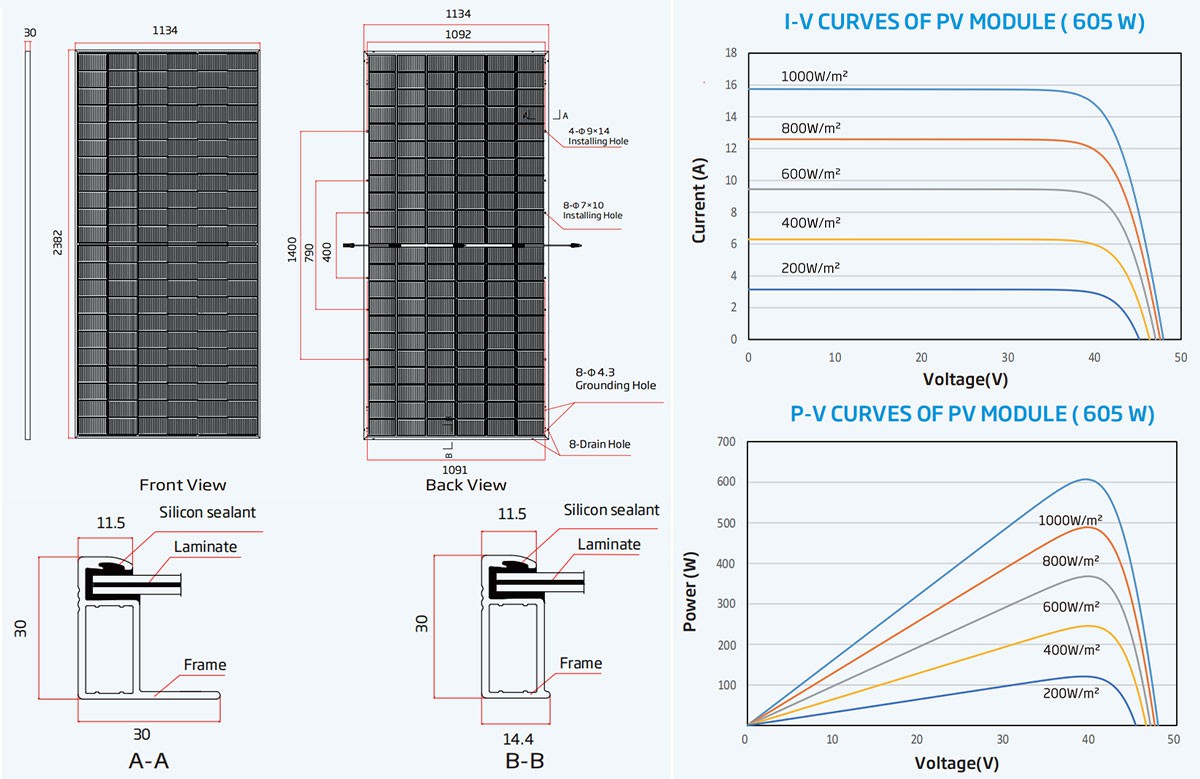

Dimensions Of PV Module(mm)
Mechanical Data
|
Solar Cells |
N-type i-TOPcon Monocrystalline |
|
No. of cells |
132cells |
|
Module Dimensions |
2382×1134×30 mm (93.78×44.65×1.18 inches) |
|
Weight |
33.7kg (74.3 lb) |
|
Front Glass |
2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass |
|
Encapsulant material |
EVA/POE |
|
Back Glass |
2.0 mm (0.08 in), Heat Strengthened Glass (White Grid Glass) |
|
Frame |
30mm(1.18 inches) Anodized Aluminium Alloy |
|
J-Box |
IP 68 rated |
|
Cables |
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 350/280 mm (13.78/11.02 in) Landscape: N 1400 mm /P 1400 mm (55.12/55.12 inches) |
|
Connector |
MC4 EVO2/TS4 Plus / TS4 |
|
Fire Type |
Type 29 |
Electrical Data (STC)
|
Peak Power Watts-PMAX |
590Wp |
595Wp |
600Wp |
605Wp |
610Wp |
615Wp |
620Wp |
|
Power Tolerance-PMAX |
0 ~ +5W |
||||||
|
Maximum Power Voltage-VMPP |
39.7V |
40.0V |
40.3V |
40.5V |
40.8V |
41.1V |
41.4V |
|
Maximum Power Current-IMPP |
14.86A |
14.89A |
14.91A |
14.94A |
14.96A |
14.98A |
14.99A |
|
Open Circuit Voltage-VOC |
47.8V |
48.1V |
48.4V |
48.7V |
49.0V |
49.3V |
49.6V |
|
Short Circuit Current-ISC |
15.72A |
15.76A |
15.80A |
15.83A |
15.86A |
15.89A |
15.91A |
|
Module E ciency η m |
21.8% |
22.0% |
22.2% |
22.4% |
22.6% |
22.8% |
23.0% |
|
Measuring tolerance |
±3% |
||||||
|
STC |
Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5 |
||||||
Electrical Data (NOCT)
|
Peak Power Watts-PMAX |
450Wp |
454Wp |
459Wp |
462Wp |
466Wp |
470Wp |
474Wp |
|
Power Tolerance-PMAX |
0 ~ +5W |
||||||
|
Maximum Power Voltage-VMPP |
37.4V |
37.6V |
37.9V |
38.1V |
38.3V |
38.6V |
38.8V |
|
Maximum Power Current-IMPP |
12.05A |
12.07A |
12.11A |
12.13A |
12.16A |
12.19A |
12.20A |
|
Open Circuit Voltage-VOC |
45.4V |
45.7V |
46.0V |
46.2V |
46.5V |
46.8V |
47.1V |
|
Short Circuit Current-ISC |
12.67A |
12.69A |
12.73A |
12.75A |
12.78A |
12.80A |
12.82A |
|
NOCT |
Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s |
||||||
Electrical characteristics with di erent power bin (reference to 5% & 10% backside power gain)
|
Backside Power Gain |
5% |
10% |
5% |
10% |
5% |
10% |
5% |
10% |
5% |
10% |
5% |
10% |
5% |
10% |
|
Total Equivalent power -PMAX (Wp) |
620 |
649 |
625 |
655 |
630 |
660 |
635 |
666 |
641 |
671 |
646 |
677 |
651 |
682 |
|
Maximum Power Voltage-VMPP (V) |
39.7 |
39.7 |
40.0 |
40.0 |
40.3 |
40.3 |
40.5 |
40.5 |
40.8 |
40.8 |
41.1 |
41.1 |
41.4 |
41.4 |
|
Maximum Power Current-IMPP (A) |
15.60 |
16.35 |
15.63 |
16.38 |
15.66 |
16.40 |
15.69 |
16.43 |
15.71 |
16.46 |
15.73 |
16.48 |
15.74 |
16.49 |
|
Open Circuit Voltage-VOC (V) |
47.8 |
47.8 |
48.1 |
48.1 |
48.4 |
48.4 |
48.7 |
48.7 |
49.0 |
49.0 |
49.3 |
49.3 |
49.6 |
49.6 |
|
Short Circuit Current-ISC (A) |
16.51 |
17.29 |
16.55 |
17.34 |
16.59 |
17.38 |
16.62 |
17.41 |
16.65 |
17.45 |
16.68 |
17.48 |
16.71 |
17.50 |
|
Power Bifaciality |
80±5% |
|||||||||||||
Performance Parameters
|
Temperature Ratings |
NOCT(Nominal Operating Cell Temperature) |
43°C (±2°C) |
|
Temperature Coe cient of PMAX |
- 0.29%/°C |
|
|
Temperature Coe cient of VOC |
- 0.24%/°C |
|
|
Temperature Coe cient of ISC |
0.04%/°C |
|
|
Maximum Ratings |
Operational Temperature |
-40~+85ºC |
|
Maximum System Voltage |
1500V DC (IEC) |
|
|
Max Series Fuse Rating |
30A |
|
|
Packaging Configuration |
Modules per box |
36 pieces |
|
Modules per 40' container |
540 pieces |
|
|
Warranty |
12 year Product Workmanship Warranty |
|
|
30 year Power Warranty |
||
|
1% rst year degradation |
||
|
0.40% Annual Power Attenuation |
||

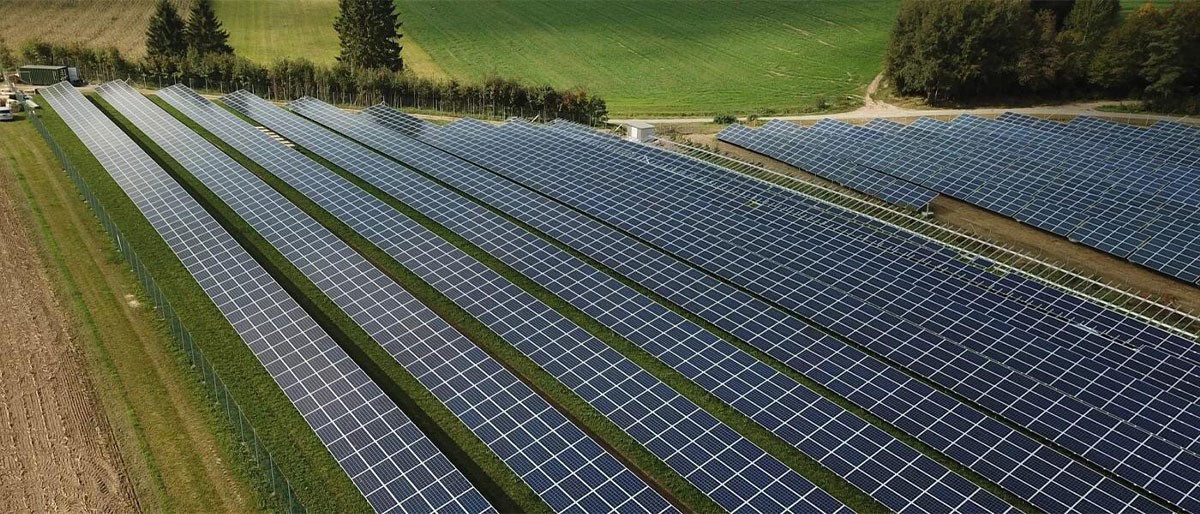

Application Scenarios
1. Residential Solar Power Systems:
Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panels are a great option for residential solar power systems. They can be installed on the roof of a home, providing clean and efficient power for everyday use. These panels are especially effective for homes located in areas with frequent cloudy or overcast weather conditions, as their bifacial design allows them to capture sunlight from both sides. Homeowners who invest in this system can enjoy energy savings year-round, while also reducing their carbon footprint.
2. Agricultural Use:
Farmers can also benefit from Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panels. These panels can be used to power irrigation systems, livestock fencing, and other essential equipment on the farm. With the panels' high efficiency and low light performance, they can operate even on cloudy days, ensuring continuous power for farming operations. Additionally, the panels' dual-glass construction ensures durability and longevity, making them a cost-effective investment for farmers.
3. Commercial And Industrial Applications:
Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panels can be used in a variety of commercial and industrial settings. They are ideal for powering warehouses, factories, and other large-scale operations, helping businesses to reduce their energy costs and carbon footprint. With their bifacial design, these panels can be easily installed on rooftops or open fields, providing flexible options for companies seeking to adopt solar power.
Brand Cooperation
Jingsun New Energy Technology Co., Ltd. is proud to have established deep collaborations with numerous top-tier solar energy companies in China. Our company is committed to advancing the development and implementation of cutting-edge solar energy technologies to help create a cleaner, greener and more sustainable future.
Through these strategic partnerships, we have gained comprehensive access to the latest advances in solar energy research, development and manufacturing processes. This has enabled us to continuously improve the quality and efficiency of our solar energy products, while also maintaining strong customer relationships and delivering high levels of satisfaction.
At Jingsun New Energy Technology, we are passionate about leveraging the power of solar energy to help drive positive change across a wide range of industries and applications. We believe that our deep collaborations with leading solar energy companies in China will help us achieve this goal and enable us to play a meaningful role in shaping a brighter future for us all.
FAQ
Q: What is Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panel and how does it work?
Q: What is the advantage of using a bifacial solar panel like the Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panel?
Q: How much electricity can the Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panel generate?
Q: Can the Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panel be installed on residential homes?
Q: What is the warranty for the Trina 620W N-type i-TOPCon Bifacial Dual Glass solar panel?
