Products Description
1. Unique Cell Structure:

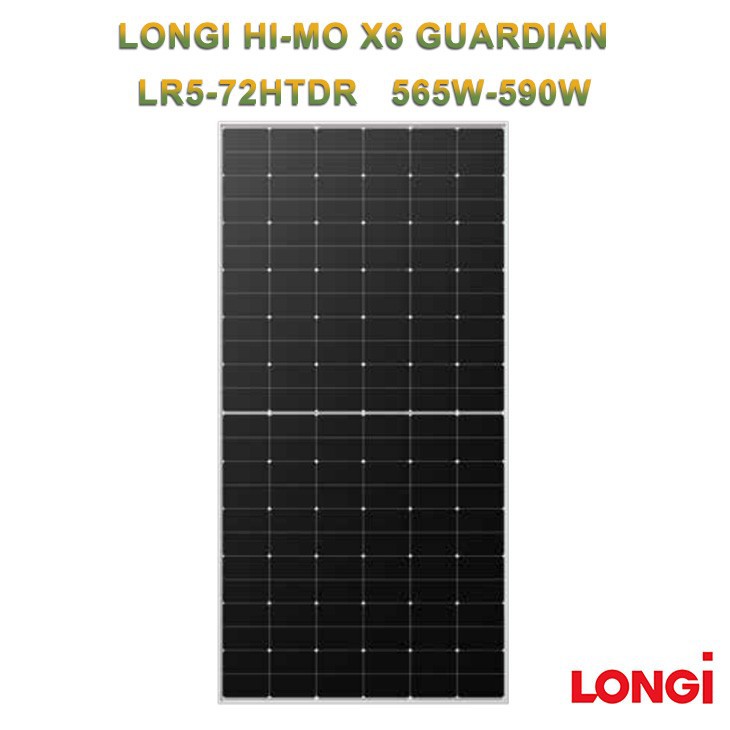

The Longi 590W double-glass solar panel has a unique cell structure that optimizes the conversion of solar energy into electricity. This results in higher energy yields as compared to conventional solar panels.
2. Superior Resistance to Humidity & Heat Degradation:
The Longi 590W double-glass solar panel is built to withstand harsh weather conditions and is highly resistant to humidity and heat degradation. This allows it to maintain its efficiency even in extreme conditions.
3. Water-resistant Encapsulation:
The solar panel'swater-resistant encapsulation provides excellent protection against moisture intrusion, ensuring that the panel operates optimally and efficiently.
4. Ultra-Low Power Degradation:
The Longi 590W double-glass solar panels have an extremely low power degradation rate, which means that it delivers a consistent output throughout its lifecycle. Therefore, the panel has a superior power generation capability.
5. LONGi System Escort:
LONGi System Escort is a safety feature that provides reliable use of the Longi 590W double-glass solar panel. This feature ensures that the panel operates safely and securely, providing peace of mind to the user.
Specifications
Electrical Characteristics At STC
|
Module Type |
LR5-72HTDR-565M |
LR5-72HTDR-570M |
LR5-72HTDR-575M |
LR5-72HTDR-580M |
LR5-72HTDR-585M |
LR5-72HTDR-590M |
|
Rated Maximum Power(Pmax) |
565W |
570W |
575W |
580W |
585W |
590W |
|
Open Circuit Voltage(Voc) |
51.85V |
52.00V |
52.15V |
52.30V |
52.45V |
52.60V |
|
Short Circuit Current(lsc) |
13.93A |
14.00A |
14.06A |
14.13A |
14.19A |
14.26A |
|
Max Power Voltage(Vmp) |
43.40V |
43.55V |
43.70V |
43.85V |
44.00V |
44.15V |
|
Max Power Current(lmp) |
13.02A |
13.09A |
13.16A |
13.23A |
13.30A |
13.37A |
|
Module Efficiency |
21.9% |
22.1% |
22.3% |
22.5% |
22.6% |
22.8% |
|
Power Tolerance |
0~+5W |
|||||
|
Temperature Coefficient of lsc(α_lsc) |
+0.050%/°C |
|||||
|
Temperature Coefficient of Voc(β_Voc) |
-0.230%/°C |
|||||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.280%/°C |
|||||
|
STC |
Irradiance 1000W/㎡,cell temperature 25°C,AM1.5G |
|||||
Electrical Characteristics At NOCT
|
Module Type |
LR5-72HTDR-565M |
LR5-72HTDR-570M |
LR5-72HTDR-575M |
LR5-72HTDR-580M |
LR5-72HTDR-585M |
LR5-72HTDR-590M |
|
Rated Maximum Power(Pmax) |
422W |
426W |
430W |
433W |
437W |
431W |
|
Open Circuit Voltage(Voc) |
48.68V |
48.82V |
48.96V |
49.10V |
49.25V |
49.39V |
|
Short Circuit Current(lsc) |
11.25A |
11.31A |
11.36A |
11.41A |
11.46A |
11.52A |
|
Max Power Voltage(Vmp) |
39.60V |
39.74V |
39.88V |
40.01V |
40.15V |
40.29V |
|
Max Power Current(lmp) |
10.66A |
10.72A |
10.77A |
10.83A |
10.89A |
10.96A |
Electrical Characteristics With Different Rear Side Power Gain (reference to 575W front)
|
Pmax /W |
Voc/V |
Isc /A |
Vmp/V |
Imp /A |
Pmax gain |
|
604 |
52.15 |
14.76 |
43.70 |
13.82 |
5% |
|
633 |
52.15 |
15.47 |
43.70 |
14.48 |
10% |
|
661 |
52.25 |
16.17 |
43.80 |
15.13 |
15% |
|
690 |
52.25 |
16.87 |
43.80 |
15.79 |
20% |
|
719 |
52.25 |
17.58 |
43.80 |
16.45 |
25% |
Operating Parameters
|
Maximum System Voltage |
DC 1500V (IEC) |
|
Operating Temperature |
-40°C~+85°C |
|
Power Output Tolerance |
0~3% |
|
Maximum Series Fuse |
30A |
|
Maximum Static Load,Front |
5400Pa(112lb/ft²) |
|
Maximum Static Load,Back |
2400Pa(50Ib/ft²) |
|
NOCT |
45±2°C |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|
Protection Class |
Class II |
Application Scenarios
1. Large Commercial Buildings: The superior performance of Longi 590W double glass solar panels makes them an ideal choice for powering large commercial buildings. These panels are capable of generating a high amount of electricity, making them ideal for industrial and commercial buildings with high energy needs. They can be utilized to power the facility's lighting, heating and cooling systems, and other energy-intensive equipment. With a high power output and long lifespan, these panels provide a dependable and cost-effective solution for powering commercial spaces.

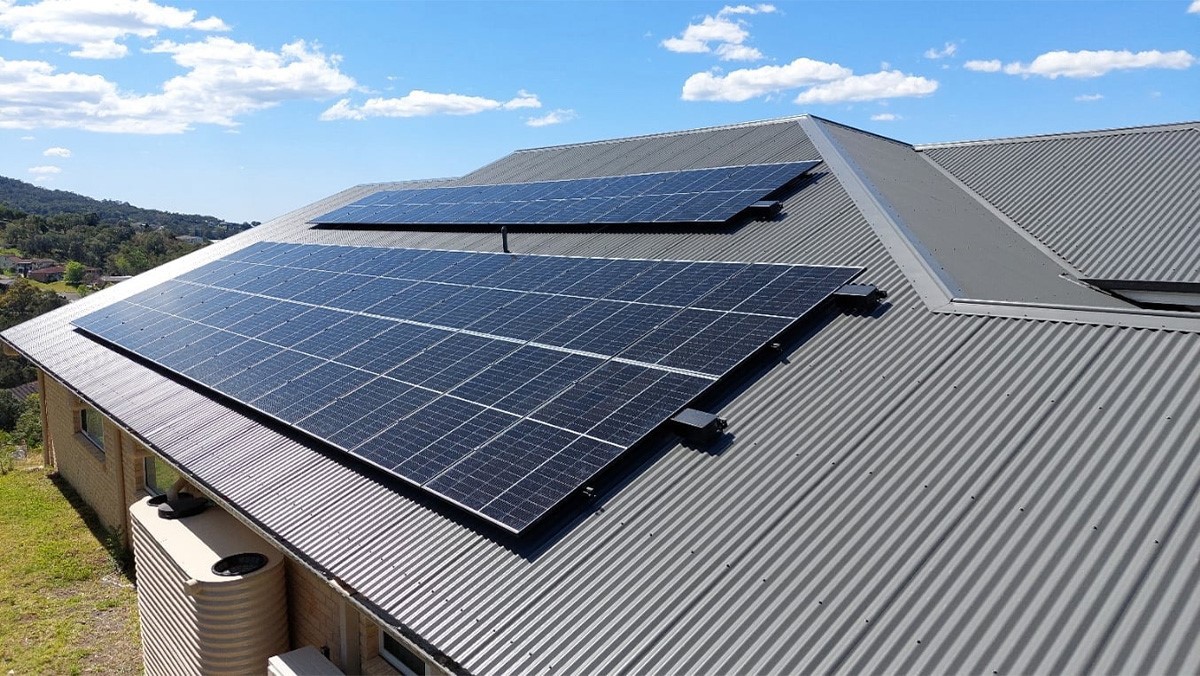

2. Residential Rooftops: Longi 590W double glass solar panels can also be implemented for residential rooftops, providing an affordable and eco-friendly solution for powering homes. The panels can generate sufficient power to meet the energy needs of an average household, including all the electrical appliances and heating/cooling systems. The panels are durable, long-lasting, and can withstand various weather conditions, making them an ideal choice for rooftop installations.
3. Solar Farms: Large solar farms require highly efficient and durable panels to maximize their energy output. The Longi 590W double glass solar panels are perfect for large-scale solar projects, providing ample power output, durability, and resistance to environmental challenges. These panels are easy to install, operate, and maintain, making them an attractive option for large-scale renewable energy projects.
Brand Collaboration
Jingsun is a first-tier high-end solar energy enterprise in China and has long-term strategic cooperation with many leading domestic and foreign first-tier solar energy companies. These partners have strong technical strength and production capabilities in the solar energy industry chain, providing Jingsun with excellent resources to continuously update and improve its products.
In this fiercely competitive market, Jingsun continues to seek new technological innovations and market opportunities, and works with partners to continuously improve product quality and performance to meet the growing needs of customers. At the same time, Jingsun also actively shares its own experience and information, and discusses the prospects and trends of the development of the solar energy industry with its partners.
FAQ
Q: What are the advantages of Longi 590W double glass solar panel?
Q: What is the application scope of double glass solar panels?
Q: How to install double glass solar panels?
Q: Do double glass solar panels require maintenance?
Q: How often can double glass solar panels be replaced?
