Detailed Steps And Precautions For Installing Solar Panels On The Roof

1. Roof Assessment And Planning

Structural inspection: Confirm the load-bearing capacity of the roof (need ≥30kg/m²), and check for cracks, aging or leaks.

Orientation and inclination: Prefer south orientation (northern hemisphere), and adjust the inclination according to the local latitude (generally consistent with the latitude) to ensure maximum light throughout the year.

Shading analysis: Avoid shadows from surrounding trees, chimneys or buildings blocking solar panels (tools can be used to calculate the shadow range).

2. Apply For Permits And Policies

Apply for construction permits from local housing and construction departments, and submit grid connection applications to power companies (if grid connection is required).

Understand local subsidy policies (such as China's "photovoltaic subsidies" or Europe and the United States' "net metering electricity prices").

3. Materials And Tools Preparation

Main components: solar panels, inverters (based on system selection: centralized/string/micro-inverter), bracket system (aluminum alloy/galvanized steel), cables (4-6mm² DC line), distribution box, grounding device.

Tool list: electric drill, expansion bolts, wrench, multimeter, infrared rangefinder, safety belt, safety rope, etc.

1. Install The Bracket

Positioning and marking: mark the bracket fixing points according to the design drawings to ensure that the horizontal error is less than 2mm.

Fix the base: Use waterproof rubber pads and galvanized bolts to fix the bracket base. Tile roofs need to use special hooks to avoid tile joints.

Adjust the angle: Set the optimal inclination angle through the adjustable parts of the bracket (adjust according to the local vertical angle of the sun)

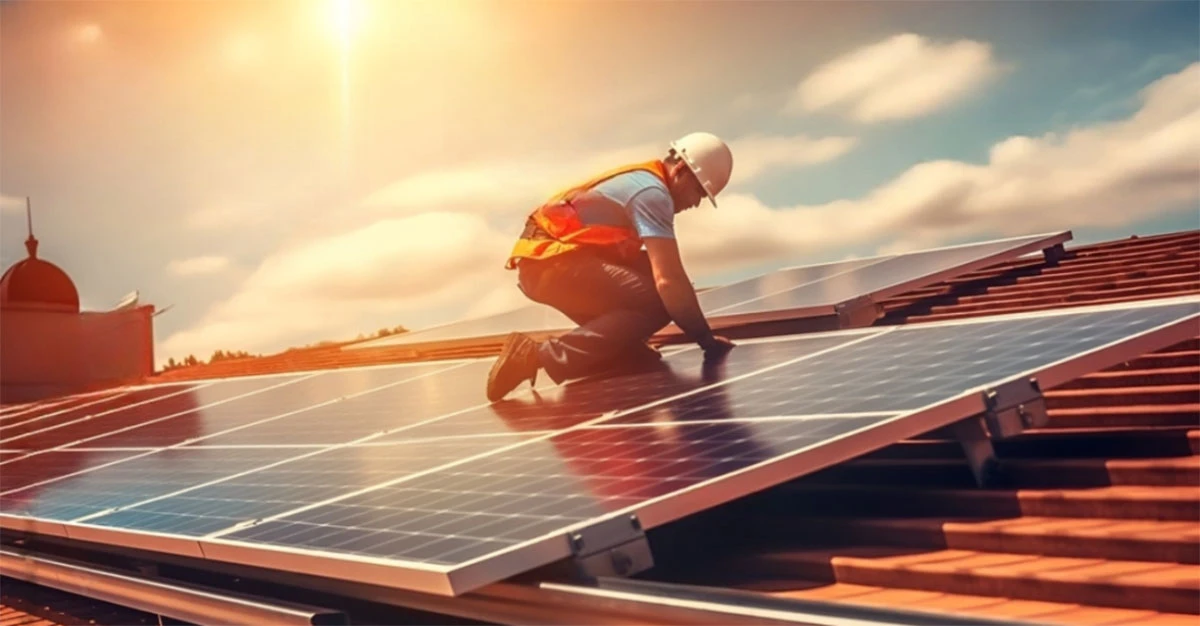

2. Lay The Solar Panels

Fix the panel: Use a block or clamp to fix the solar panel on the bracket, and keep a 5-10cm heat dissipation gap between the panels.

Series wiring: Connect components in series/parallel according to the designed voltage, use MC4 waterproof connectors to connect the lines, and mark the positive and negative poles.

3. Electrical System Installation

Inverter installation: Select a ventilated and rainproof location (such as under the eaves), connect the DC input end to the solar panel, and connect the AC output end to the grid or load.

Distribution box configuration: Install DC circuit breakers, lightning protectors and leakage switches to ensure independent protection of each circuit.

Grounding treatment: All metal brackets and inverter housings are connected to the grounding grid, and the grounding resistance is <4Ω.

4. System Debugging

Open circuit voltage test: Use a multimeter to detect whether the string voltage is consistent with the design value (within ±5% error).

Insulation test: Use a megohmmeter to measure the insulation resistance of the cable to the ground (should be >1MΩ).

Grid-connected trial operation: Start the inverter gradually and monitor the synchronization status of the generated power and the grid.

1. Safety Regulations

Anti-electric shock: Disconnect the power supply before wiring, wear insulating gloves; construction is prohibited on rainy days.

Fall prevention: Use double-hook safety belts and set guardrails on the edge of the roof.

Fire prevention measures: Keep cables away from flammable materials and fill cable troughs with fireproof mud.

2. Technical Requirements

Cables need to be reserved to avoid pulling; AC and DC lines are routed separately.

The inverter and component power are matched (the over-matching ratio is recommended to be 1.1-1.2 times).

Anti-PID (potential induced degradation) components should be used in cold areas to avoid power generation losses.

3. Maintenance And Regulations

Regular inspection: Clean the panel every quarter (avoid scratches with hard objects), check the tightness of the bolts and the aging of the cables.

Data monitoring: Install smart meters or APP to track abnormal power generation.

Scrap disposal: Contact professional organizations for component recycling (lead and cadmium materials require environmental protection).

Low power generation: Check for shading, component damage or inverter failure.

Roof leaks: Reseal the bracket base and fill the holes with polyurethane waterproof glue.

Grid power failure: The grid-connected system needs to be equipped with automatic power failure protection to prevent the island effect.

The above steps and precautions can ensure the efficient and safe operation of the rooftop photovoltaic system. It is recommended that the first installation be guided by a professional team, and complex roof structures (such as color steel tiles and slope tiles) require customized installation plans.
