Product Description
|
Type |
PERC |
|
Panel Efficiency |
22.9% |
|
Back Sheet Color |
Black or Sliver |
|

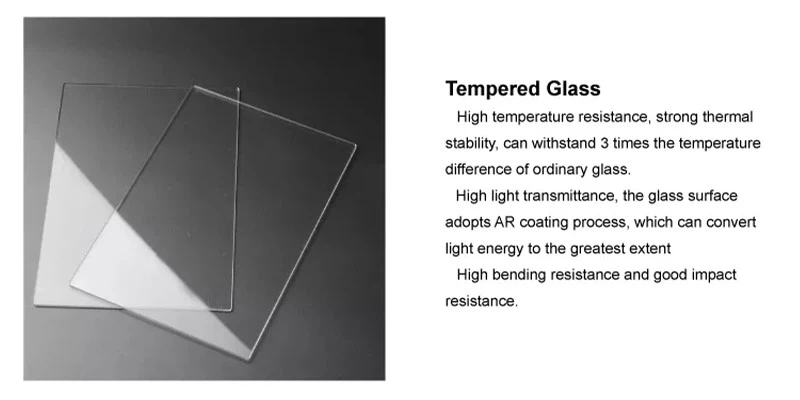

Front Glass |
2.0 mm (0.08 inches), High Transmission AR Coated Heat Strengthened Glass |
|
Panel Size |
2384*1303*35mm |
|

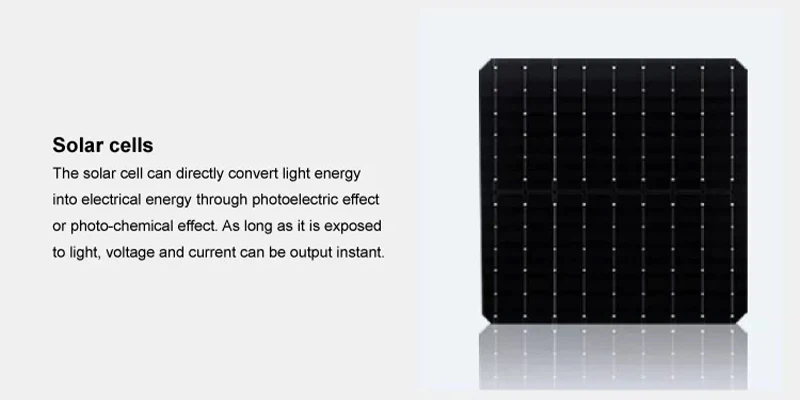

Solar Cell Size |
Mono 210*210mm |
|
No. of Cells |
132(6x22) |
|
Weight |
38.7kg±3% |
|
Warranty |
30years |
|
Certificate |
TUV,CE,IEC,INMERTO,ISO |
|
Application Class |
Class A |
|

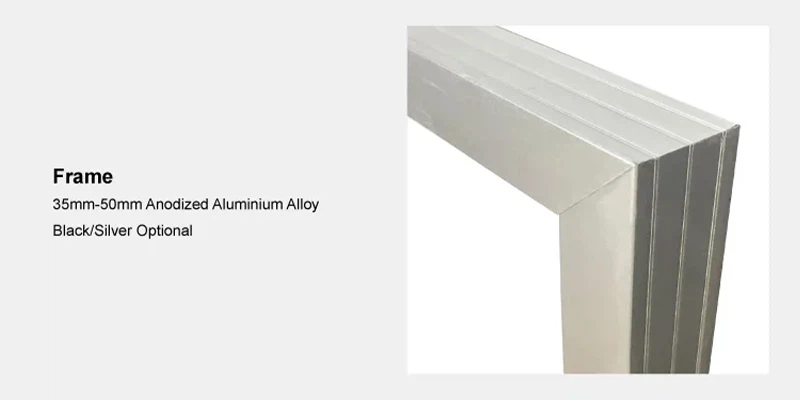

Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 ,3Diodes |
Product Advantages
- High Efficiency: Jingsun700W solar panel offers a high efficiency rate, converting solar energy into electricity with maximum efficiency. This means that it can generate more power in a smaller amount of space, providing greater energy output for your needs.
- Long Lifespan: Jingsun700W solar panels are designed with a long lifespan in mind, providing years of reliable service. With proper care and maintenance, these solar panels can last for several decades, making them a smart investment in the long term.
- Durable Construction: The solar panels are built with high-quality materials that can withstand harsh weather conditions, ensuring they can perform optimally even in extreme environments. The panels are also resistant to corrosion, rust, and damage caused by UV rays.
- Low Maintenance: The solar panels require minimal maintenance, reducing the long-term cost of ownership. The panels are designed with self-cleaning surfaces that shed dirt, dust, and debris, ensuring they remain free of obstructions and maintain maximum efficiency over time.
Electrical Parameters at STC
|
Maximum Power (Pmax) |
700W |
|
Maximum Power Voltage (Vmp) |
39.4V |
|
Maximum Power Current (lmp) |
17.78A |
|
Open-Circuit Voltage (Voc) |
45.54V |
|
Short-Circuit Current (lsc) |
18.81A |
|
Power Tolerance |
0~+5W |
|
Temperature Coefficients of lsc |
+0.042%°C |
|
Temperature Coefficients of Voc |
-0.262%°C |
|
Temperature Coefficients of Pmax |
-0.362%°C |
|
STC (Standard Testing Conditions) |
lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G |
Electrical Parameters at NOCT
|
Maximum Power (Pmax) |
532W |
|
Maximum Power Voltage (Vmp) |
36.9V |
|
Maximum Power Current (lmp) |
14.51A |
|
Open-Circuit Voltage (Voc) |
42.99V |
|
Short-Circuit Current (lsc) |
15.24A |
|
Maximum System Voltage |
1000/1500V DC(IEC) |
|
Operating Temperature |
-40°℃-+85℃ |
|
Maximum Series Fuse |
30/35A |
|
Maximum Static Load,Front |
5400Pa, 1.5 |
|
Maximum Static Load,Back |
2400Pa, 1.5 |
|
NOCT(Nominal Operating Cel Temperature) |
45±2℃ Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G |
Applications
The Jingsun 700W solar panel is ideal for off-grid living, providing a reliable source of electricity for homes, cabins, RVs, and remote locations where grid power is unavailable.
The Jingsun 700W solar panel is perfect for powering agricultural and industrial machinery, providing reliable and efficient energy for irrigation systems, pumps, and other equipment.
Brand Cooperation
Leading solar panel manufacturer Jingsun is proud to announce cooperation with top solar panel as well as inverter brand. Our partnerships ensure our customers receive only the highest quality solar panels and inverters for their home or business. Partnering with these top brands ensures quality products and efficient and reliable solar systems. By choosing Jingsun and our trusted partners, customers can rest easy knowing they are making a smart investment in their energy future. Join our mission to make renewable energy accessible to everyone.
Technical Support
As a dedicated provider of solar panel solutions, Jingsun is committed to delivering unrivaled technical support to customers long after the sale is made. Here are some ways in which Jingsun caters to its customers:
1. Multiple delivery options: Jingsun understands the varied needs of its customers and provides various shipping options to suit their preferences and budget. From air and sea freight to express delivery, we will work with customers to select the most convenient and efficient transportation mode.
2. Remote installation guidance: In order to ensure a smooth and hassle-free installation process, Jingsun offers remote installation guidance to customers. With our experienced technical team, we can help customers troubleshoot any unforeseen issues and ensure the solar system is installed correctly.
3. Customized system solutions: Jingsun recognizes that every customer's needs are unique, and we are happy to provide customized system solutions tailored to meet their specific requirements. Whether it's residential or commercial, on-grid or off-grid, our experts can design a system that maximizes efficiency and cost-effectiveness.
In conclusion, Jingsun takes great pride in offering comprehensive technical support to its customers, which is an integral part of our company's commitment to excellence. We always strive to provide the best possible service to our customers and enable them to reap the benefits of clean and renewable energy.
FAQ
Q: What are the advantages of using a 700W mono silicon solar panel?
Q: Is the Jingsun700W solar panel compatible with different types of solar inverters?
Q: Can the Jingsun700W monocrystalline solar panel be customized to fit specific requirements?
