Risen 500W

Risen 500W

Brand Model: RSM150-8-485M-510M
Module Type: High Performance Monocrystalline PERC Module
Power:485-510W
Product Advantages

1. High Performance Monocrystalline PERC Module: Risen 500W solar panel uses high-performance monocrystalline PERC (Passivated Emitter Rear Cell) module technology. PERC technology helps to improve the light-to-electricity conversion of the panel and ultimately results in higher energy yields.



2. Anti-reflective & Anti-soiling Surface: The Risen 500W solar panel has an anti-reflective & anti-soiling surface that minimizes power loss from dirt and dust. This ensures that the panel maintains its efficiency levels and produces optimal energy in all weather conditions.



product-1200-318



3. Severe Salt Mist, Ammonia & Blown Sand Resistance: This solar panel is perfect for seaside, farm, and desert environments. It is specially designed to resist severe salt mist, blown sand, and ammonia, making it highly durable and long-lasting.



4. Excellent Mechanical Load Resistance: The Risen 500W solar panel can withstand mechanical loads of up to 2400Pa and snow loads of up to 5400Pa. This means that it can withstand harsh weather conditions, making it perfect for use in areas with extreme climates.



5. Sustainability: In addition to its high performance and durability, the Risen 500W solar panel is also a sustainable choice for energy production. It harnesses solar energy, a renewable source of energy, and helps to reduce our carbon footprint. By choosing this solar panel, you are taking a step towards a cleaner and greener future.



product-1200-292

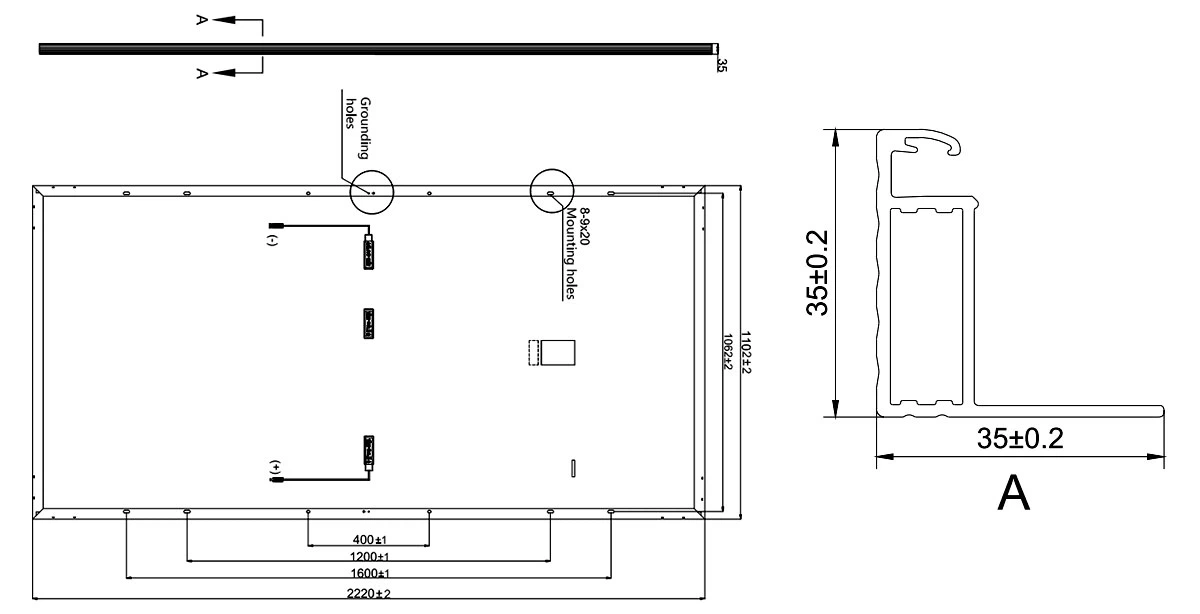

Engineering Drawing (mm)



product-1200-614



Mechanical Data

Solar Cells

Monocrystalline

Cell Configuration

150 cells (5×15+5×15)

Module Dimensions

2220×1102×35mm

Weight

27±1kg

Superstrate

High Transmission, Low Iron, Tempered ARC Glass

Substrate

White Back-sheet

Frame

Anodized Aluminium Alloy type 6005-2T6, Silver Color

J-Box

Potted, IP68, 1500VDC, 3 Schottky bypass diodes

Cables

4.0mm² , Positive(+)350mm, Negative(-)350mm (Connector Included )

Connector

Risen Twinsel PV-SY02, IP68



product-1200-490



Electrical Parameters At STC

Model Number

RSM150-8-485M

RSM150-8-490M

RSM150-8-495M

RSM150-8-500M

RSM150-8-505M

RSM150-8-510M

Rated Power in Watts-Pmax

485W

490W

495W

500W

505W

510W

Open Circuit Voltage-Voc

50.35V

50.57V

50.79V

51.01V

51.23V

51.45V

Short Circuit Current-Isc

12.25A

12.32A

12.39A

12.46A

12.53A

12.60A

Maximum Power Voltage-Vmpp

42.22V

42.44V

42.66V

42.88V

43.10V

43.32V

Maximum Power Current-Impp

11.50A

11.56A

11.62A

11.68A

11.74A

11.80A

Module Efficiency (%)

19.8%

20.0%

20.2%

20.4%

20.6%

20.8%

STC

Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3

Module Efficiency(%)

Round-off to the nearest number



Electrical Parameters At NMOT

Model Number

RSM150-8-485M

RSM150-8-490M

RSM150-8-495M

RSM150-8-500M

RSM150-8-505M

RSM150-8-510M

Maximum Power-Pmax

367.7W

371.5W

375.4W

379.3W

383.2W

387.1W

Open Circuit Voltage-Voc

46.83V

47.03V

47.23V

47.44V

47.64V

47.85V

Short Circuit Current-Isc

10.05A

10.10A

10.16A

10.22A

10.27A

10.33A

Maximum Power Voltage-Vmpp

39.18V

39.38V

39.59V

39.79V

40.00V

40.20V

Maximum Power Current-Impp

9.38A

9.43A

9.48A

9.53A

9.58A

9.63A

NMOT

Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s

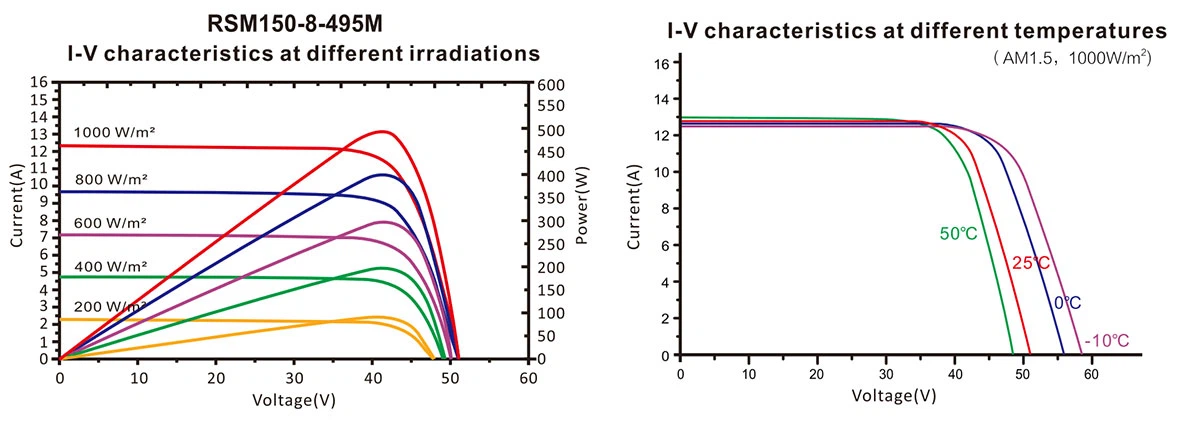

product-1200-429



product-531-60



Temperature & Maximum Ratings

Nominal Module Operating Temperature (NMOT)

44°C±2°C

Temperature Coefficient of Voc

-0.25%/°C

Temperature Coefficient of Isc

0.04%/°C

Temperature Coefficient of Pmax

-0.34%/°C

Operational Temperature

-40°C~+85°C

Maximum System Voltage

1500VDC

Max Series Fuse Rating

20A

Limiting Reverse Current

20A



Applications

1. Risen 500W solar panels are perfect for residential homes looking to switch to clean, renewable energy sources. By utilizing the power of the sun, homeowners can reduce their carbon footprint and save money on their electricity bills.



product-1200-429



2. These solar panels can also be utilized for commercial buildings, helping businesses reduce their operating costs and improve their environmental impact. From retail shops to office buildings, Risen 500W solar panels make green energy more accessible for all.



3. Risen 500W solar panels are ideal for off-grid living and remote locations. These panels can be used to power cabins, RVs, boats, and other recreational vehicles, making it possible for people to live self-sufficiently and sustainably.



product-1200-578



Brand Cooperation

Jingsun has established a long-lasting partnership with numerous leading solar energy companies. These collaborations have helped Jingsun to constantly improve their technology and provide high-quality products and services to their customers.



Through these long-term partnerships, Jingsun has gained a wealth of experience and knowledge in the solar industry. They have been able to learn from and work with some of the most innovative and successful solar energy companies in the world. This has helped Jingsun to develop their expertise and provide cutting-edge solar technology solutions to their customers across the globe.



In conclusion, Jingsun's strong partnerships with world-renowned solar energy companies have been key to their success in the solar industry. These partnerships have enabled Jingsun to constantly innovate, improve product quality, and provide top-notch services to their customers.



product-1200-298

Packaging And Shipping

Our skilled team takes pride in ensuring that each solar panel arrives safely at its destination, no matter the distance or conditions. We also work closely with our shipping partners to make sure that every step of the transport process is carefully monitored, and that any issues are quickly resolved.



With Jingsun Solar Company, you can trust that your solar panels will be packaged and shipped with the utmost care and attention to detail. Whether you're a homeowner, a business owner, or a developer, our commitment to quality and reliability will help you achieve your renewable energy goals with confidence. Choose Jingsun Solar Company for the highest quality solar panel packaging and transportation available.



product-1200-486



FAQ

Q: What is the Risen 500W solar panel and what are its features?

A: The Risen 500W solar panel is a high-performance solar panel that generates electricity by converting sunlight into electrical energy. Its key features include high efficiency, durability, and reliability, making it an excellent choice for residential and commercial solar energy systems.

Q: How does the Risen 500W solar panel work?

A: The Risen 500W solar panel works by capturing sunlight and converting it into direct current (DC) electricity. An inverter then converts the DC electricity into alternating current (AC) electricity, which can be used to power homes, appliances or other electrical devices.

Q: What are the benefits of using the Risen 500W solar panel?

A: The benefits of using the Risen 500W solar panel include lower energy bills, reduced carbon emissions, and increased energy independence and security. In addition, the panel is easy to install and requires minimal maintenance, making it a cost-effective choice for businesses and homeowners alike.

Q: How long does the Risen 500W solar panel last?

A: The Risen 500W solar panel is designed to last for 25 years or more, with a relatively low rate of degradation over time. This means that you can expect reliable performance from your solar panel for many years to come, making it a worthwhile investment for your home or business.

Q: Can the Risen 500W solar panel be used in all types of weather?

A: Yes, the Risen 500W solar panel is designed to withstand a variety of weather conditions, including rain, snow, and hail. The panel is also highly resistant to wear and tear, making it a reliable choice for use in all types of environments.
