Product Advantages
1. Dual-Sided Power Generation
This solar panel offers an innovative dual-sided design, allowing it to generate power from both the front and back surfaces. This means that it can capture additional sunlight reflected off the ground or other surfaces to increase overall power output. With this added advantage, the Jinko 590W Bifacial panel can offer greater energy efficiency and savings for its users.
2. High Efficiency
With a power output of up to 590W, this solar panel delivers remarkable performance levels. It features advanced technologies such as half-cell architecture and multi-busbar design that ensure improved module efficiency and durability. These features make the Jinko solar panel an excellent investment, providing users with high-quality and reliable power generation.
3. Anti-PID Guarantee
This solar panel also comes with a comprehensive Anti-PID guarantee that ensures its performance over time. PID (Potential Induced Degradation) is a common issue in solar panels where the output of the panel drops due to exposure to environmental factors such as humidity, temperature, and voltage. But with Jinko's Anti-PID guarantee, users can be confident that their panels will maintain their performance over their lifetime.
4. Superior Durability
Built with high-quality materials, this solar panel has a robust, weather-resistant design that can withstand even the harshest weather conditions. Whether it's extreme heat, cold, wind, or rain, users can rest assured that their Jinko solar panels will deliver dependable performance for years to come.
5. Eco-Friendly
By investing in the Jinko 590W Bifacial solar panel, users can contribute to a cleaner and more sustainable future. Solar energy is a renewable and eco-friendly source of power that produces zero harmful emissions or pollutants. By harnessing the sun's energy, users can reduce their carbon footprint and help protect the environment for future generations.
Specifications
Mechanical Characteristics
|
Cell Type |
N -type Mono-crystalline |
|
No. of cells |
144(72x2) |
|
Dimensions |
2278x1134x30mm |
|
Weight |
31.0 kg |
|
Front Glass |
2.0 mm, Anti-Reflection Coating |
|
Back Glass |
2.0 mm, Heat Strengthened Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
lp68 Rated |
|
Protection Class |
Class ll |
|
IEC Fire Type |
Class C |
|
0utput cables |
4.0 mm²：(+): 400 mm ,(-): 200 mm or customized Length |
Electrical Characteristics At STC
|
Maximum Power - Pmax |
570Wp |
575Wp |
580Wp |
585Wp |
590Wp |
|
Maximum Power Voltage - Vmp |
43.58V |
43.73V |
43.88V |
44.02V |
44.17V |
|
Maximum Power Current - Imp |
13.08A |
13.15A |
13.22A |
13.29A |
13.36A |
|
Open-circuit Voltage - Voc |
52.10V |
52.30V |
52.50V |
52.70V |
52.90V |
|
Short-circuit Current - Isc |
13.83A |
13.89A |
13.95A |
14.01A |
14.07A |
|
Module Efficiency STC |
22.07% |
22.26% |
22.45% |
22.65% |
22.84% |
|
Power Tolerance |
0~+3% |
||||
|
Temperature Coefficients of Pmax |
-0.290%/°C |
||||
|
Temperature Coefficients of Voc |
-0.250%/°C |
||||
|
Temperature Coefficients of Isc |
+0.045%/°C |
||||
|
STC |
lrradiance 1000w/m2, Cell Temperature 25oc, AM=1.5 |
||||
Electrical Characteristics At NOCT
|
Maximum Power - Pmax |
430Wp |
433Wp |
437Wp |
441Wp |
445Wp |
|
Maximum Power Voltage - Vmp |
40.56V |
40.73V |
40.89V |
41.05V |
41.21V |
|
Maximum Power Current - Imp |
10.59A |
10.64A |
10.69A |
10.74A |
10.79A |
|
Open-circuit Voltage - Voc |
49.49V |
49.68V |
49.87V |
50.06V |
50.25V |
|
Short-circuit Current - Isc |
11.16A |
11.21A |
11.26A |
11.31A |
11.36A |
Operating Parameters
|
Maximum System Voltage |
1500VDC (IEC) |
|
Operating Temperature |
-40°C~+85°C |
|
Maximum Series Fuse |
30A |
|
Maximum Static Load,Front |
5400Pa(112lb/ft²) |
|
Maximum Static Load,Back |
2400Pa(50Ib/ft²) |
|
NOCT |
45±2°C |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
|
Fire Rating |
UL type 1 or2IEC Class C |
Electrical Performance
Application Scenarios

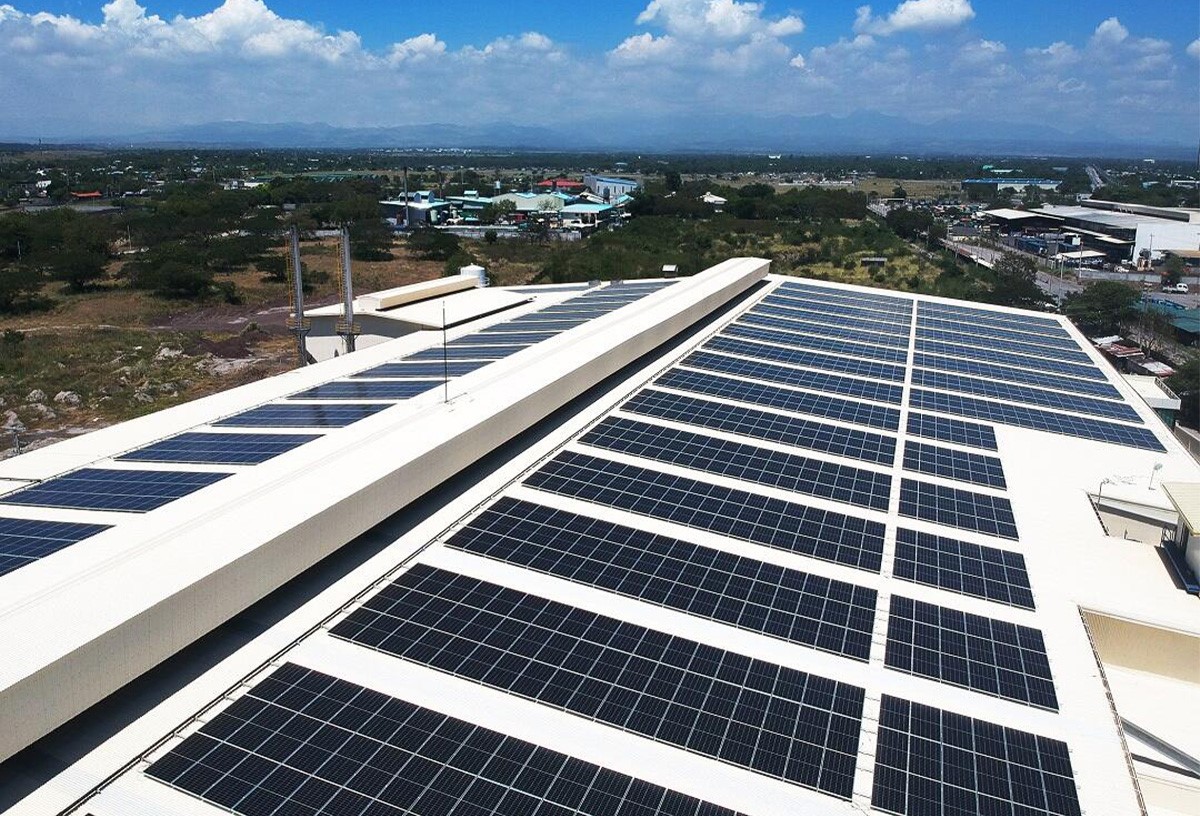

1. Commercial and Industrial Rooftop Installations
With its high-efficiency and bifacial nature, the Jinko 590W Bifacial solar panel is an excellent choice for commercial and industrial rooftop installations. Its ability to generate energy from both sides of the panel can maximize energy output while taking up less space than traditional solar panels. This makes it ideal for businesses looking to reduce their energy costs and carbon footprint.

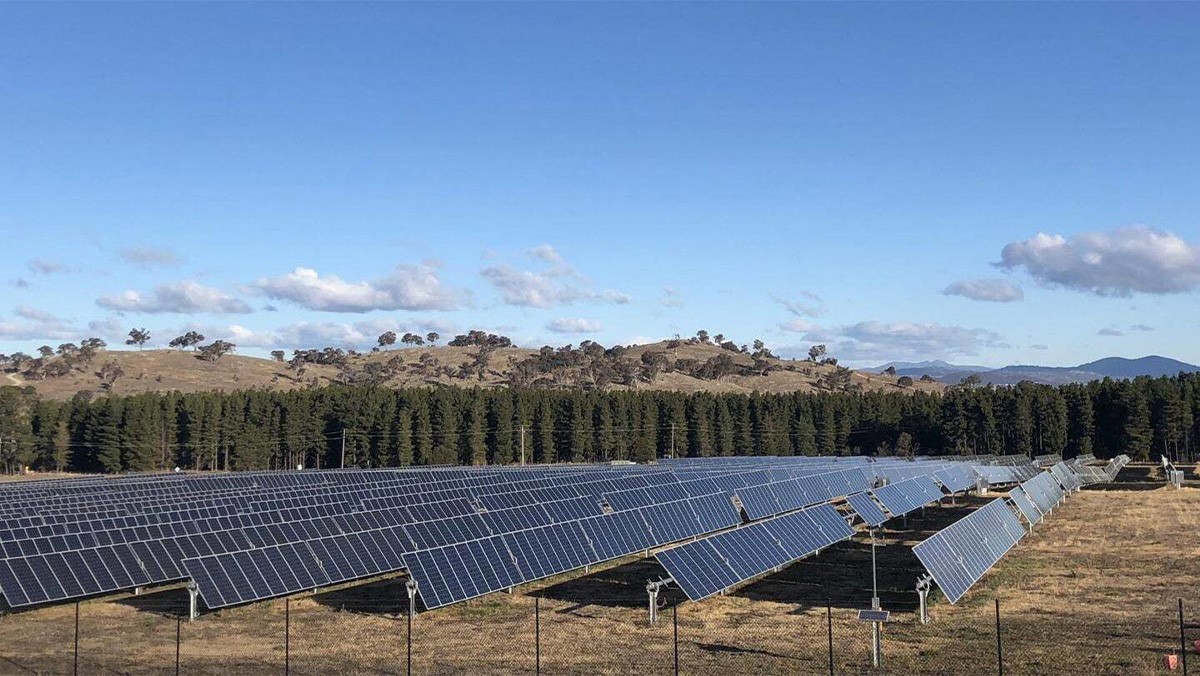

2. Ground-Mounted Solar Farms
Ground-mounted solar farms are another great application for the Jinko 590W Bifacial solar panel. As these farms are typically located in open areas, the ability of the panel to capture light from both sides can lead to up to 30% more power generation in ideal conditions. Additionally, the high efficiency of these panels can help solar farms generate more revenue and reduce their overall cost per watt.

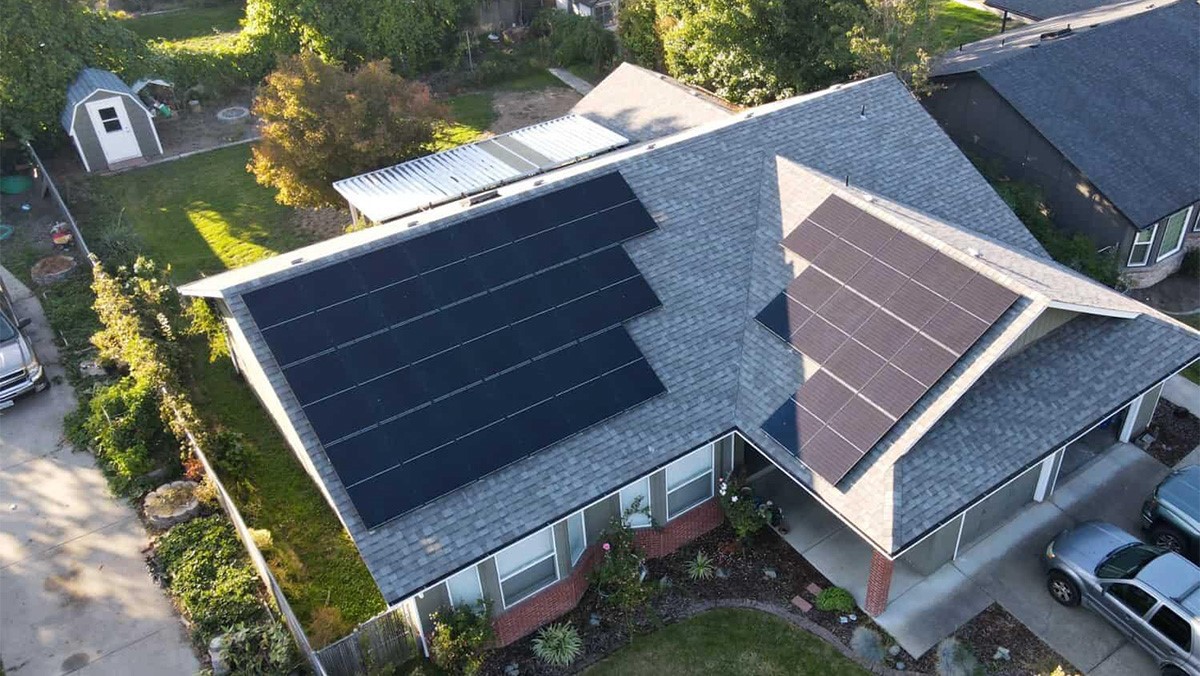

3. Residential Rooftop Installations
Homeowners looking to lower their electricity bills and reduce their carbon footprint can also benefit from the Jinko 590W Bifacial solar panel. With its high efficiency and bifacial nature, these panels can generate more power than traditional solar panels on smaller rooftops. Additionally, homeowners can potentially generate more revenue by selling excess energy back to the grid. Overall, Jinko 590W Bifacial solar panels are an excellent choice for any application requiring high efficiency, durability, and maximum energy output.
Brand Cooperation
Jingsun, as a leading solar energy solution provider, is pleased to announce our long-term partnership with several top-tier solar energy companies in China. We have established strong relationships with these companies, including those that specialize in energy storage systems and inverters, in order to bring our customers the best products and services available.
Our partnership with these leading solar energy companies allows us to continuously innovate and expand our product offerings to better serve our customers. By working closely with these industry experts, Jingsun can offer cutting-edge solutions and technologies to meet the diverse needs of residential, commercial, and industrial customers alike.
FAQ
Q: What makes Jinko 590W Bifacial Module With Dual Glass so practical?
Q: How does the bifacial technology in Jinko 590W panels work?
Q: Can I use Jinko 590W bifacial modules for my home?
Q: How does the dual glass feature in Jinko 590W modules work?
Q: Are Jinko 590W bifacial modules difficult to install?
