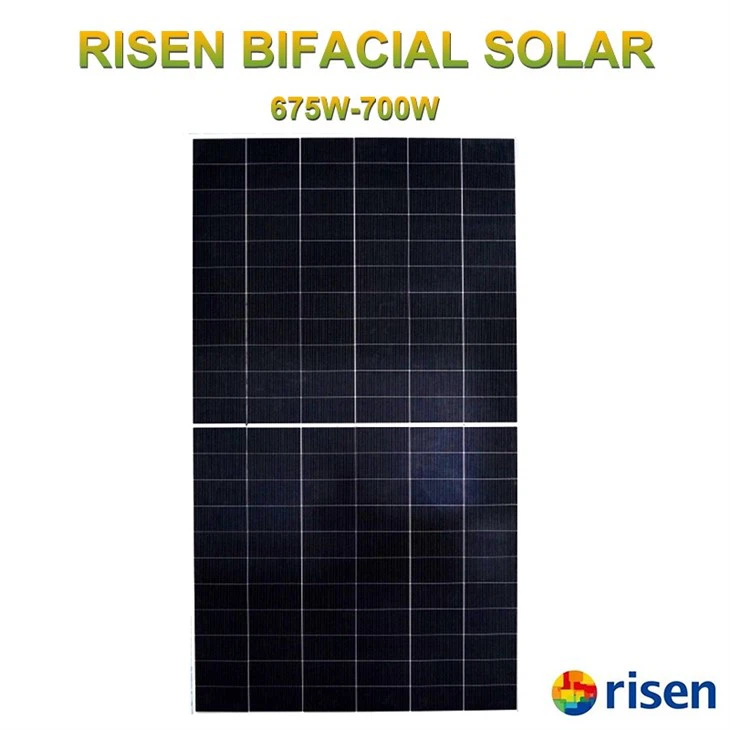

Risen 700 Watt Solar Panel

Risen 700 Watt Solar Panel

Brand Model: RSM132-8-675-700BHDG
Module Type: Bifacial 210-Heterojunction Module
Power:675-700W
Product Advantages
  • High Energy Output: The Risen 700 Watt bifacial solar panel delivers a high-energy output, which means they can produce more energy per panel than traditional solar panels. This helps to maximize the amount of energy that can be produced and increase the return on investment.
  • Bifacial Technology: The bifacial technology used in these panels allows them to capture sunlight from both sides, increasing the amount of energy they can produce. They are designed to get energy from the front of the panel and also from the rear side, which enables them to produce up to 25% more energy compared to traditional solar panels.



risen 700 watt solar panel advantages



Durability: The Risen 700 Watt bifacial solar panel is built with high-quality materials that make it durable and long-lasting. They can withstand harsh weather conditions, including extreme temperatures, heavy rain, and snow.

Easy Installation: These panels are designed to be easy to install, no matter what type of building or structure they are being installed on. The installation process is quick and straightforward, which ensures that the panels can start generating electricity as soon as they are set up.

Eco-friendly: The Risen 700 Watt bifacial solar panel produces clean energy, which does not harm the environment. By using these panels, you can contribute to reducing the carbon footprint and minimizing the use of non-renewable resources. Additionally, using solar panels can potentially lower the overall carbon emissions in the atmosphere and help combat climate change.

Risen 700 watt solar panel related certificate



Engineering Drawing (mm)



Risen 700 watt solar panel size



Mechanical Data

Solar Cells

Heterojunction cell

Cell Configuration

132 cells (6×11+6×11)

Module Dimensions

2384×1303×35mm

Weight

41kg

Superstrate

High Transmission, AR Coated Heat Strengthened Glass

Substrate

Heat Strengthened Glass

Frame

High strength alloy steel

J-Box

Potted, IP68, 1500VDC, 3 Schottky bypass diodes

Cables

4.0mm² , Positive(+)350mm, Negative(-)230mm (Connector Included )

Connector

Risen Twinsel PV-SY02, IP68



Risen 700 watt solar panel quality assurance



Electrical Parameters At STC

Model Number

RSM132-8-675BMDG

RSM132-8-680BMDG

RSM132-8-685BMDG

RSM132-8-690BMDG

RSM132-8-695BMDG

RSM132-8-700BMDG

Rated Power in Watts-Pmax

675W

680W

685W

690W

695W

700W

Open Circuit Voltage-Voc

49.38V

49.47V

49.56V

49.65V

49.74V

49.83V

Short Circuit Current-Isc

17.40A

17.48A

17.56A

17.66A

17.74A

17.82A

Maximum Power Voltage-Vmpp

41.41V

41.48V

41.56V

41.63V

41.71V

41.78V

Maximum Power Current-Impp

16.32A

16.41A

16.50A

16.60A

16.68A

16.77A

Module Efficiency (%)

21.7%

21.9%

22.1%

22.2%

22.4%

22.5%

STC

Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3



Electrical Characteristics With 10% Rear Side Power Gain

Model Number

RSM132-8-675BMDG

RSM132-8-680BMDG

RSM132-8-685BMDG

RSM132-8-690BMDG

RSM132-8-695BMDG

RSM132-8-700BMDG

Total Equivalent power -Pmax

743W

748W

754W

759W

765W

770W

Open Circuit Voltage-Voc

49.38V

49.47V

49.56V

49.65V

49.73V

49.83V

Short Circuit Current-Isc

19.14A

19.23A

19.32A

19.43A

19.51A

19.60A

Maximum Power Voltage-Vmpp

41.41V

41.48V

41.56V

41.63V

41.71V

41.78V

Maximum Power Current-Impp

17.95A

18.05A

18.15A

18.26A

18.35A

18.44A

*Rear side power gain: The additional gain from the rear side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.



Electrical Parameters At NMOT

Model Number

RSM132-8-675BMDG

RSM132-8-680BMDG

RSM132-8-685BMDG

RSM132-8-690BMDG

RSM132-8-695BMDG

RSM132-8-700BMDG

Maximum Power-Pmax

515.6W

519.3W

523.0W

527.2W

530.9W

534.5W

Open Circuit Voltage-Voc

46.27V

46.35V

46.44V

46.52V

46.61V

46.69V

Short Circuit Current-Isc

14.27A

14.34A

14.40A

14.48A

14.55A

14.61A

Maximum Power Voltage-Vmpp

38.71V

38.78V

38.85V

38.93V

39.00V

39.07

Maximum Power Current-Impp

13.32A

13.39A

13.46A

13.54A

13.61A

13.68A

NMOT

Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s



Technical parameters of RSM132-8-690BHDG



product-531-60



Temperature & Maximum Ratings

Nominal Module Operating Temperature (NMOT)

44°C±2°C

Temperature Coefficient of Voc

-0.25%/°C

Temperature Coefficient of Isc

0.04%/°C

Temperature Coefficient of Pmax

-0.34%/°C

Operational Temperature

-40°C~+85°C

Maximum System Voltage

1500VDC

Max Series Fuse Rating

35A

Limiting Reverse Current

35A



Brand Cooperation

Jingsun, the leading manufacturer of photovoltaic (PV) modules in China, has recently signed long-term strategic partnerships with several top-tier PV companies in the industry. These collaborations will further enhance Jingsun's competitiveness and expand its global presence.



Under these agreements, Jingsun will supply premium quality PV modules to its partners, allowing them to provide cutting-edge solutions to their customers. In turn, these partnerships will enable Jingsun to leverage the expertise of its partners and gain access to new markets. The company believes that this cooperation will bring mutual benefits and create even greater value for customers worldwide.



With a strong commitment to innovation and quality, Jingsun has become a respected player in the PV industry. The company's cutting-edge technology and exceptional products have earned it an outstanding reputation among its customers. By joining forces with other leading PV companies, Jingsun is poised to take its business to the next level and solidify its position as a global leader in the field.



Jingsun's partnerships with the most prominent PV players are a testament to the company's dedication to fostering mutually beneficial relationships and achieving growth. It is a clear indication that Jingsun is positioning itself as a key player in the PV industry and is poised to continue making substantial contributions to the development of clean energy worldwide.

Brand Cooperation

FAQ

Q: What is a bifacial solar panel?

A: A bifacial solar panel is a type of solar panel that can absorb light from both sides. In addition to sunlight from above, it can also use light reflected off the ground or other nearby surfaces. This means that it can generate more power than a traditional single-sided solar panel.

Q: How much power can the Risen 700 Watt bifacial solar panel generate?

A: The Risen 700 Watt bifacial solar panel is capable of generating up to 700 watts of power in optimal conditions. However, the actual amount of power generated will depend on a number of factors, including the amount of sunlight available, the angle of installation, and any shading that may be present.

Q: What are the advantages of using bifacial solar panels?

A: Bifacial solar panels offer a number of advantages over traditional single-sided solar panels. For one, they are able to generate more power thanks to their ability to absorb light from both sides. They are also more efficient when it comes to converting sunlight into electricity, and they can be installed on a range of different surfaces, including flat and sloping roofs.

Q: How long is the warranty for the Risen 700 Watt bifacial solar panel?

A: The Risen 700 Watt bifacial solar panel comes with a 12-year product warranty and a 30-year performance warranty. This means that the panel is guaranteed to perform at a certain level for a minimum of 30 years, which can provide peace of mind and protection for your investment.

Q: Is the Risen 700 Watt bifacial solar panel compatible with my existing solar system?

A: The Risen 700 Watt bifacial solar panel is designed to be compatible with a range of different solar systems and configurations. However, it's always a good idea to consult with a professional before making any changes or additions to your existing solar setup. A skilled installer can help you determine whether the Risen 700 Watt bifacial solar panel is the right choice for your system and can provide expert guidance and advice.
