Name: China Jinko 570Watt Manufacturers Suppliers Factory - Good Price Jinko 570Watt in Stock
Brand: JINGSUN
SKU: 237626867

Product Advantages

1. Higher Efficiency - The Jinko 570W solar panel is highly efficient, providing a maximum power output of 570 watts. This means that the panel generates more power than traditional solar panels of a similar size, making it a great choice for larger installations.

2. Reduced Hot Spot Loss - With the Jinko 570W solar panel, the hot spot loss is reduced, which means that the panel can generate more power even in hot temperatures. This makes it a great choice for areas with high temperatures, such as deserts or tropical locations.

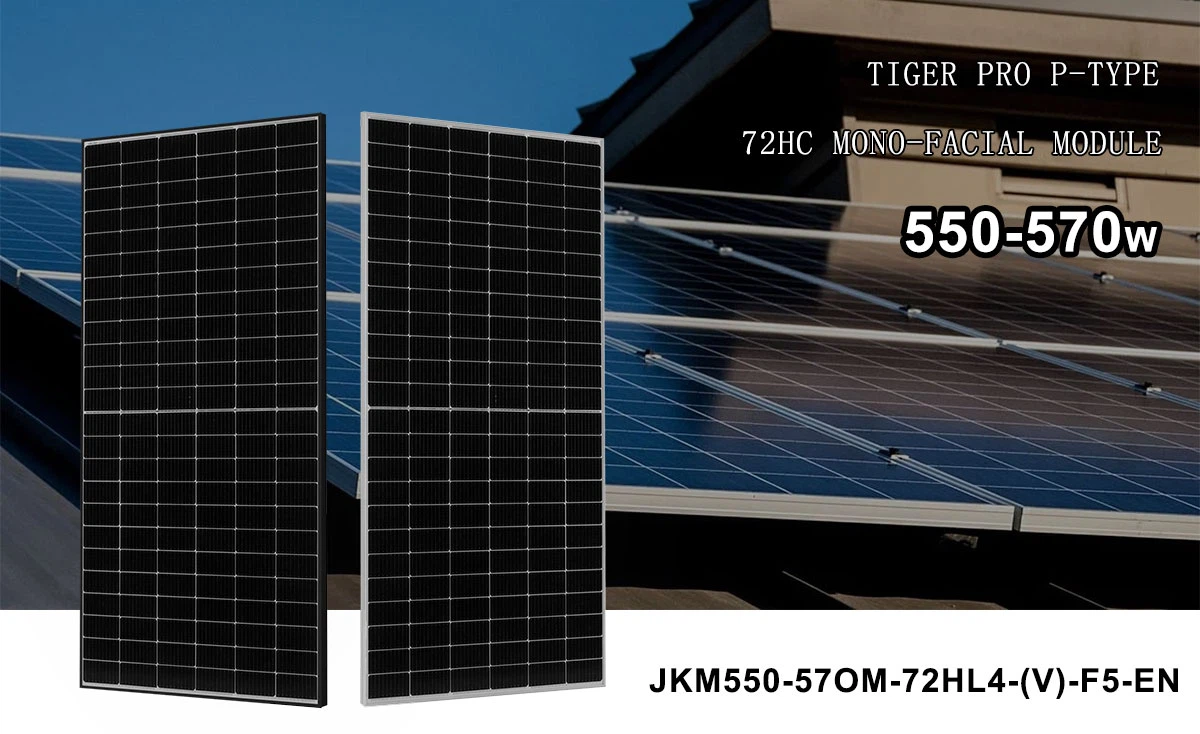

product-1200-734

3. Multi Busbar Technology - The Jinko 570W panel utilizes Multi Busbar Technology, which increases the panel's power output. This technology minimizes the resistance of the electrical flow and enhances the panel's efficiency. This, in turn, leads to better performance and more savings for the end-users.

4. Durability - The Jinko 570W solar panel is designed to be highly durable and long-lasting. It is built with high-quality materials that can withstand extreme weather conditions. The panel is also resistant to salt spray, giving it a longer lifespan in coastal areas.

5.Easy Installation - The Jinko 570W solar panel is easy to install, making it a great choice for both residential and commercial installations. It is designed with a simple mounting structure, allowing for a quick and easy installation process. This means that the panel can be up and running in no time, providing energy savings and environmental benefits for the end-users.

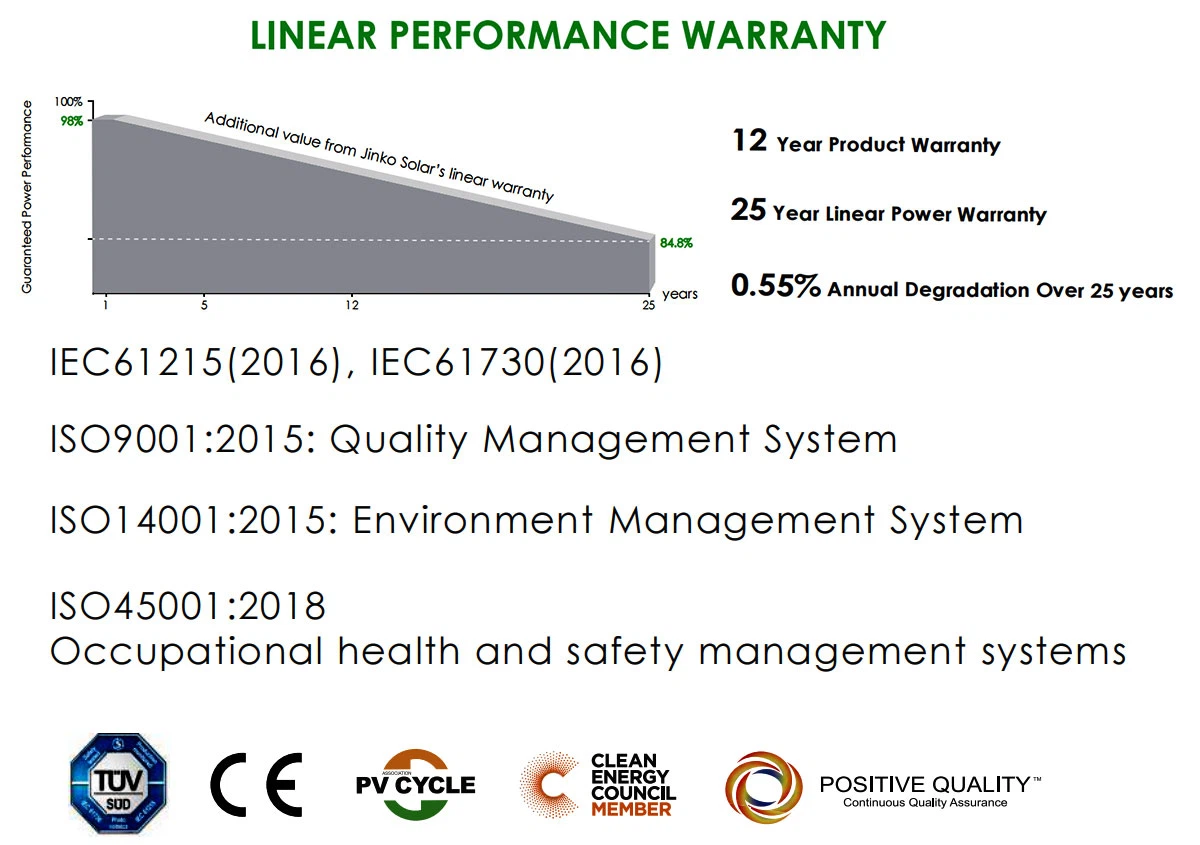

product-1200-845

Specifications

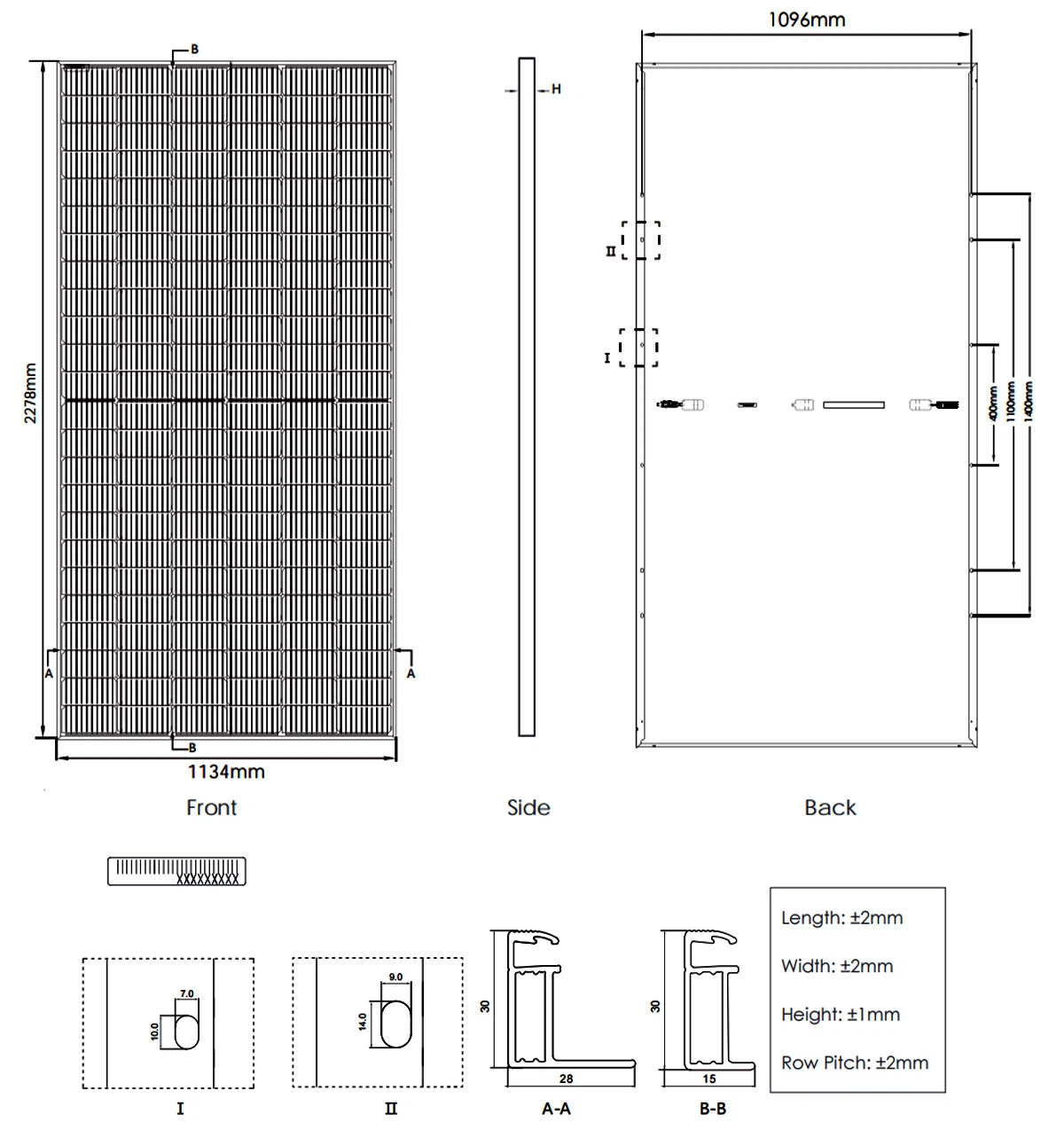

product-1200-1283

Mechanical Characteristics

Cell Type	P -type Mono-crystalline
No. of cells	144 (6x24)
Dimensions	2278×1134×30mm (89.69×44.65×1.18 inch)
Weight	27kg (59.52 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission,Low lron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	lP68 Rated
Protection Class	Class ll
IEC Fire Type	Class C
0utput Cables	4.0 mm²：(+): 400 mm ,(-): 200 mm or customized Length

Electrical Characteristics At STC

Module Type	JKM550M-72HL4	JKM555M-72HL4	JKM560M-72HL4	JKM565M-72HL4	JKM570M-72HL4
Maximum Power - Pmax	550Wp	555Wp	560Wp	565Wp	570Wp
Maximum Power Voltage - Vmp	40.90V	40.99V	41.09V	41.21V	41.34V
Maximum Power Current - Imp	13.45A	13.54A	13.63A	13.71A	13.79A
Open-circuit Voltage - Voc	49.62V	49.72V	49.82V	49.93V	50.04V
Short-circuit Current - Isc	14.03A	14.12A	14.21A	14.30A	14.39A
Module Eﬃciency STC	21.29%	21.48%	21.68%	21.87%	22.07%
Power Tolerance	0~+3%
Temperature Coeﬃcients of Pmax	-0.280%/°C
Temperature Coeﬃcients of Voc	-0.350%/°C
Temperature Coeﬃcients of Isc	+0.048%/°C
STC	lrradiance 1000w/m2, Cell Temperature 25℃, AM=1.5

Electrical Characteristics At NOCT

Module Type	JKM550M-72HL4	JKM555M-72HL4	JKM560M-72HL4	JKM565M-72HL4	JKM570M-72HL4
Maximum Power - Pmax	409Wp	413Wp	417Wp	420Wp	424Wp
Maximum Power Voltage - Vmp	38.42V	38.59V	38.69V	38.74V	38.84V
Maximum Power Current - Imp	10.65A	10.70A	10.77A	10.85A	10.92A
Open-circuit Voltage - Voc	46.84V	46.93V	47.02V	47.13V	47.23V
Short-circuit Current - Isc	11.33A	11.40A	11.48A	11.55A	11.62A

Operating Parameters

Maximum System Voltage	1000/1500V DC (IEC/UL)
Operating Temperature	-40°C~+85°C
Maximum Series Fuse	25A
Maximum Static Load,Front	5400Pa(112lb/ft²)
Maximum Static Load,Back	2400Pa(50Ib/ft²)
NOCT	45±2°C
Hailstone Test	25mm Hailstone at the speed of 23m/s
Protection Class	Class II
Fire Rating	UL type 1 or2IEC Class C

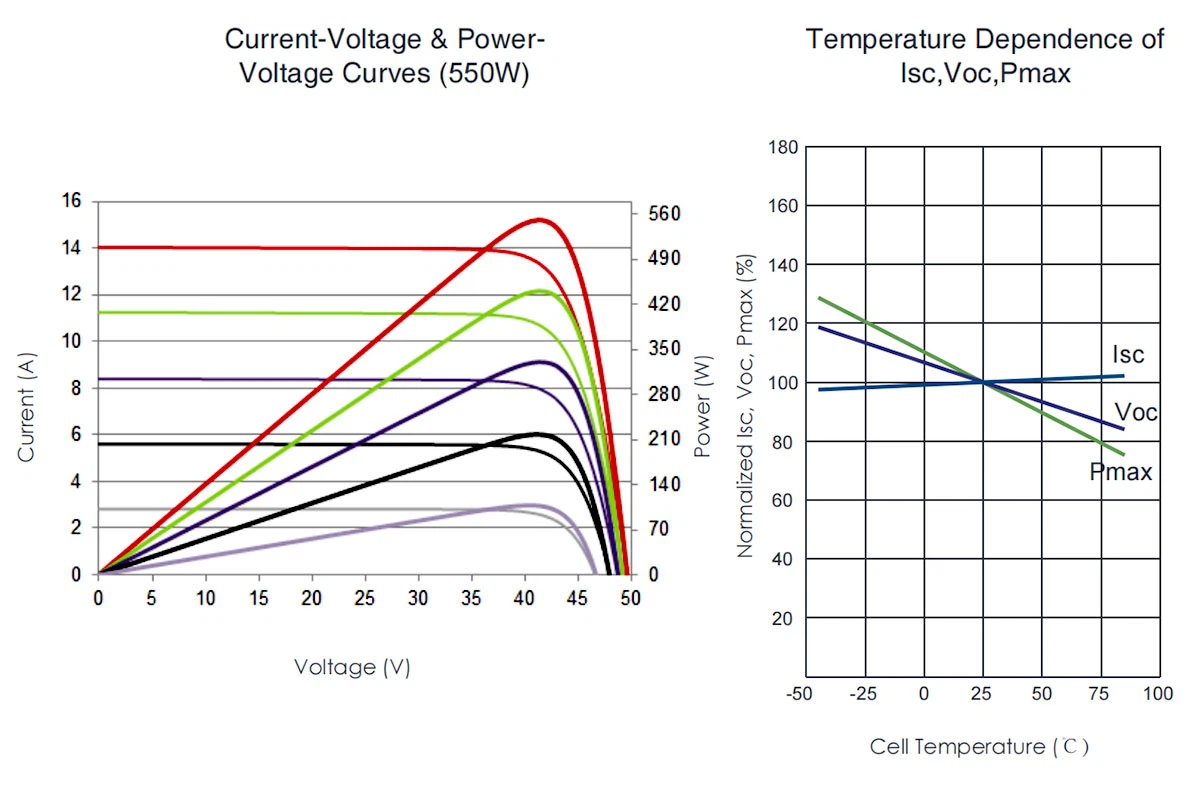

Electrical Performance

product-1200-787

Application Scenarios

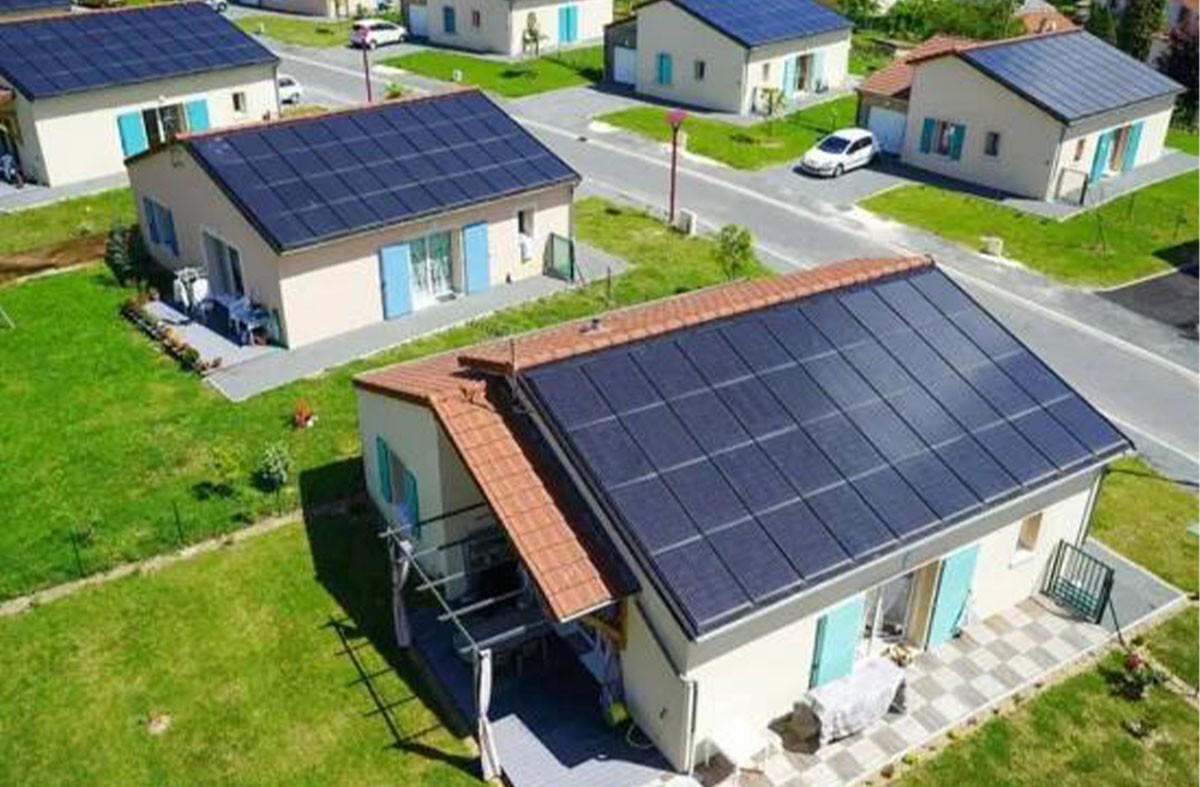

1. Residential: Jinko 570W solar panels are perfect for homeowners who want to take advantage of renewable energy. The high efficiency of these panels means that they can maximize energy production and reduce the reliance on the grid, resulting in significant cost savings on energy bills. They are also easy to install and require little maintenance.

product-1200-787

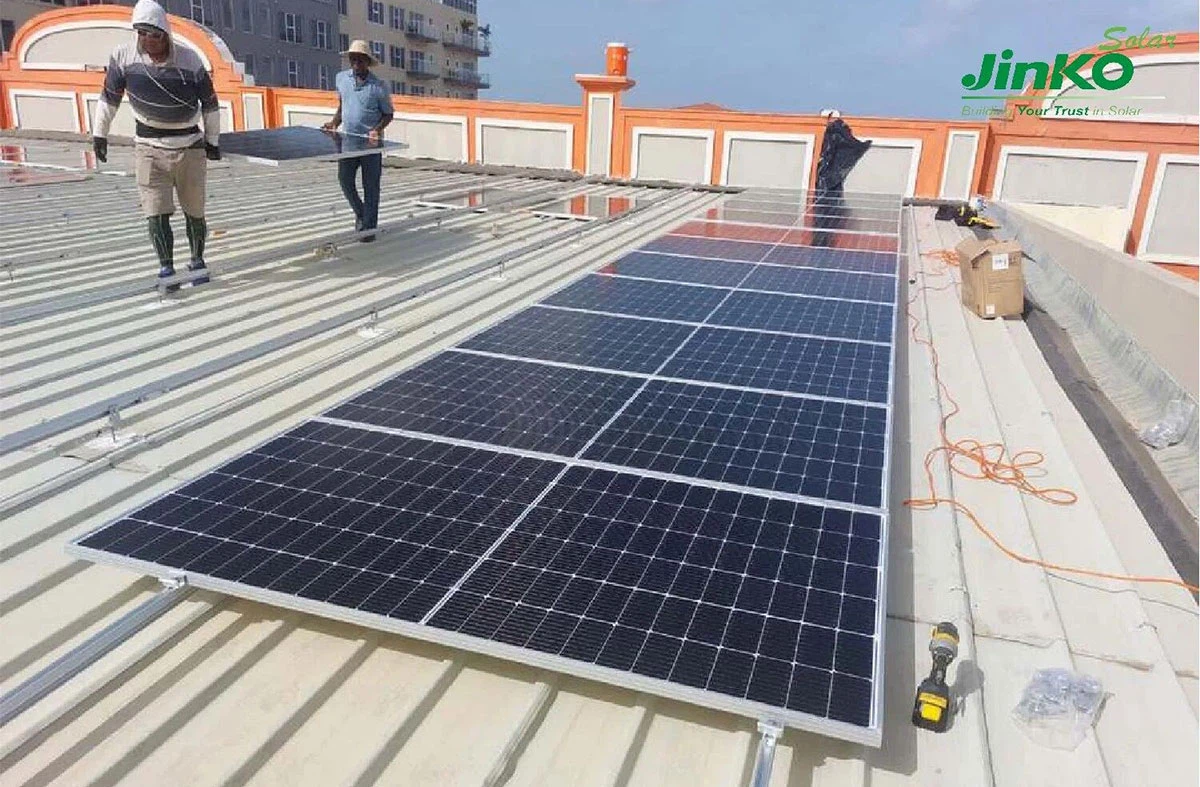

2. Commercial: Jinko 570W solar panels are ideal for businesses and organizations looking to reduce their carbon footprint and promote sustainability. The high efficiency of these panels means that a smaller number of panels can generate the necessary energy, saving on installation costs and maximizing energy production. The long lifespan of Jinko 570W solar panels also means that businesses can count on reliable and consistent energy production for years to come.

product-1200-787

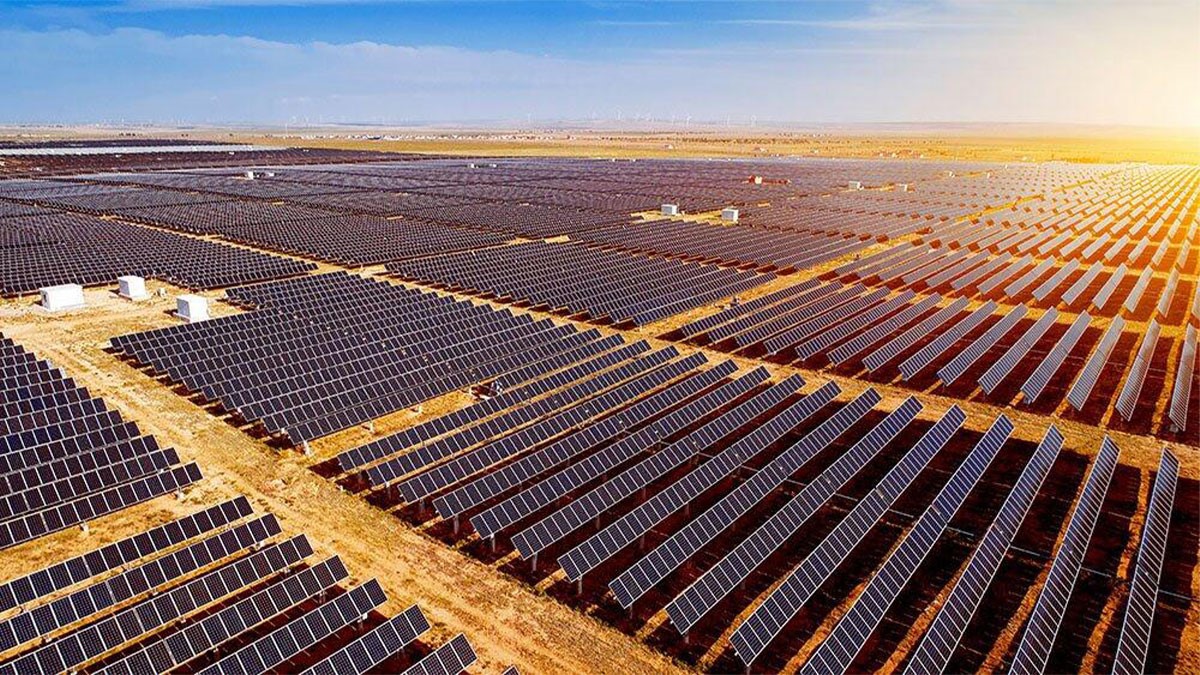

3. Utility scale: Jinko 570W solar panels are well-suited for utility-scale projects that require high energy output. These panels are designed to withstand harsh weather conditions and can generate a large amount of electricity in even low-light situations. They are also equipped with advanced monitoring systems which make it easier to track their performance and ensure optimal output.

product-1200-675

Brand Cooperation

Jingsun New Energy Technology Co., Ltd. has been rapidly gaining popularity in the renewable energy industry. The company has established collaborations with several leading energy companies, including Jinko, Longi, Trina, JA, Deye, Growatt and many others. By working together with these reputed energy giants, Jingsun has been able to bring world-class renewable energy solutions to China.

product-1200-298

Jingsun's collaboration with these powerhouse energy companies reinforces the company's commitment to exploring new frontiers in renewable energy. Their joint efforts have made significant contributions towards the expansion of renewable energy infrastructure in China, and have helped reduce the nation's carbon footprint.

FAQ

Q: What are the practical advantages of Jinko 570W solar panels?

A: Jinko 570W solar panels offer several practical advantages to homeowners looking to invest in solar energy. These high-output panels can generate more power per square foot of roof space compared to lower-wattage panels. Additionally, Jinko 570W panels are designed to resist harsh weather conditions, including snow, hail, and wind. They are also more efficient at converting sunlight into electricity, which translates to lower energy bills and greater savings for homeowners.

Q: How does Jinko 570W solar panel technology work?

A: Jinko 570W solar panels use advanced photovoltaic technology to convert sunlight into usable electricity. The panels are made up of silicon wafers that are designed to absorb sunlight and generate an electrical charge. This charge is then converted into usable power that can be used to power homes, businesses, and other residential or commercial buildings.

Q: Can Jinko 570W solar panels be used in all regions?

A: Yes, Jinko 570W solar panels are designed to be used in all regions. However, the amount of power generated by these panels will vary depending on the amount of direct sunlight they receive. Homeowners should consult with a professional solar installer to determine the specific size and type of solar panel system that will work best for their location and energy needs.

Q: How long do Jinko 570W solar panels last?

A: Jinko 570W solar panels are designed to last for many years. These panels come with a manufacturer's warranty of up to 25 years, guaranteeing that they will perform at a high level for at least that amount of time. With proper maintenance and care, these panels can continue to generate power for up to 30 years or more.

Q: Are Jinko 570W solar panels worth the investment?

A: Yes, Jinko 570W solar panels are worth the investment for homeowners looking to reduce their energy bills and invest in renewable energy. These high-output panels can generate a significant amount of electricity, which can lead to greater savings over time. Additionally, installing solar panels can add value to a home and make it more attractive to potential buyers, making it a wise investment for homeowners looking to upgrade their property.

product-1200-1597

Customer Reviews

Fernanda 2024-02-29 19:52:34

I am extremely satisfied with my experience of bulk purchasing Jinko 570W solar panels from Jingsun. The staff was very professional and helped me throughout the entire order process. The panels are of exceptional quality and are very efficient in producing energy.

Gabriella 2024-02-06 23:22:21

Jingsun provided excellent service when I placed a bulk order for Jinko 570W solar panels. They were always available to answer any questions that I had and helped me choose the best panels for my project.

Poseidon 2024-02-21 00:46:29

I recently purchased a large quantity of Jinko 570W solar panels from Jingsun, and I couldn't be happier with the experience. The staff was knowledgeable and attentive, and they made the ordering process seamless. The panels are working great, and I am already seeing a significant reduction in my energy bills.

Simone 2024-03-12 12:08:52

I am a repeat customer of Jingsun, and I continue to be impressed with their level of service and quality of products. I recently ordered a bulk quantity of Jinko 570W solar panels, and once again, Jingsun exceeded my expectations. The panels are of the highest quality, and they are very efficient in producing energy. I highly recommend Jingsun to anyone looking for reliable and high-quality solar panels.
