Canadian 630W
video

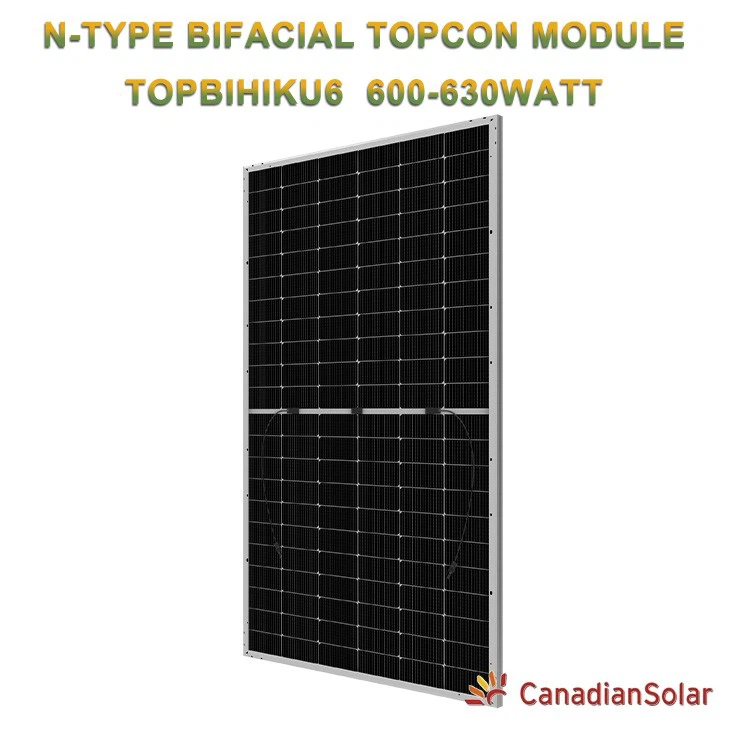

Canadian 630W

Canadian 630W

Series: TOPBiHiKu6 CS6.2-66TB
Model: N-type Bifacial TOPCon Module
Power: 600-630Watt
Product Advantages



1. High Module Efficiency: The Canadian 630W N-type Bifacial TOPCon solar panel boasts an impressive efficiency of up to 23.3%. This means that more sunlight is converted into usable energy, resulting in higher overall energy output and a more cost-effective solution for renewable energy needs.



2. Bifacial Technology: The Canadian 630W N-type Bifacial TOPCon solar panel has the unique ability to generate power from both the front and back side of the panel. This bifacial technology can increase energy output by up to 20%, making it one of the most efficient solar panels on the market.



product-1200-667



3. Durable and Reliable: The Canadian 630W N-type Bifacial TOPCon solar panel is constructed using high-quality materials that are designed to withstand a range of environmental conditions. This ensures that the panel will remain durable and reliable over time, providing consistent energy savings for businesses and homeowners alike.



4. Low Maintenance: Due to its high-quality construction and reliable components, the Canadian 630W N-type Bifacial TOPCon solar panel requires very little in terms of ongoing maintenance and repairs. This means that businesses and homeowners can enjoy the benefits of solar energy without the hassle of frequent upkeep.



5. Future-Proofed Technology: As solar technology continues to evolve, the Canadian 630W N-type Bifacial TOPCon solar panel has been designed with future advancements in mind. This means that it will remain relevant and effective as new solar technologies emerge, ensuring that businesses and homeowners always have access to the latest and most efficient renewable energy solutions.



Engineering Drawing (mm)



product-1200-479



Mechanical Data



Specification

Data

Cell Type

TOPCon cells

Cell Arrangement

132 [2 x (11 x 6) ]

Dimensions

2382 x 1134 x 30 mm (93.8 x 44.6x1.18 in)

Weight

32.8 kg (72.3 lbs)

Front Glass

2.0 mm heat strengthened glass with antireflective coating

Back Glass

2.0 mm heat strengthened glass

Frame

Anodized aluminium alloy

J-Box

IP68, 3 bypass diodes

Cable

4.0 mm² (IEC), 12 AWG (UL)

Cable Length (Including Connector)

300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) or customized length

Connector

T6 or MC4-EVO2 or MC4-EVO2A

Per Pallet

35 pieces

Per Container (40' HQ)

720 pieces



Electrical Data STC



Data

Nominal

Max.

Power

(Pmax)

Opt.

Operating

Voltage

(Vmp)

Opt.

Operating

Current

(Imp)

Open

Circuit

Voltage

(Voc)

Short

Circuit

Current

(Isc)

Module

Efficiency

CS6.2-66TB-600

600W

40.4V

14.86A

47.6V

15.85A

22.2%

Bifacial

Gain

5%

630W

40.4V

15.60A

47.6V

16.64A

23.3%

10%

660W

40.4V

16.35A

47.6V

17.44A

24.4%

20%

720W

40.4V

17.83A

47.6V

19.02A

26.7%

CS6.2-66TB-605

605W

40.6V

14.91A

47.8V

15.91A

22.4%

Bifacial

Gain

5%

635W

40.6V

15.66A

47.8V

16.71A

23.5%

10%

666W

40.6V

16.40A

47.8V

17.50A

24.7%

20%

726W

40.6V

17.89A

47.8V

19.09A

26.9%

CS6.2-66TB-610

610W

40.8V

13.69A

48.0V

15.97A

22.6%

Bifacial

Gain

5%

641W

40.8V

14.37A

48.0V

16.77A

23.7%

10%

671W

40.8V

15.06A

48.0V

17.57A

24.8%

20%

732W

40.8V

16.43A

48.0V

19.16A

27.1%

CS6.2-66TB-615

615W

41.0V

13.74A

48.2V

16.02A

22.8%

Bifacial

Gain

5%

646W

41.0V

14.43A

48.2V

16.82A

23.9%

10%

677W

41.0V

15.11A

48.2V

17.62A

25.1%

20%

738W

41.0V

16.49A

48.2V

19.22A

27.3%

CS6.2-66TB-620

620W

41.2V

13.79A

48.4V

16.08A

23.0%

Bifacial

Gain

5%

651W

41.2V

14.48A

48.4V

16.88A

24.1%

10%

682W

41.2V

15.17A

48.4V

17.69A

25.2%

20%

744W

41.2V

16.55A

48.4V

19.30A

27.5%

CS6.2-66TB-625

625W

41.4V

13.84A

48.6V

16.14A

23.1%

Bifacial

Gain

5%

656W

41.4V

14.53A

48.6V

16.95A

24.3%

10%

688W

41.4V

15.22A

48.6V

17.75A

25.5%

20%

750W

41.4V

16.61A

48.6V

19.37A

27.8%

CS6.2-66TB-630

630W

41.6V

13.89A

48.8V

16.20A

23.3%

Bifacial

Gain

5%

662W

41.6V

14.58A

48.8V

17.01A

24.5%

10%

693W

41.6V

15.28A

48.8V

17.82A

25.7%

20%

756W

41.6V

16.67A

48.8V

19.44A

28.0%

STC

irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C



Electrical Data NMOT



Data

Nominal

Max.

Power

(Pmax)

Opt.

Operating

Voltage

(Vmp)

Opt.

Operating

Current

(Imp)

Open

Circuit

Voltage

(Voc)

Short

Circuit

Current

(Isc)

CS6.2-66TB-600

454W

38.2V

11.88A

45.1V

12.78A

CS6.2-66TB-600

458W

38.4V

11.92A

45.3V

12.83A

CS6.2-66TB-600

461W

38.6V

11.96A

45.4V

12.88A

CS6.2-66TB-600

465W

38.8V

12.00A

45.6V

12.92A

CS6.2-66TB-600

469W

39.0V

12.04A

45.8V

12.97A

CS6.2-66TB-600

473W

39.1V

12.08A

46.0V

13.02A

CS6.2-66TB-600

476W

39.3V

12.11A

46.2V

13.06A

NMOT

irradiance of 800 W/㎡, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s



Electrical Data



Operating Temperature

-40°C ~ +85°C

Max. System Voltage

1500 V (IEC/UL)

Module Fire Performance

TYPE 29 (UL 61730) or CLASS C (IEC61730)

Max. Series Fuse Rating

35A

Protection Class

Class II

Power Tolerance

0 ~ + 10 W

Power Bifaciality

80 %

Temperature Coefficient (Pmax)

-0.29 % / °C

Temperature Coefficient (Voc)

-0.25 % / °C

Temperature Coefficient (Isc)

0.05 % / °C

Nominal Module Operating Temperature

41±3°C

Bifaciality Tolerance

± 5 %



Application Scenarios



1. Agricultural Farms: The Canadian 630W N-type Bifacial TOPCon solar panel is an ideal solution for agricultural farms that require a significant amount of energy to run irrigation systems, machinery, and other equipment. With the bifacial feature, this solar panel can generate energy from both sides, making it extremely efficient and capable of producing more power per square meter.



product-1200-667



2. Residential Properties: Homeowners looking to switch to renewable energy sources can benefit from the Canadian 630W N-type Bifacial TOPCon solar panel. By installing these solar panels on their roofs or in their yards, households can significantly reduce their energy bills and carbon footprint. Moreover, these solar panels are highly durable and can withstand extreme weather conditions, making them a long-term investment for homeowners.



product-1200-667



3. Commercial Buildings: Commercial buildings such as malls, hospitals, and office spaces require a significant amount of energy to run their operations. By installing the Canadian 630W N-type Bifacial TOPCon solar panel, these buildings can reduce their reliance on grid power and move toward a more sustainable energy solution. Additionally, the bifacial feature of these solar panels can provide additional power generation, allowing these buildings to more effectively offset their energy consumption.



product-1200-667



Brand Cooperation



Jingsun, a leading solar energy company in China, has established comprehensive partnerships with many top-tier solar energy companies such as JA, Jinko, Canadian Solar, and Longi. With a focus on the highest quality materials and advanced production technologies, Jingsun is committed to providing innovative and efficient solar solutions to homes and businesses alike.



Jingsun uses only the best raw materials to produce their solar panels, ensuring maximum durability and superior performance. With a dedicated research and development team, Jingsun continues to refine its production techniques, incorporating the latest innovations in solar technology while optimizing its manufacturing processes to minimize environmental impact.



product-1200-298



In addition to its strong domestic presence, Jingsun has also developed a robust overseas sales network, bringing its high-quality solar products to a global audience. This international focus has enabled Jingsun to establish itself as a leader in the global solar energy market, and its continued growth is a testament to the company's commitment to excellence and innovation.



FAQ

Q: What is the lead time for ordering Canadian 630W N-type Bifacial TOPCon solar panels from Jingsun?

A: Jingsun typically requires a lead time of 2-3 weeks for delivery of the Canadian 630W N-type Bifacial TOPCon solar panels. We recommend placing your order well in advance to ensure timely delivery.

Q: What is the minimum order quantity for Canadian 630W N-type Bifacial TOPCon solar panels from Jingsun?

A: To ensure convenient transportation, the minimum order quantity for purchasing solar panels from Jingsun is 31 pieces, which is enough to fill a pallet.

Q: Does Jingsun offer any warranties for Canadian 630W N-type Bifacial TOPCon solar panels?

A: Yes, Jingsun offers a 25-year limited warranty for Canadian 630W N-type Bifacial TOPCon solar panels. Our warranty covers defects in materials and workmanship, as well as degradation in power output over time.

Q: What is the payment process for ordering Canadian 630W N-type Bifacial TOPCon solar panels from Jingsun?

A: To place an order, customers must first submit a purchase order (PO) for the desired quantity of panels. Once the PO is accepted, Jingsun will issue an invoice with payment instructions. Payment can be made via wire transfer or letter of credit.

Q: Can Jingsun assist with logistics and shipping of Canadian 630W N-type Bifacial TOPCon solar panels?

A: Yes, Jingsun can assist with logistics and shipping for Canadian 630W N-type Bifacial TOPCon solar panels. We work with reputable logistics and freight forwarding companies to ensure safe and timely delivery to your project site.
