Products
Lead Acid Replacement Batteries
video

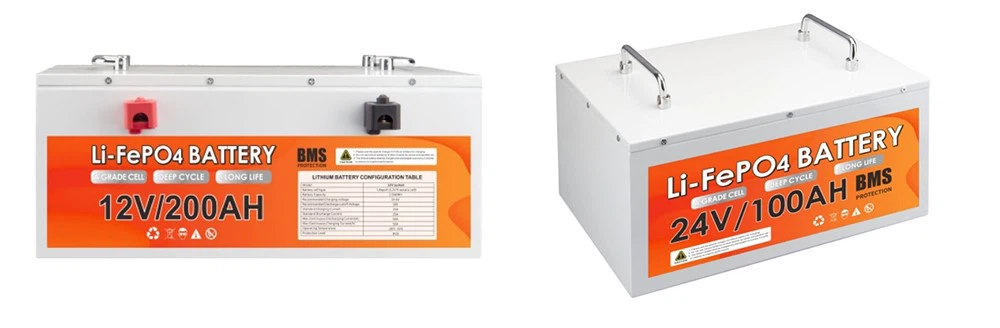

Lead Acid Replacement Batteries

Lead Acid Replacement Batteries

Brand Name: Jingsun
Battery Cells: LiFePO4
Battery Type: 12V/24V/48V 100Ah/200Ah Metal Shell
Products Description

The metal case lead acid replacement battery is a solar lithium ion battery. Here are some of the main advantages of using it in a solar power system.

  • Durability: The metal housing makes it extremely durable and able to withstand environmental elements such as temperature, humidity, and shock. This makes them ideal for outdoor solar power systems.
  • Longer Lifespan: Compared with lead-acid batteries, it has a longer lifespan. They last up to 10 years, two to three times longer than traditional lead-acid batteries.
  • Higher Energy Density: Compared with other types of batteries, the energy density is higher. With their higher energy density, lead-acid replacement batteries can store more energy per unit weight, making them a more efficient option for solar power systems.
  • Fast Charging: with fast charging capability. They can be fully charged in just a few hours compared to other batteries that can take hours or even days.
  • Low Maintenance: Only low maintenance is required compared to lead-acid batteries. They don't need to be topped up with water as often as traditional lead-acid batteries.

Lead Acid Replacement Batteries

Products Specification

Capacity

12V
100AH

12V
200AH

24V
100AH

24V
200AH

48V
100AH

48V
200AH

Continuous Discharge Current

50A

100A

50A

100A

50A

100A

Peak Protection Current

100A

200A

100A

200A

100A

200A

Working Voltage

10-14.6V

10-14.6V

20-29.2V

10-14.6V

37.5-54.75V

37.5-54.75V

Standard Voltage

12.8V

12.8V

25.6V

12.8V

48V

48V

Continuous Work Current

50A

100A

50A

100A

50A

50A

Max Charging Voltage

14.6V

14.6V

29.2V

14.6V

54.75V

54.75V

Suggested DOD Model

80%

Size(mm)

345*310*275

475*350*275

475*350*275

525*490*275

525*490*275

560*520*320

Weight

12.5kg

22kg

22kg

40kg

40kg

75kg

Humidity

10-85%

Warranty

5years



product-531-60

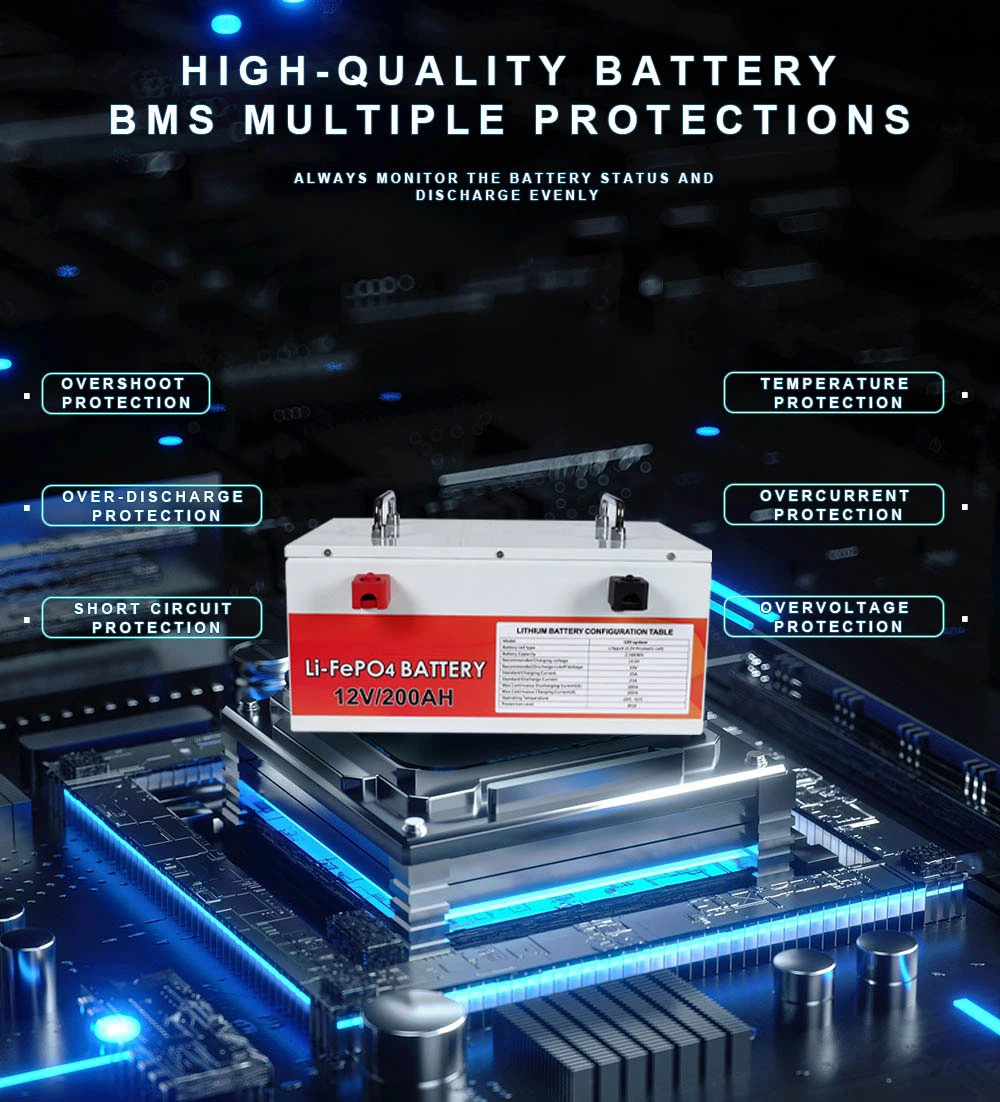

Jingsun Lithium battery protection function

Pay Attention

When it comes to solar lithium ion batteries, metal shell batteries are becoming more and more popular due to their durability and enhanced safety features. Although these batteries offer a number of benefits, users should also be familiar with some precautions when using them.

Keep the Environment in Mind

The working environment is one of the key factors to consider when using a metal shell solar lithium ion battery. It is recommended that the battery is kept in a cool and dry environment, away from direct sunlight and high temperatures. This will not only help to extend the battery's lifespan, but also ensure it operates efficiently.

Ensure Adequate Ventilation

Ventilation is another important factor when using a metal shell solar lithium ion battery. Adequate ventilation is necessary to prevent the battery from overheating, which can lead to reduced battery life and even a risk of explosion. As such, it is recommended that the battery is kept in a well-ventilated area.

Keep Away from Fire

Fire is a major hazard when it comes to lithium ion batteries. It is important to keep the battery away from any potential sources of ignition, such as cigarettes and open flames. Doing so will help to reduce the risk of an explosion or fire.

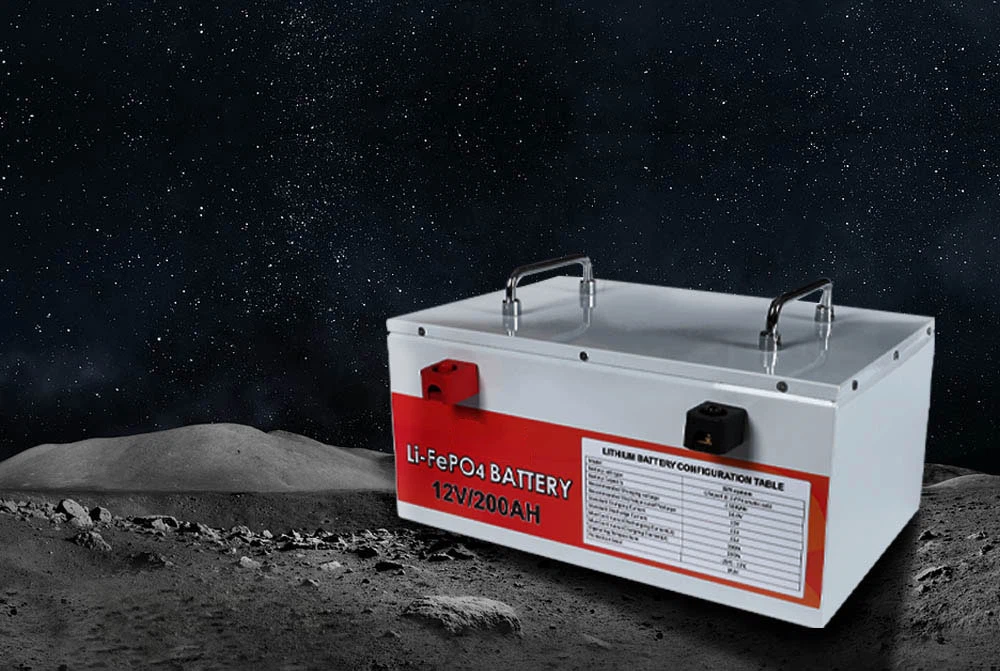

12v 200ah lithium battery



Customized Plan
  • Capacity Customization: Jingsun lithium batteries can be customized to meet the exact capacity requirements of various applications. This means that customers can order batteries with the exact amount of energy they need, ensuring optimal performance and efficiency.
  • Voltage Customization: Jingsun lithium batteries can also be customized to meet specific voltage requirements. This allows customers to select the voltage that is best suited for their application, ensuring reliable and consistent performance.
  • Cell Customization: Jingsun lithium batteries use high-quality lithium cells that can be customized to meet specific requirements. Customers can choose from a variety of cell sizes and chemistries to create batteries that meet their exact needs.
  • Logo Customization: Jingsun offers logo customization services, allowing customers to add their logo or branding to the battery. This creates a unique and professional look that helps to promote the brand and establish a strong identity in the market.
  • Packaging Customization: Jingsun lithium batteries can be packaged in a variety of ways to meet different needs. Customers can choose from a variety of materials, sizes, and designs to create packaging that is both functional and visually appealing. This helps to protect the battery during shipping and storage, and also helps to create a strong brand identity.



Applications

In the automotive industry, lead acid replacement batteries are frequently used in RVs and other recreational vehicles. These batteries can provide more power for longer periods of time, making them a popular choice for those who enjoy camping or traveling long distances. Additionally, these batteries are often more environmentally friendly, as they produce fewer emissions than traditional lead acid batteries.

In residential applications, lead acid replacement batteries are often used as backup power sources. These batteries can be integrated into existing solar panel systems or wind turbines, providing a reliable source of power during power outages or other emergencies. Additionally, these batteries can also be used to power homes in areas where electricity is not easily accessible.

12v 200ah lithium battery applications

FAQ

Q: Can Jingsun lithium batteries be used in extreme environments?

A: Yes, JINGSUN lithium batteries are designed with a sheet metal case, which is durable and suitable for use in harsh and extreme environments. It can perform well in extreme temperatures, high humidity, and dusty or dirty conditions.

Q: What is the operating temperature range for JINGSUN's lithium batteries?

A: Our lithium batteries with sheet metal case can operate in a temperature range of -20°C to 60°C. However, we recommend using the batteries within the temperature range of 0°C to 45°C for optimal performance.

Q: How does Jingsun ensure the quality of their lithium batteries?

A: Jingsun has a strict quality control process that includes testing each lithium battery before it is shipped. They also use high-quality materials and advanced technology to manufacture their lithium batteries, ensuring that they meet or exceed industry standards.
