Products Description
|
Type |
PERC, Poly |
|
Panel Efficiency |
18.6% |
|
Back Sheet Color |
White |
|
Front Glass |
3.2mm Anti-Reflective Tempered Glass |
|
Panel Size |
1956±2mmx992±2mmx40/35mm |
|
Solar Cell Size |
Poly 165.33*163mm |
|
No. of Cells |
72(6x12) |
|
Weight |
22.3kg±3% |
|
Warranty |
30 years |
|
Certificate |
TUV,CE,IEC,INMERTO,ISO |
|
Application Class |
Class A |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68 ,3Diodes |
Product Advantages
●The 350W polystalline solar cells have very high efficiencies - typically between 15% and 20% - which makes them ideal for applications where space is limited. In addition, these cells are often used in off-grid applications, such as portable solar panels, because of their smaller size and higher efficiency.
●The structure of the 350W polystalline solar cells is simpler than other types of solar cells, making them more efficient and reliable. In addition, these cells are highly resistant to environmental factors and they can withstand high temperatures without losing efficiency. In addition, they can last up to 30 years without any reduction in power output.
●polystalline solar cells are also resistant to corrosion and have a good seal against moisture and dust. This makes them ideal for outdoor use, protecting the cells from the elements. In addition, the cells are often made of tempered glass, which gives them an extra layer of protection from environmental damage.
Electrical Parameters At STC
|
Maximum Power (Pmax) |
350Wp |
|
Maximum Power Voltage (Vmp) |
37.45V |
|
Maximum Power Current (lmp) |
8.95A |
|
Open-Circuit Voltage (Voc) |
46.1V |
|
Short-Circuit Current (lsc) |
9.42A |
|
Power Tolerance |
0~+5W |
|
Temperature Coefficients of Pmax |
-0.350%°C |
|
Temperature Coefficients of Voc |
-0.272%°C |
|
Temperature Coefficients of lsc |
+0.044%°C |
|
STC (Standard Testing Conditions) |
lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G |
Electrical Parameters At NOCT
|
Maximum Power (Pmax) |
248Wp |
|
Maximum Power Voltage (Vmp) |
35.58V |
|
Maximum Power Current (lmp) |
6.97A |
|
Open-Circuit Voltage (Voc) |
43.77V |
|
Short-Circuit Current (lsc) |
7.47A |
|
Maximum System Voltage |
1000V/1500V DC(IEC) |
|
Operating Temperature |
-40°C~+85°C |
|
Maximum Series Fuse |
20A |
|
Front Side Maximum Static Loading |
5400pa，1.5 |
|
Rear Side Maximum Static Loading |
2400pa，1.5 |
|
Application Class |
Class A |
|
NOCT(Nominal Operating Cell Temperature) |
lrradiance 800W/㎡, Ambient Temperature 20°C, Winds peed 1m/s ,AW1.5G |
Applications
●Solar panels are a great way to generate clean, renewable energy in an efficient and effective way. They are becoming increasingly popular and their popularity is growing rapidly. Solar panels have many advantages and they can be used in a variety of applications.
●Solar panels are becoming increasingly popular due to their portability, making them ideal for outdoor use. They can be set up in many outdoor locations such as parks, beaches or even as part of a mobile camping setup. Portable solar panels are perfect for powering camping electronics such as camping lights, radios, fans and any other device that needs a power source.
●One of the main advantages of solar panels is energy savings. Solar energy is produced by the sun and it is free and abundant. This means that you don't need to pay for electricity and can use the free energy from the sun to power most of your equipment. In addition, solar energy is renewable and produces no emissions. This means you can help reduce your carbon footprint and make your home more energy efficient.
●Solar panels are also extremely durable. They are designed to withstand extreme weather conditions and are extremely resistant to damage. This makes them perfect for camping and other outdoor activities.

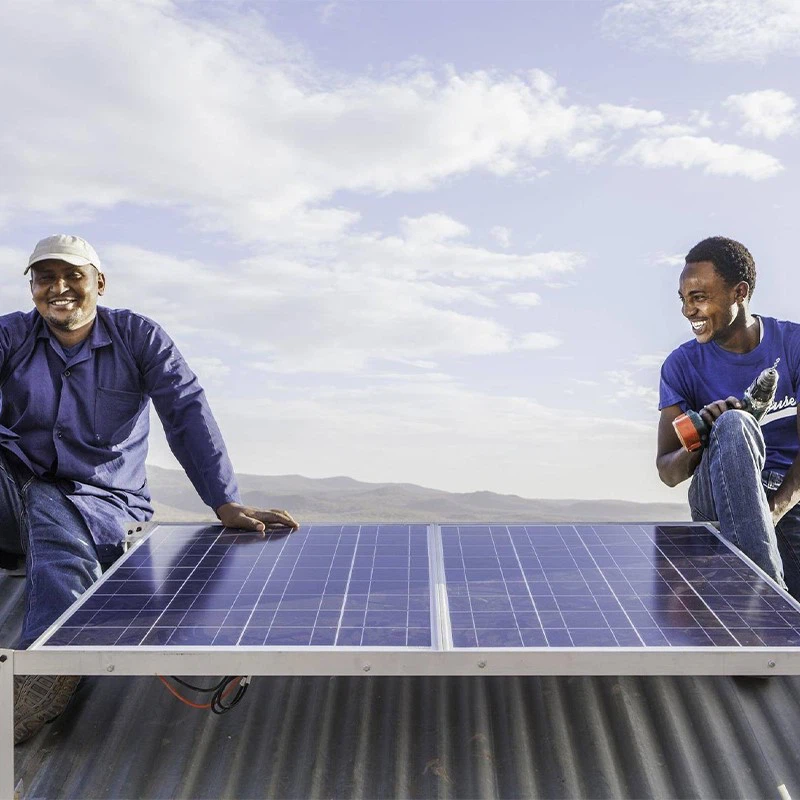

Install Solar Panels

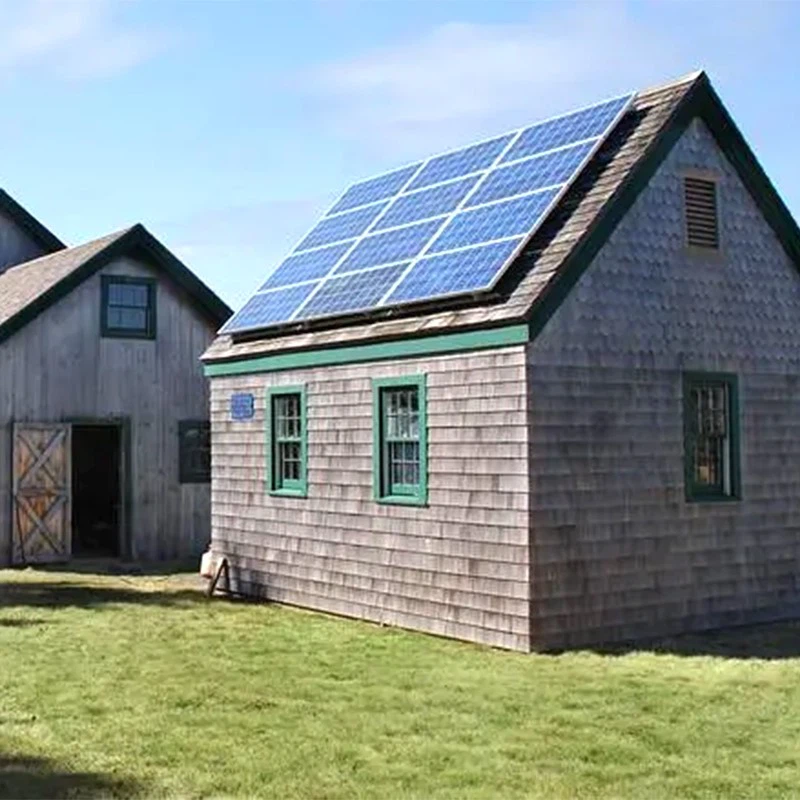

Suburban Solar Power

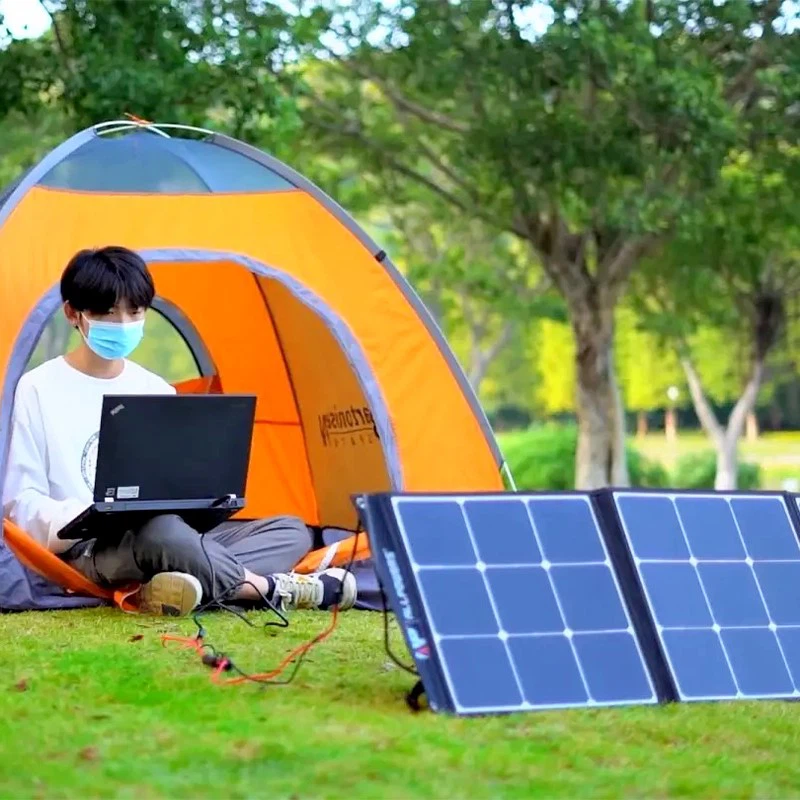

Outdoor Solar Power

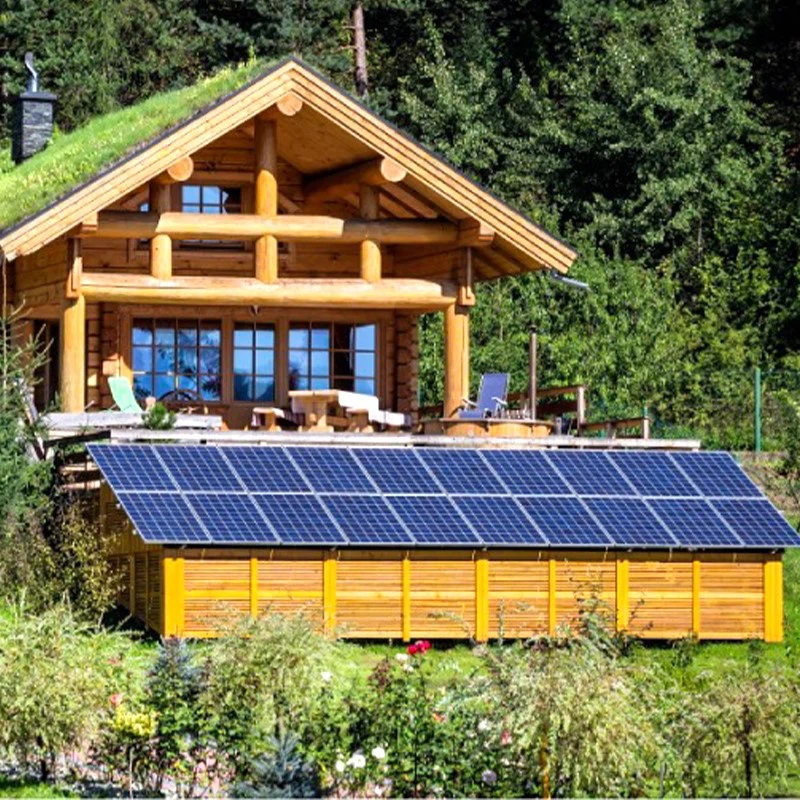

Mountain Solar Power
FAQ
Q:Will the solar power system meet my electricity needs?
Q:What is the impact of solar energy on the environment?
Q:Why should I use solar power?
