Solar Panel 385W
video
Solar Panel 385W

Solar Panel 385W

Model Number: LR6-72HPH-385M
Material: Monocrystalline Silicon
Power: 385W
Products Description

Type

PERC, Poly

Panel Efficiency

21.1%

Back Sheet Color

Silvery or Black

Front Glass

3.2mm Anti-Reflective Tempered Glass

Panel Size

1972*1002*40/35mm

Solar Cell Size

Mono 158*158mm

No. of Cells

72(6x12)

Weight

22.3kg±3%

Warranty

30 years

Certificate

TUV,CE,IEC,INMERTO,ISO

Application Class

Class A

Frame

Anodized Aluminium Alloy

Junction Box

IP67 ,3Diodes



Product Advantages

●The385W monocrystalline solar panels generate power due to a number of factors, such as light intensity, ambient temperature and installation angle. Our modules absorb scattered light well and ensure high power generation even in rainy weather. We are able to generate electricity continuously for 365 days.

●On the surface of the solar panel is a 3.2mm high light transmission and anti-reflection tempered glass. While ensuring high light transmission, it also prevents light reflection and increases the light energy capture rate. Its surface is very smooth and has a strong self-cleaning capability, requiring little maintenance in the later stages. The most important role is of course to protect the battery cells below, so it is subjected to rigorous impact resistance tests to ensure its safety factor.

●The service life of the cell and sealing performance has a great relationship, the cell in the open air in the case of only one or two years of service life. 385W Solar panel sealant, a neutral silicone material that cures after absorbing moisture in the air. It has a very good adhesive sealing effect on all types of backsheets, metal frames, junction boxes, etc. Our sealing against oxidation will allow your solar panels to produce stable electricity for around 30 years.

0

1

2

3

4



Electrical Parameters At STC

Maximum Power (Pmax)

385Wp

Maximum Power Voltage (Vmp)

39.9V

Maximum Power Current (lmp)

9.65A

Open-Circuit Voltage (Voc)

49.04V

Short-Circuit Current (lsc)

10.17A

Power Tolerance

0~+5W

Temperature Coefficients of Pmax

-0.370%°C

Temperature Coefficients of Voc

-0.286%°C

Temperature Coefficients of lsc

+0.057%°C

STC (Standard Testing Conditions)

lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G



Electrical Parameters At NOCT

Maximum Power (Pmax)

285.2Wp

Maximum Power Voltage (Vmp)

46.47V

Maximum Power Current (lmp)

7.57A

Open-Circuit Voltage (Voc)

46.00V

Short-Circuit Current (lsc)

8.03A

Maximum System Voltage

1000V/1500V DC(IEC)

Operating Temperature

-40°C~+85°C

Maximum Series Fuse

20A

Front Side Maximum Static Loading

5400pa,1.5

Rear Side Maximum Static Loading

2400pa,1.5

Application Class

Class A

NOCT(Nominal Operating Cell Temperature)

lrradiance 800W/㎡, Ambient Temperature 20°C, Winds peed 1m/s ,AW1.5G



Applications

●Combining solar power with building materials is a major trend for the future. Solar buildings can supply the electricity needs of the building, for example, lights, air conditioning, lifts, electronic equipment and other electrical facilities, to achieve self-sufficiency. This saves a great deal of money on electricity bills and at the same time enhances the aesthetics of the building.

●In the fields of oil, marine and meteorology, solar cathodic protection systems for reservoir gates and oil pipelines, and electricity for people living on oil drilling platforms, all have photovoltaic power generation systems. In the unmanned observation platform, marine testing equipment can use 385W solar power to meet their needs. Their low cost and easy installation and dismantling can provide green and stable power for a variety of complex working environments.

●In the aftermath of natural disasters such as tsunamis, earthquakes and typhoons, electricity is needed for search and rescue, resettlement of victims and post-disaster reconstruction. However, after a disaster, the electricity system is usually severely damaged, or even paralysed. This is where a solar power system can speed up the efficiency of the work and reduce the loss of life and property.

1

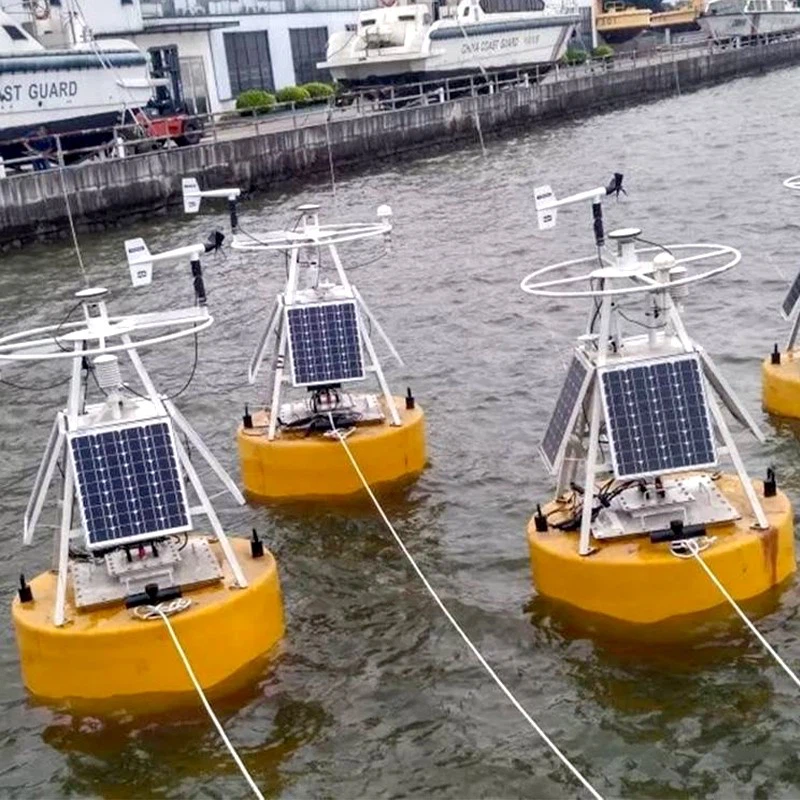

Solar Ocean Monitoring

2

Post-disaster Solar Applications

3

Solar Building

4

Solar Roof

FAQ

Q:What is the difference between polycrystalline solar panels and monocrystalline solar panels?

A:Monocrystalline silicon has no pattern and is usually black when encapsulated, while polycrystalline silicon has a pattern and is usually light blue or blue when encapsulated. Monocrystalline silicon is more efficient and costs more than polycrystalline silicon.

Q:What is the difference between P-type and N-type solar cells?

A:The main difference between P-type and N-type cells is that the raw material silicon wafers and cell manufacturing technology are different, currently the mainstream is the P-type cell manufacturing process is simple, the cost is relatively low.

Q:Can I choose different models of solar panels to use in one system?

A:No. Different models of solar panels produce different power, current and voltage and using them together can be detrimental to the whole solar system. We recommend using the same type of solar panel for each system.
