Product Advantages

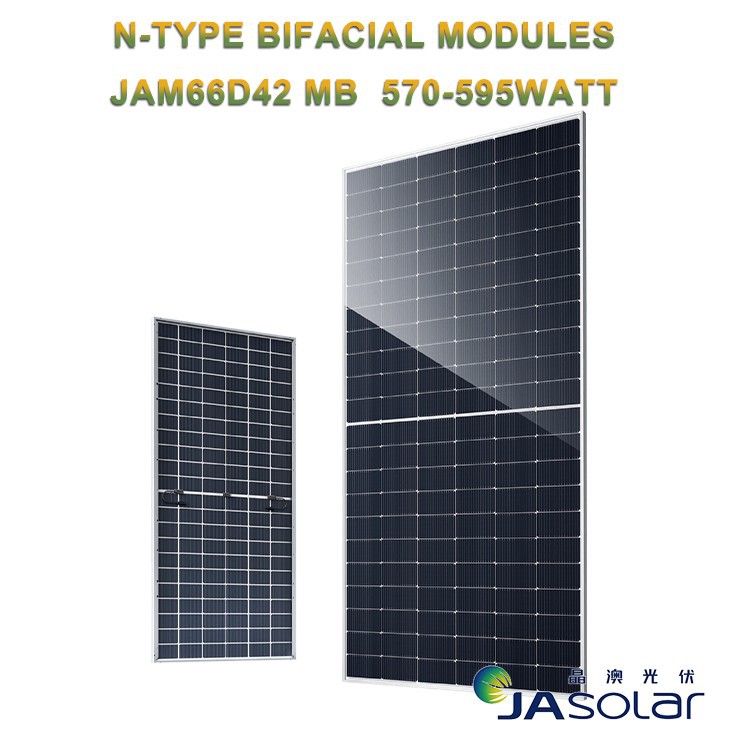

1. Advanced Semiconductor Technology: JA Solar 595W N-Type Double Glass Bifacial Modules boast cutting-edge semiconductor technology that maximizes module performance and efficiency. This technology allows the panels to absorb light from both sides, making them more efficient at generating energy.
2. Robust Resistance To Wind, Rain, And High Temperatures: JA Solar 595W N-Type Double Glass Bifacial Modules are built to withstand even the harshest weather conditions. With strong resistance to wind, rain, and high temperatures, these modules are reliable and durable, and can deliver consistent performance even in difficult environments.
3. Versatility For Various Projects: One of the biggest advantages of JA Solar 595W N-Type Double Glass Bifacial Modules is that they can be used for a wide range of projects. From simple residential installations to complicated utility-scale projects, these modules are flexible and can be customized to meet different requirements.
4. High-quality Components And Materials: JA Solar modules are made from high-quality components and materials, ensuring that they last longer and perform better than other solar solutions on the market. The advanced manufacturing process and rigorous quality control ensure that each panel meets the highest standards.
5.leading Global Solar Technology: Finally, JA Solar is a leading brand in the global solar industry, with a reputation for innovation and excellence. The company has a proven track record of delivering high-quality solar products that are both efficient and reliable, making JA Solar 595W N-Type Double Glass Bifacial Modules a smart choice for anyone looking to invest in solar energy.
Specifications
Mechanical Parameters
|
Cell |
Mono |
|
Weight |
31.8kg |
|
Dimensions |
2278±2mm×1134±2mm×30士1mm |
|
Cable Cross Section Size |
4mm²(IEC),12 AWG(UL) |
|
No.of cells |
132(6×22) |
|
Junction Box |
IP68,3diodes |
|
Connector |
QC 4.10-351/MC4-EVO2A |
|
Cable Length(Including Connector) |
Portrait: 300mm(+)/400mm(-) Landscape: 1300mm(+)/1300mm(-) |
|
Front Glass/Back Glass |
2.0mm/2.0mm |
|
Packaging Configuration |
36pcs/Pallet,720pcs/40HQ Container |
Remark: customized frame color and cable length available upon request
Electrical Parameters At STC
|
Type |
JAM66D42 570/MB |
JAM66D42 575/MB |
JAM66D42 580/MB |
JAM66D42 585/MB |
JAM66D42 590/MB |
JAM66D42 595/MB |
|
Rated Maximum Power(Pmax) |
570W |
575W |
580W |
585W |
590W |
595W |
|
Open Circuit Voltage (Voc) |
47.78V |
47.98V |
48.18V |
48.38V |
48.58V |
48.78V |
|
Maximum Power Voltage(Vmp) |
40.00V |
40.21V |
40.42V |
40.63V |
40.84V |
41.03V |
|
Short Circuit Current(Isc) |
15.11A |
15.16A |
15.21A |
15.26A |
15.31A |
15.36A |
|
Maximum Power Current(Imp) |
14.25A |
14.30A |
14.35A |
14.40A |
14.45A |
14.50A |
|
Module Efficiency |
22.1% |
22.3% |
22.5% |
22.6% |
22.8% |
23.0% |
|
Power Tolerance |
0~+3% |
|||||
|
Temperature Coefficient of lsc(α_lsc) |
+0.045%/℃ |
|||||
|
Temperature Coefficient of Voc ( β_Voc) |
-0.250%/℃ |
|||||
|
Temperature Coefficient of Pmax(γ_Pmp) |
-0.290%/℃ |
|||||
|
STC |
lrradiance 100oW/m2, cell temperature 25°℃,AM1.5G |
|||||
Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
Electrical Characteristics With 10% Solar Irradiation Ratio
|
Type |
JAM66D42 570/MB |
JAM66D42 575/MB |
JAM66D42 580/MB |
JAM66D42 585/MB |
JAM66D42 590/MB |
JAM66D42 595/MB |
|
Rated Maximum Power(Pmax) |
616W |
621W |
626W |
632W |
637W |
643W |
|
Open Circuit Voltage (Voc) |
47.78V |
47.98V |
48.18V |
48.38V |
48.58V |
48.78V |
|
Maximum Power Voltage(Vmp) |
40.00V |
40.21V |
40.42V |
40.63V |
40.84V |
41.03V |
|
Short Circuit Current(Isc) |
16.32A |
16.37A |
16.43A |
16.48A |
16.53A |
16.59A |
|
Maximum Power Current(Imp) |
15.39A |
15.44A |
15.50A |
15.55A |
15.61A |
15.66A |
|
lrradiation Ratio (rear/front) |
10% |
|||||
Operating Conditions
|
Maximum System Voltage |
1500V DC |
|
Operating Temperature |
-40°℃~+85℃ |
|
Maximum Series Fuse Rating |
30A |
|
Maximum Static Load, Front* |
5400Pa(112 lb/ft²) |
|
Maximum Static Load,Back* |
2400Pa(50 lb/ft²) |
|
NOCT |
45±2℃ |
|
Bifaciality** |
80%±10% |
|
Safety Class |
Class II |
|
Fire Performance |
UL Type 38/Class C |
*For Nextracker installations, maximum static load please take compatibility approveletter between JASolar and Nextrackerfor reference.
**Bifaciality=Pmax, rear/Rated Pmax, front
Characteristics
Application Scenarios
1. Large-scale Solar Farms:
JA Solar's 595W N-Type Double Glass Bifacial Modules are ideal for use in large-scale solar farms that require high output and efficiency. These modules have a high power generation rate, which means they can produce large amounts of energy even in low-light conditions. They are also highly durable and resistant to wear and tear, which makes them ideal for use in harsh environments.
2. Commercial And Industrial Buildings:
Another important application scenario for JA Solar's 595W N-Type Double Glass Bifacial Modules is in commercial and industrial buildings. These modules can be installed on rooftops or walls to generate renewable energy and save on electricity costs. They are also aesthetically pleasing and can enhance the visual appeal of buildings, making them an attractive investment for businesses that want to showcase their commitment to sustainability.
3. Residential Homes:
Finally, JA Solar's 595W N-Type Double Glass Bifacial Modules are also an excellent choice for residential homes. These modules can be installed on rooftops or as ground-mounted systems, providing homeowners with a reliable and renewable source of energy. They are also quiet and easy to maintain, making them a hassle-free way for homeowners to reduce their carbon footprint and save money on their energy bills.
Brand Cooperation
Jingsun is proud to announce a long-term, stable partnership with multiple Tier 1 solar companies in China. These partnerships are a testament to Jingsun's unwavering commitment to providing industry-leading solar solutions to its customers.
Through these collaborations, Jingsun will be able to tap into the expertise and resources of these top-tier solar companies to further enhance its product offerings and service quality. The partnership will also help Jingsun expand its market share, both domestically and internationally.
FAQ
Q: What is JA Solar 595W N-Type Double Glass Bifacial Module?
Q: What are the benefits of using JA Solar 595W N-Type Double Glass Bifacial Module?
Q: What is the price of JA Solar 595W N-Type Double Glass Bifacial Module?
Q: How do I install JA Solar 595W N-Type Double Glass Bifacial Module?
Q: How to order JA Solar 595W N-type double-glass bifacial modules?
