Product Advantages
- High Energy Density: Jingsun25kwh stackable lithium batteries have a high energy density, meaning they can store a large amount of energy in a compact size. This makes them ideal for use in solar energy storage systems where space may be limited.
- Long Lifespan: These batteries have a longer lifespan compared to other types of batteries used in solar energy storage systems, such as lead-acid batteries. This means they can provide reliable energy storage for many years.
- Fast Charging: Jingsun 25kwh stackable lithium batteries have a fast charging rate, meaning they can be recharged quickly and efficiently. This makes them ideal for use in solar energy storage systems where energy needs to be stored quickly to meet demand.
- Safe And Reliable: These batteries have advanced safety features that prevent overcharging, over-discharging, and overheating. This makes them reliable and safe to use, even in harsh environmental conditions.
- Easy To Install And Maintain: Jingsun25kwh stackable lithium batteries are modular and easy to install and maintain. This means they can be added or removed from a solar energy storage system as needed, and any faulty batteries can be easily replaced without disrupting the entire system.
Product Specifications
|
Single Module Capacity |
5.12KWH |
|
Module Number |
5/PCS |
|
Total Capacity（KWH） |
25.6 |
|
Standard Voltage |
51.2V |
|
Working Voltage |
43.2V-57.6V |
|
Standard Discharge Current |
500A |
|
Standard Charge Current |
250A |
|
Suggested DOD |
80% |
|
Humidity |
10-85% |
|
Installation |
Stacked |
|
IP Rating |
IP20 |
|
Communication |
CAN/RS485/RS232(WiFi/bluetooth/4Goptional) |
|
Product Size/Unit |
620*550*1600 |
|
N.W./unit |
190kg |
Customized Plan
- Capacity Customization: The Jingsun 25kwh stackable lithium battery can be customized to meet specific capacity requirements based on individual project needs. Our team can work closely with clients to determine the appropriate battery configuration and capacity to ensure maximum energy storage for their solar energy system.
- Cell Customization: The battery's individual cells can also be customized based on specific power and size requirements. Our engineers will work with clients to select cells that meet their project specifications and to ensure the best possible performance for the battery.
- Enclosure Customization: The battery's enclosure can be customized to meet specific size and shape requirements, as well as environmental considerations. Our team can work with clients to design and produce customized enclosures that meet their unique needs.
- Logo Customization: The Jingsun25kwh stackable lithium battery can be customized with logos and branding to match a client's company identity. Our graphics team can work with clients to create customized branding solutions for the battery.
- Customization For Specific Needs: We also offer customization services for specific applications such as marine and electric vehicle applications. These customization services can include waterproofing, shockproofing, and vibration adaptation, as well as other specialized features required for specific use cases.
Applications

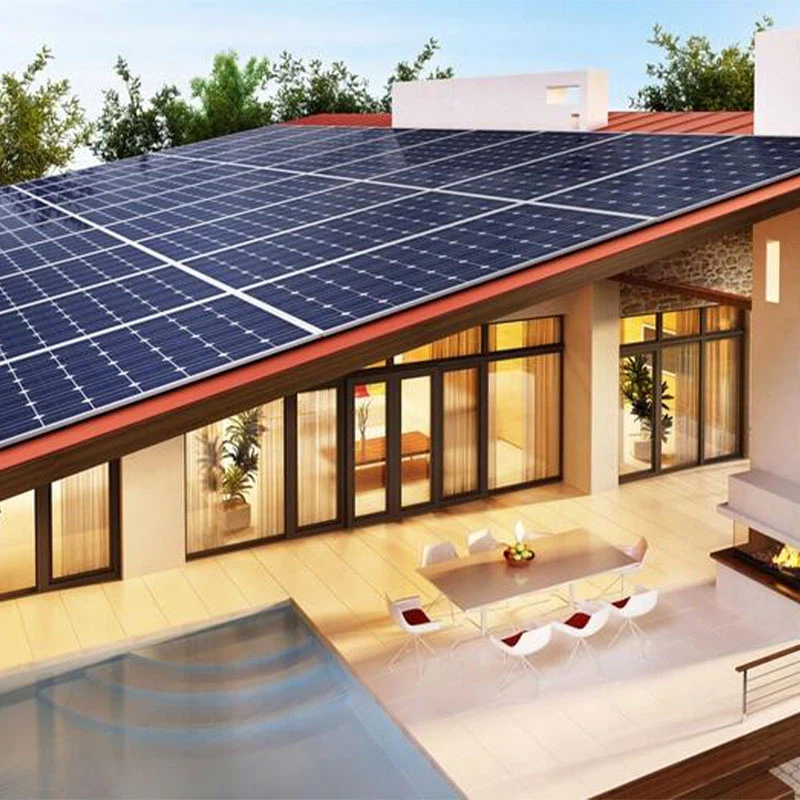

Off-grid And Remote Energy Storage
Jingsun 25KWH stackable lithium-ion batteries can be used to power homes or businesses in areas not served by the traditional power grid. These batteries can store excess energy generated from solar or wind power and provide clean and reliable energy when needed.
Jingsun 25KWH stackable lithium-ion batteries can be used to power homes or businesses in areas not served by the traditional power grid. These batteries can store excess energy generated from solar or wind power and provide clean and reliable energy when needed.
Renewable Energy Storage
Jingsun 25KWH stackable lithium-ion batteries are commonly used in solar energy storage systems. They can store energy generated by solar panels during the day and provide efficient power supply for residential or commercial buildings during the night or power outages.
Jingsun 25KWH stackable lithium-ion batteries are commonly used in solar energy storage systems. They can store energy generated by solar panels during the day and provide efficient power supply for residential or commercial buildings during the night or power outages.
FAQ
Q: What is Jingsun25kwh stackable lithium battery and why is it suitable for solar energy storage?
A: Jingsun25kwh stackable lithium battery is a modular battery system designed for efficient energy storage. It can be easily scaled up or down to fit any specific energy storage needs. It is ideal for solar energy storage due to its high efficiency, quick charging, and long lifespan.
Q: What is the expected lifespan of Jingsun25kwh stackable lithium battery?
A: Jingsun25kwh stackable lithium battery is designed to have a lifespan of up to 20 years under normal use. This is because of its high-quality components, excellent design, and efficient energy management system.
Q: How long does it take to charge Jingsun25kwh stackable lithium battery using solar energy?
A: The charging time for Jingsun25kwh stackable lithium battery depends on the solar panel's power output, but on average, it can take up to 8 hours to fully charge. However, rapid charging technology is available, which can reduce the charging time significantly.
Q: Is Jingsun25kwh stackable lithium battery safe to use?
A: Yes, Jingsun25kwh stackable lithium battery is safe to use because it has a built-in management system that prevents overcharging, over-discharging, and overheating. Additionally, it is covered by a comprehensive warranty that protects against any manufacturing defects or issues
