Product Advantages

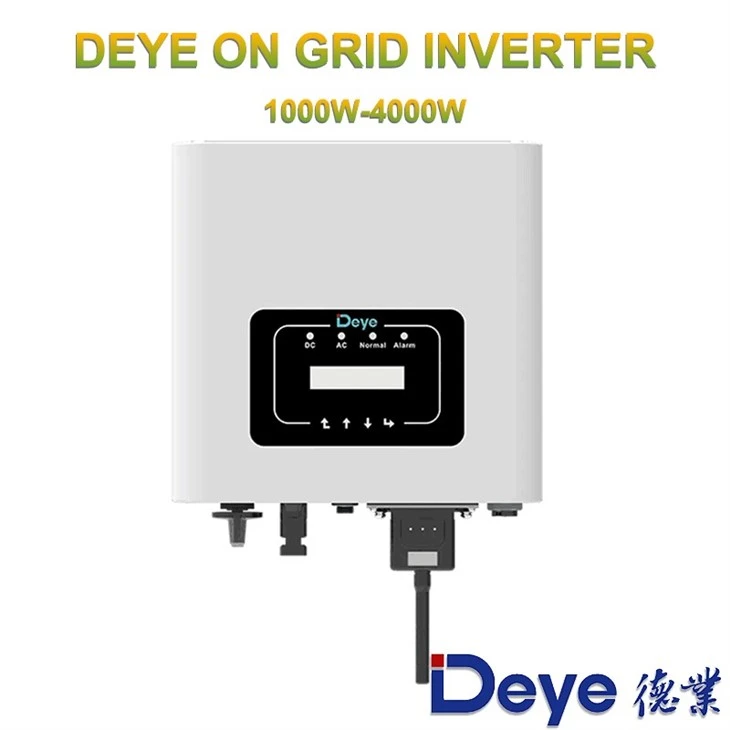

1. High Efficiency: The Deye 3.6KW single-phase inverter features 1 MPP tracker and a maximum efficiency of up to 97.5%, making it one of the most efficient inverters on the market. This translates to greater energy output and cost savings for homeowners.
2. Zero Export & VSG Application: The inverter is capable of Zero Export application, which means it can limit the export of excess energy to the grid, while maximizing self-consumption. The inverter also supports Variable Speed Generator (VSG) application, allowing it to connect to a variety of generators and extend its compatibility to a wider range of energy sources.
3. Wide Output Voltage Range: The inverter offers a wide range of output voltages, making it compatible with various panel configurations and allowing for greater flexibility when designing a solar system. This also ensures that it can operate efficiently under varying environmental conditions.
4. Low Start-up Voltage: With a low start-up voltage of just 80V, this inverter is capable of generating power even in low-light conditions or when the sun is just starting to rise. This is a significant advantage for homeowners looking to maximize their solar energy production throughout the day.
5. Durability & Reliability: The Deye 3.6KW single-phase inverter is built to last, with sturdy construction and high-performance components that are designed to withstand harsh environmental conditions. This makes it a reliable and low-maintenance choice for homeowners looking to invest in a long-lasting solar energy system.
Parts List
Technical Data
|
Model |
SUN-1K-G04 P1-EU-AM1 |
SUN-1.5K-G04 P1-EU-AM1 |
SUN-2K-G04 P1-EU-AM1 |
SUN-2.2K-G04 P1-EU-AM1 |
SUN-2.5K-G04 P1-EU-AM1 |
|
Input Side |
|||||
|
Max. DC Input Power (kW) |
1.3KW |
2KW |
2.6KW |
2.9KW |
3.3KW |
|
Max. DC Input Voltage |
550V |
||||
|
Start-up DC Input Voltage |
80V |
||||
|
MPPT Operating Range |
70-500V |
||||
|
Max. DC Input Current |
13A |
||||
|
Max. Short Circuit Current |
19.5A |
||||
|
No.of MPP Trackers |
1 |
||||
|
No.of Strings per MPP Tracker |
1 |
||||
|
Output Side |
|||||
|
Rated Output Power |
1KW |
1.5KW |
2KW |
2.2KW |
2.5KW |
|
Max. Active Power |
1.1KW |
1.65KW |
2.2KW |
2.42KW |
2.75KW |
|
Nominal Output Voltage / Range |
L/N/PE 220/230V (Optional) |
||||
|
Rated Grid Frequency |
50HZ / 60HZ(Optional) |
||||
|
Operating Phase |
Single Phase |
||||
|
Rated AC Grid Output Current |
4.6A/4.4A |
6.8A/6.5A |
9.1A/8.7A |
10A/9.6A |
11.4A/10.9A |
|
Max. AC Output Current |
5A/4.8A |
7.5A/7.2A |
10A/9.6A |
11A/10.6A |
12.5A/12A |
|
Output Power Factor |
0.8 leading to 0.8 lagging |
||||
|
Grid Current THD |
<3% |
||||
|
DC Injection Current |
<0.5% |
||||
|
Grid Frequency Range |
45~55 or 55~65 (Optional) |
||||
|
Efficiency |
|||||
|
Max. Efficiency |
97.3% |
||||
|
Euro Efficiency |
97.1% |
||||
|
MPPT Efficiency |
>99% |
||||
|
Model |
SUN-2.7K-G04 P1-EU-AM1 |
SUN-3K-G04 P1-EU-AM1 |
SUN-3.3K-G04 P1-EU-AM1 |
SUN-3.6K-G04 P1-EU-AM1 |
SUN-4K-G04 P1-EU-AM1 |
|
Input Side |
|||||
|
Max. DC Input Power (kW) |
3.5KW |
3.9KW |
4.3KW |
4.7KW |
5.2KW |
|
Max. DC Input Voltage |
550V |
||||
|
Start-up DC Input Voltage |
80V |
||||
|
MPPT Operating Range |
70-500V |
||||
|
Max. DC Input Current |
13A |
||||
|
Max. Short Circuit Current |
19.5A |
||||
|
No.of MPP Trackers |
1 |
||||
|
No.of Strings per MPP Tracker |
1 |
||||
|
Output Side |
|||||
|
Rated Output Power |
2.7KW |
3KW |
3.3KW |
3.6KW |
4KW |
|
Max. Active Power |
2.97KW |
3.3KW |
3.63KW |
3.96KW |
4.4KW |
|
Nominal Output Voltage / Range |
L/N/PE 220/230V (Optional) |
||||
|
Rated Grid Frequency |
50HZ / 60HZ(Optional) |
||||
|
Operating Phase |
Single Phase |
||||
|
Rated AC Grid Output Current |
12.3A/11.8A |
13.7A/13.1A |
15A/14.4A |
16.4A/15.7A |
18.2A/17.4A |
|
Max. AC Output Current |
13.5A/13A |
15A/14.4A |
16.5A/15.8A |
18A/17.3A |
20A/19.2A |
|
Output Power Factor |
0.8 leading to 0.8 lagging |
||||
|
Grid Current THD |
<3% |
||||
|
DC Injection Current |
<0.5% |
||||
|
Grid Frequency Range |
45~55 or 55~65 (Optional) |
||||
|
Efficiency |
|||||
|
Max. Efficiency |
97.3% |
97.5% |
|||
|
Euro Efficiency |
97.1% |
97.3% |
|||
|
MPPT Efficiency |
>99% |
||||
General Data
|
Cabinet Size (WxHxD mm) |
280×310×184 (Excluding Connectors and Brackets) |
|
Weight (kg) |
4.8 |
|
Topology |
Transformerless |
|
Internal Consumption |
<1W (Night) |
|
Running Temperature |
-25~65℃, >45℃ Derating |
|
Ingress Protection |
IP65 |
|
Noise Emission (Typical) |
≤35 dB |
|
Cooling Concept |
Free Cooling |
|
Permissible Altitude (m) |
2000 |
|
Warranty |
5 Years |
|
Grid Connection Standard |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, G99, VDE-AR-N 4105 |
|
Operating Surroundings Humidity |
0-100% |
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
Display |
LCD1602 |
|
Interface |
RS485/RS232/Wifi/LAN |
Brand Cooperation
Jingsun has established long-term partnerships with several top inverter companies, demonstrating our dedication to providing reliable and efficient inverters for various industries. Our collaboration has enabled us to promote energy conservation and environmental protection through innovative and cutting-edge technology.
We are proud to work closely with these companies, leveraging our complementary strengths to achieve mutual growth and success. By combining our expertise in R&D, production, and distribution, we are able to offer high-quality, cost-effective and customized solutions to our customers.
Our collaboration with these esteemed inverter companies reinforces Jingsun's commitment to offering reliable and high-performance products that meet the diverse needs of our customers. Together, we envision a cleaner, more sustainable future powered by our innovative inverter technology.
