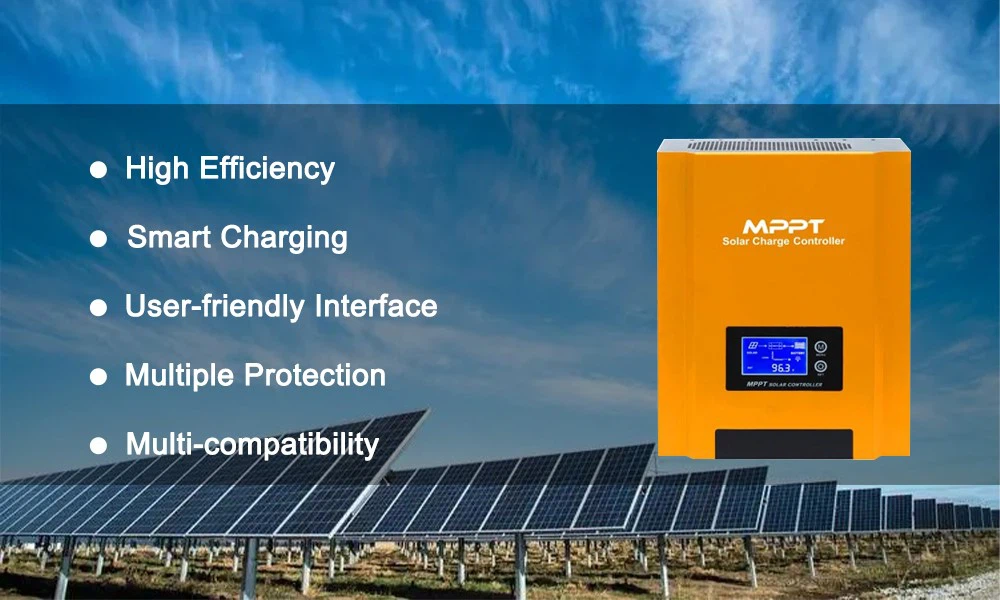

Product Advantages
- Higher Efficiency: Smart MPPT Charge Controller uses advanced Maximum Power Point Tracking (MPPT) technology to increase the charging efficiency by up to 30%, resulting in higher energy harvesting from the PV panels.
- Intelligent Charging: The controller adjusts charging parameters automatically based on weather conditions, battery state-of-charge, and load requirements, ensuring battery safety and longevity.
- User-Friendly Interface: The controller comes with a user-friendly LCD display that allows easy monitoring and control of the system. It also features remote monitoring and control options.
- Multiple Protections: The controller has built-in protection features that safeguard the battery and the system against overcharging, over-discharging, short-circuiting, and reverse polarity.
- Compatibility: The controller is compatible with a wide range of PV panels and battery types, making it suitable for different applications, such as off-grid solar systems, home power backup, and remote monitoring systems.
Products Specification
|
Model |
SSM-50-96 |
SSM-100-96 |
SSM-50-192 |
SSM-50-384 |
SSM-100-192 |
SSM-100-384 |
|
Rated Current(A) |
50 |
100 |
50 |
50 |
100 |
100 |
|
Rated System Voltage(V) |
96 |
96 |
192/216/240 |
384 |
192/216/240 |
384 |
|
Max PV Input Voltage(V) |
300 |
450 |
800 |
450 |
800 |
|
|
MPPT Route Number |
1 |
2 |
1 |
2 |
||
|
Battery Type |
Lead-acid Battery/Deep Cycle Battery/gel Battery/etc |
|||||
|
Charge Voltage |
113.6V/227.2V/255.6V/284V/454.4V |
|||||
|
Charge Protection Voltage |
120V/240V/270V/300V/480V |
|||||
|
Promote Recovery Voltage |
105.6V/211.2V/237.6V/264V/422.4V |
|||||
|
Protection |
Over-voltage/Under-voltage/Over-temperature/Pv&Battery Anti-reverse Protection |
|||||
|
MPPT Efficiency |
＞99% |
|||||
|
Dimension(L*W*H) |
31.5*25*10.8cm |
46*33*14cm |
53*41*16.2cm |
|||
|
Meas(cm) |
36.5*31*16.4 |
50.9*40.5*21.5 |
59.8*48.7*23.9 |
|||
|
N.W/Unit(kg) |
4.5 |
5.6 |
13.5 |
15 |
22.6 |
26.5 |
|
G.W./Carton(kg) |
5.2 |
6.3 |
15 |
16.5 |
24.6 |
28.5 |
|
Elevation |
＜5000m |
|||||
|
Humidity |
5%-95%,/No Condensation |
|||||
|
Communication |
RS485(Optional) |
|||||
Applications
- Street Lighting Systems: The Smart MPPT Charge Controller is also used in street lighting systems. It intelligently adjusts the power output to the lighting fixtures based on available solar energy, ensuring efficient and cost-effective lighting solutions.
- Telecom Towers: Jingsun MPPT Charge Controller is commonly used in telecom towers, where uninterrupted power supply is critical. It helps the towers run off-grid, eliminating the need for fossil fuels, and reducing carbon emissions.
- Agricultural Irrigation Systems: Jingsun MPPT Charge Controller is also ideal for agricultural irrigation systems, enabling the switching between different sources of power (e.g., solar, grid, and generator) and controlling the charging of batteries for use during periods of low sunlight. This ensures a reliable and stable power supply, significantly reducing the cost of energy for agricultural operations.
FAQ
Q: Is MPPT Charge Controller compatible with other solar components?
Q: How do I install and operate Jingsun MPPT Charge Controller?
Q: How do you ensure safe transportation?
