Product Description
|
Type |
PERC |
|
Panel Efficiency |
21.6% |
|
Cable&Connector |
4mm²,EVO2 or EVO2 Compatible |
|
Front Glass |
2.0 mm (0.08 inches), High Transmission AR Coated Heat Strengthened Glass |
|
Back Glass |
2.0 mm (0.08 inches), Heat Strengthened Glass (White Grid Glass) |
|
Dimension |
2113±2mmx1048±2mm×35mm/30mm or 2094±2mmx1040±2mm×35mm/30mm |
|
Solar Cell Size |
Mono 166*166mm |
|
No. of Cells |
144(6×24） |
|
Weight |
38.7kg±3% |
|
Warranty |
30years |
|
Certificate |
TUV,CE,IEC,INMERTO,ISO |
|
Application Class |
Class A |
|

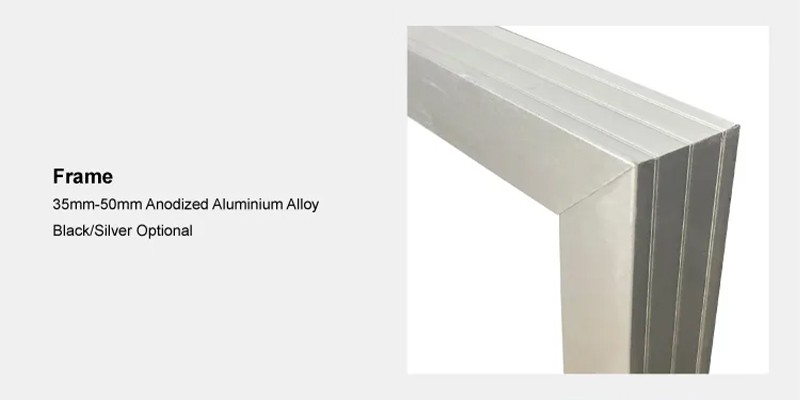

Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP≥68 ,3Diodes |
|
Modules Per Pallet |
31/36pieces |
|
Modules Per 40HQ |
704/810pieces |
Product Advantages
- Higher Energy Output: Jingsun Mono Bifacial Solar Panel has a higher energy output compared to traditional solar panels, due to its ability to capture sunlight from both sides. This allows for greater energy production and better performance in low light conditions.
- Higher Durability: Jingsun Solar Panel is made from high-quality materials that provide superior durability and resistance to weather and external factors. This makes it an ideal choice for harsh and extreme environments.
- Compatibility With Various Environments: Jingsun Bifacial Solar Panel is designed to be compatible with various environments, including residential, commercial, and industrial applications. Its flexibility and adaptability make it a versatile option for a wide range of settings.
- Cost-Effective: The high efficiency and durability of Bifacial Solar Panel make it a cost-effective solution for generating renewable energy. It offers a long lifespan and requires minimal maintenance, resulting in lower overall costs over its lifetime.
- Eco-Friendly: Solar Panel is a sustainable and eco-friendly choice for generating electricity. It reduces reliance on fossil fuels, decreases carbon emissions, and helps to preserve the environment for future generations.
Electrical Parameters at STC
|
Maximum Power (Pmax) |
480W |
|
Maximum Power Voltage (Vmp) |
42.40V |
|
Maximum Power Current (lmp) |
11.32A |
|
Open-Circuit Voltage (Voc) |
50.21V |
|
Short-Circuit Current (lsc) |
11.59A |
|
Power Tolerance |
0~+5W |
|
Temperature Coefficients of lsc |
+0.044%°C |
|
Temperature Coefficients of Voc |
-0.272%°C |
|
Temperature Coefficients of Pmax |
-0.350%°C |
|
STC (Standard Testing Conditions) |
lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G |
Electrical Parameters at NOCT
|
Maximum Power (Pmax) |
515W |
|
Maximum Power Voltage (Vmp) |
42.38V |
|
Maximum Power Current (lmp) |
12.15A |
|
Open-Circuit Voltage (Voc) |
50.29V |
|
Short-Circuit Current (lsc) |
12.41A |
|
Irradiance radio (rear/front) 10% |
Power Bifaciality: 70±10% |
|
Maximum System Voltage |
1000/1500V DC(IEC) |
|
Operating Temperature |
-40°℃-+85℃ |
|
Maximum Series Fuse |
20A |
|
Maximum Static Load,Front |
5400Pa, 1.5 |
|
Maximum Static Load,Back |
2400Pa, 1.5 |
|
NOCT(Nominal Operating Cel Temperature) |
45±2℃ Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G |
Packaging and Shipping
The Jingsun Mono Bifacial Solar Panel boasts exceptional packaging advantages that guarantee its safe and secure delivery. The panel is packed using high-quality materials that are strong and durable. This not only protects the panel from damage during transportation but also ensures it arrives intact and without any defects. Additionally, the protection layer used during packaging ensures the panel's performance is not affected by any external factors. The compact design of the packaging allows for easy storage and handling, making it convenient for retailers and installers alike. Overall, the packaging advantages of the Jingsun Mono Bifacial Solar Panel provide peace of mind to consumers and ensure that the panel arrives in top-notch condition.
Applications
The Jingsun 480W Bifacial Solar Panel is suitable for use in commercial buildings such as offices, malls, and hotels. These buildings typically have a large roof area that can be leveraged to generate clean energy. The bifacial technology of the panel ensures maximum energy output even in low light conditions.
The Jingsun 480W Bifacial Solar Panel is also ideal for mobile applications such as RVs and boats. These vehicles require a constant source of energy to power appliances and lighting, and solar panels provide a sustainable and cost-effective solution. The bifacial feature of the panel allows for energy to be generated even when there is limited sunlight hitting one side.
FAQ
Q: What are the features of the Jingsun 480W bifacial solar panel?
Q: What are the benefits of using a Jingsun 480W bifacial solar panel?
Q: How do I install a Jingsun 480W bifacial solar panel?
