Product Features
1.High Energy Density, Space-Saving and Efficient:
241kWh large capacity + 768V high-voltage platform + 314AH battery cells, optimized integrated design, 75%-80% space utilization, longer battery life for the same volume, suitable for compact installation scenarios of clean energy storage such as photovoltaic and wind power.
2.Ultimate Safety, Stable and Worry-Free Operation:
Lithium iron phosphate material (thermal decomposition temperature 500℃), paired with a high-specification BMS system, multiple protections (overcharge/overtemperature/short circuit, etc.), rigorously certified, stable operation 24/7, suitable for high-safety scenarios such as photovoltaic and wind power energy storage.
3.Long Cycle Life, Superior Overall Cost:
3500-5000 cycles of 1C charge/discharge (capacity ≥70%), stable operation for 8-10 years, shallow charge/discharge life up to 12-15 years. No cobalt or nickel precious metals, controllable cost, significantly reducing the operation and maintenance replacement costs of photovoltaic and wind power energy storage projects.
4.Modular design for convenient expansion and maintenance：
Modular series and parallel expansion adapts to phased construction of photovoltaic, wind, and energy storage power stations, requiring no equipment modification and completing upgrades in 1 hour; supports hot-swapping, allowing individual replacement of faulty modules (completed in 30 minutes) without affecting the overall operation of the power station.
5.High-efficiency fast charging, adaptable to all operating conditions：
Up to 5C fast charging, adaptable to daytime energy replenishment needs of photovoltaic and wind power, replenishing 20%-80% of energy in just tens of minutes; stable operation over a wide temperature range of -20℃ to 60℃, with minimal low-temperature degradation, suitable for complex outdoor photovoltaic and wind energy storage conditions.

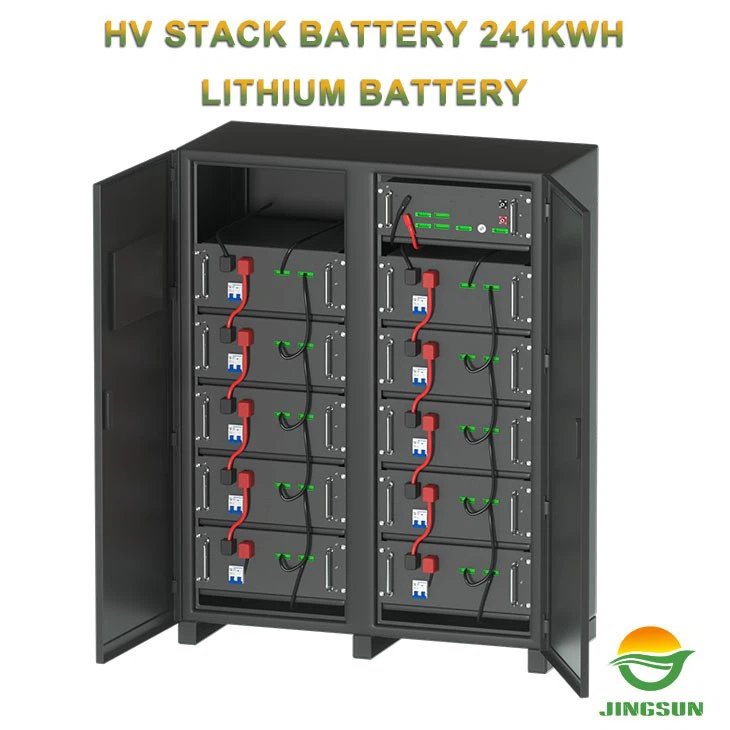

Product Specification
|
Items |
Specification |
|
Product Name |
Rechargeable Lithium Iron Phosphate Module |
|
Module Model |
51.2V 314AH LFP 1P16S / 15PCS |
|
System Capacity |
768V 314Ah |
|
Nominal Capacity |
241.15kWh |
|
Usable Capacity |
217kWh(90% DOD) |
|
Nominal Voltage |
768V |
|
Working Voltage |
648~864V |
|
Charging Voltage |
864V |
|
Max. Charge Current |
100A |
|
Max. Discharge Current |
200A |
|
Communication |
RS485, CAN |
|
Storage Temperature |
0℃～45℃(Recommended) |
|
Storage Humidity |
≤85%(RH) |
|
Working Temperature |
Charging：0℃～50℃ Discharging：-20℃～50℃ |
|
Working Humidity |
≤95%(RH) No Condensation |
|
Working Altitude |
≤2000m |
|
Ingress Protection |
IP20 |
|
Protective Class |
IP20 |
|
Weight |
~111kg(*Module Qty) |
|
Dimension |
450mm*770mm*240mm(1 Module) |
|
Modual Qty |
Module：15PCS |
|
Cycle Life |
＞6000(25℃),80% EOL |
|
Design Life |
10 Years(25℃) |
Application Scenarios
Power Supply for Small Businesses in the Middle East
Suitable for convenience stores and small supermarkets in Middle Eastern towns, storing solar or grid power to ensure stable operation of lighting, refrigeration, and point-of-sale equipment, addressing grid fluctuations and power rationing, and reducing electricity costs.
Power Supply for Rural Households and Agricultural Irrigation in Central Asia
Serving agricultural areas and rural households in Central Asia, providing power for everyday appliances, agricultural irrigation pumps, and small agricultural tools. Combined with solar power, it enables efficient off-grid/connected operation, solving the problem of unstable rural power grids.
Power Supply for Community Public Facilities and Small Businesses in Africa
Supporting streetlights, public water stations, and small workshops (tailor shops, barbershops) in African towns and communities, replacing scattered diesel generators, and ensuring the continuous operation of basic public services and small businesses.
Power Supply for Residential Buildings and Small Retail Stores in Latin America
Suitable for urban and rural residential buildings and small retail stores in Latin America, storing solar power to meet the basic electricity needs of households for lighting and appliances, and stores, addressing frequent power outages and improving electricity autonomy.
Scenario-based Pain Point Solutions
|
Application Scenario |
Regional Pain Points |
Product Solutions |
|
Power Supply Guarantee for Small Commercial Premises in the Middle East |
Frequent grid fluctuations, summer power rationing, high electricity price premium during peak hours |
Store energy during off-peak hours to reduce costs, achieve millisecond-level switchover in case of power outage, and ensure uninterrupted operation of refrigeration equipment |
|
Power Supply for Rural Households and Agricultural Irrigation in Central Asia |
Weak rural power grid coverage, unstable power supply during irrigation periods |
Realize off-grid/on-grid friendly operation when paired with photovoltaics, ensure continuous power supply for water pumps, and reduce irrigation costs by over 40% |
|
Power Supply for Community Public Facilities and Small Businesses in Africa |
High cost of diesel power generation, loud noise, frequent maintenance |
Replace diesel generators, achieve zero noise and zero emissions, and save 50% of annual operation and maintenance costs |
|
Power Supply for Residential Buildings and Small Retail Stores in Latin America |
Frequent power outages, slow progress of power grid renovation |
Realize independent energy storage power supply without relying on municipal power grids, and improve power autonomy by 100% |
FAQ
Q: Is the Jingsun 241KWH energy storage battery compatible with existing photovoltaic (PV) systems?
A: Yes, it is fully compatible with most mainstream PV systems. It supports both off-grid and on-grid seamless switching without additional modification, which is suitable for the PV power generation scenarios in target regions.
Q: Can the battery operate normally in extreme temperatures in the Middle East and Central Asia?
A: Absolutely. It has a wide operating temperature range of -20℃ to 60℃, which can withstand high temperatures in the Middle East and low temperatures in Central Asia, ensuring stable performance in extreme climates.
Q: Do I need a professional team for installation?
A: No special professional team is required. The battery adopts a modular design, and 4 people can complete the deployment in 8 hours. We also provide installation guidance videos and local training support.
Q: What after-sales support is available in Africa and Latin America?
A: We have localized after-sales outlets in key regions of Africa and Latin America, providing quick delivery of spare parts, remote fault diagnosis, and on-site maintenance services to solve problems in a timely manner.
Q: What is the payback period of this energy storage battery?
A: The payback period is 3-5 years, which varies slightly according to the local sunlight conditions, electricity prices and usage scenarios. It can significantly reduce long-term electricity costs compared with diesel power generation and grid power.
Q: Can the battery capacity be expanded later if my power demand increases?
A: Yes, it supports modular expansion. You can add additional battery modules according to your subsequent power demand without replacing the entire system, which is flexible and cost-effective.
Q: What safety protection functions does the battery have?
A: It is equipped with a smart BMS (Battery Management System), which provides multiple protections such as overcharge, over-discharge, over-temperature, over-current and short-circuit. It also has IP65 dustproof and waterproof rating for safe use in harsh environments.
Q: What is the service life of the Jingsun 241KWH energy storage battery?
A: The cycle life is ≥6000 times, and the expected service life is about 10 years, which can meet the long-term power supply needs of small businesses, rural households and community facilities.
Q: Can the battery be charged by both the grid and PV systems?
A: Yes, it supports dual input of grid power and PV power. It can automatically switch charging sources according to actual conditions, ensuring continuous power supply and maximizing the use of clean energy.
Q: Does the product meet the certification requirements of target regions?
A: Yes, it has obtained international certifications such as IEC 62619, CE and UL, as well as regional certifications including SASO (Middle East), SABS (Africa) and INMETRO (Latin America), fully complying with local import and use regulations.
