Reliable. Safe. EUCompliant. Built for LongLife Energy Storage

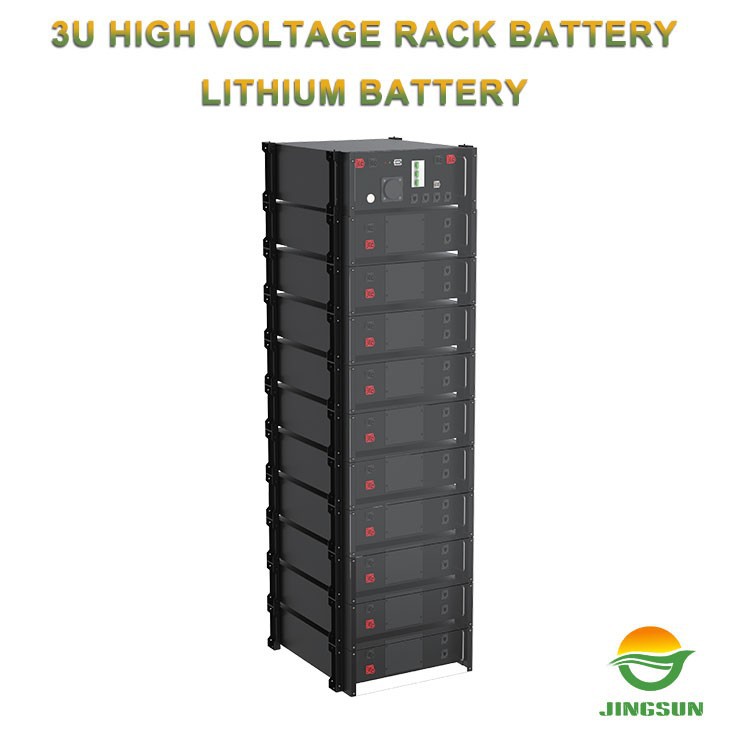

JINGSUN THRHV20–HV66 series is a professional 3U highvoltage rackmount energy storage system powered by automotivegrade LiFePO4 battery cells. Designed to match the technical standards, certification requirements and installation habits of the European market, this product provides stable, scalable and lowmaintenance energy storage for commercial & industrial sites, solar selfconsumption, microgrids, data centers and critical backup power applications.
With intelligent BMS, standard 19inch rack structure, wide temperature resistance and long cycle life, it has become a preferred solution for European installers, system integrators and energy project developers.
Product Highlights
1. Standard 19 inch Rack Installation
This series adopts a universal 19 inch embedded rack design, fully compatible with standard server cabinets, energy storage cabinets and industrial control enclosures.
Quick plug and play installation
Easy for daily inspection and maintenance
Reduces on site construction time and labor cost
Neat, professional cabinet layout ideal for commercial projects
2. Ultra Safe LiFePO4 Chemistry
LiFePO4 is globally recognized as the safest lithium ion battery chemistry for stationary energy storage.
Excellent thermal stability, low risk of thermal runaway
Extremely low self discharge rate: can be stored up to 6 months without charging
No memory effect, supports frequent shallow charging and discharging
Stable performance over long term operation
3. Intelligent BMS with Full Protection
The built in smart battery management system monitors and protects every cell in real time.
Over charge protection
Over discharge protection
Over current and short circuit protection
Over temperature and under temperature protection
Automatic cell voltage balancing
Extends battery life and ensures consistent performance
4. Flexible System Expansion & Upgrade
The modular design supports high scalability for various project demands.
Multiple battery modules can be connected in parallel to increase capacity and power
Support USB local upgrade
Support Wi Fi wireless upgrade (optional)
Support remote upgrade (compatible with Deye and other mainstream HV inverters)
Easy to integrate with hybrid and high voltage inverter systems
5. Eco Friendly & EU Environmental Compliance
Fully aligned with European environmental directives and green energy policies.
Non toxic, non polluting materials
No heavy metals, environmentally friendly during production and recycling
Low carbon footprint, supports renewable energy targets
Complies with EU RoHS, CE and relevant environmental standards
6. Wide Temperature Adaptability
Stable performance in harsh European climate conditions.
Charging temperature range: 0°C ~ 50°C
Discharging temperature range: -20°C ~ 55°C
Maintains excellent discharge capacity even in low temperatures
Ensures year round stable operation in outdoor and semi outdoor cabinets
7. Long Cycle Life & Low Total Cost of Ownership
Long lifetime reduces replacement frequency and improves project economics.
Cycle life: ≥6000 cycles (25±2℃, 0.5C/0.5C, EOL 70%)
Recommended discharge depth: 90%
High reliability reduces maintenance cost
Better return on investment (ROI) for C&I energy storage projects
8. Stable Communication & Remote Monitoring
Rich communication ports for smart energy management systems.
Communication: CAN 2.0 / RS485 / Wi Fi (optional)
Real time data monitoring: voltage, current, temperature, SOC, SOH
Support remote control and fault diagnosis
Compatible with most European energy management systems (EMS)
Technical Specifications
|
Parameter |
Details |
|
Cell Chemistry |
LiFePO4 |
|
Module Nominal Voltage |
51.2 V |
|
Module Capacity |
100 Ah |
|
Module Energy |
5.12 kWh |
|
System Nominal Voltage |
204.8 V – 665.6 V |
|
System Energy |
20.48 kWh – 66.56 kWh |
|
Recommended Charge/Discharge Current |
50 A |
|
Max. Charge/Discharge Current |
100 A |
|
Cycle Life (25±2℃, 0.5C/0.5C, EOL 70%) |
≥6000 cycles |
|
Recommended DOD |
90% |
|
Communication |
CAN 2.0 / RS485 / Wi Fi |
|
Operating Temperature |
Charge: 0℃ ~ 50℃; Discharge: -20℃ ~ 55℃ |
|
Storage Temperature |
0℃ ~ 35℃ |
|
Humidity |
5% ~ 85% RH |
|
Altitude |
≤ 2000 m |
|
IP Rating |
IP20 |
|
Installation |
Rack Mount |
|
Certifications |
CE EMC, MSDS, UN38.3 |

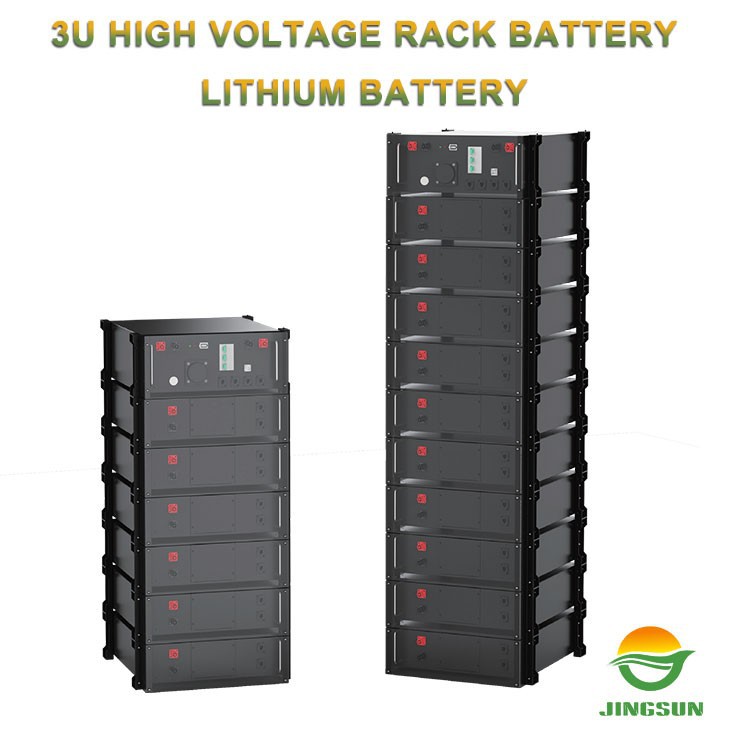

Model Specification Table
|
Model |
System Voltage (V) |
System Energy (kWh) |
Dimensions (W×D×H mm) |
Weight (kg) |
|
TH R HV20 |
204.8 |
20.48 |
538 × 492 × 791 |
195 |
|
TH R HV25 |
256.0 |
25.60 |
538 × 492 × 941 |
240 |
|
TH R HV30 |
307.2 |
30.72 |
538 × 492 × 1091 |
285 |
|
TH R HV35 |
358.4 |
35.84 |
538 × 492 × 1241 |
330 |
|
TH R HV40 |
409.6 |
40.96 |
538 × 492 × 1391 |
375 |
|
TH R HV46 |
460.8 |
46.08 |
538 × 492 × 1541 |
420 |
|
TH R HV51 |
512.0 |
51.20 |
538 × 492 × 1691 |
465 |
|
TH R HV56 |
563.2 |
56.32 |
538 × 492 × 1841 |
510 |
|
TH R HV61 |
614.4 |
61.44 |
538 × 492 × 1991 |
555 |
|
TH R HV66 |
665.6 |
66.56 |
538 × 492 × 2141 |
600 |
Typical Applications
Commercial & Industrial Solar SelfConsumption
Industrial & Commercial Peak Shaving & Demand Reduction
Data Center UPS & Critical Backup Power
Microgrid & OffGrid Renewable Energy Systems
Wind & Solar Hybrid Energy Storage
Government & Public Facility Backup Power
Construction Site Mobile Energy Storage
Energy Storage for Charging Stations
Why Choose JINGSUN 3U HV Rack Battery for European Projects?
Fully compliant with EU safety and EMC standards
LiFePO4 chemistry for maximum safety and long life
≥6000 cycles for low total cost of ownership
Intelligent BMS with realtime protection and balancing
Standard 19inch rack for easy installation and integration
Flexible expansion and remote upgrade capability
Wide temperature range suits European climates
Ecofriendly design meets EU green energy goals
Stable communication compatible with European inverters and EMS
Warranty & Service
JINGSUN provides professional technical support, warranty service and aftersales maintenance for European customers. We offer clear warranty terms, fast response technical support and complete documentation including datasheets, installation manuals and certification files.
