Product Introduction

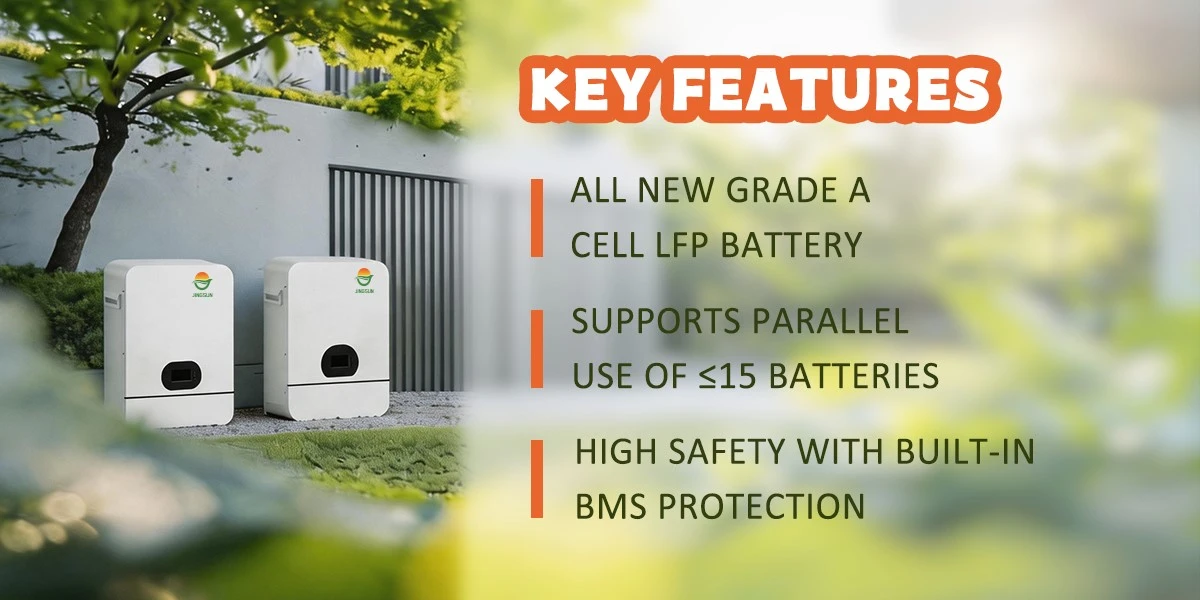

Built with all-new Grade A LiFePO4 (LFP) battery cells, ensuring stable discharge, low degradation, and high safety for daily residential use.
Designed with 6000 full charge-discharge cycles, delivering long service life and lower long-term cost of ownership.
Supports parallel connection of up to 15 batteries, allowing flexible capacity expansion from residential to small commercial demand.
Equipped with a built-in smart BMS for full protection against overcharge, over-discharge, overcurrent, over-temperature, and short circuit.
IP20(P54) protection rating provides effective dust and splash protection for stable indoor operation.

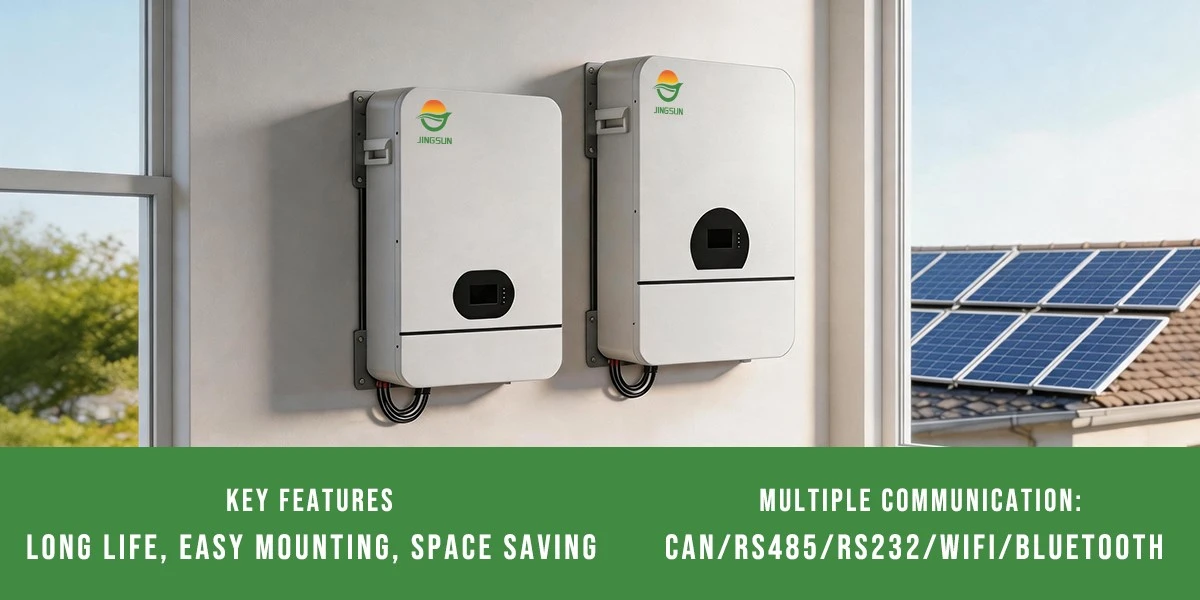

Wall-mounted installation saves floor space and integrates easily into home environments with a home-appliance-style appearance.
Multiple communication ports (CAN/RS485/RS232/WIFI/Bluetooth) for real-time monitoring, remote control, and system compatibility.
Certified with CE, FC, UN38.3, and MSDS, complying with global safety standards and transportation requirements.
Works efficiently within a wide temperature range: 0–55°C for operation and -20–55°C for storage.
Low self-discharge rate maintains capacity during long-term standby, ideal for backup power scenarios.
Product Parameter
|
Model |
SMP-AU25.6V100AH |
SMP-AU51.2V100AH |
SMP-AU51.2V150AH |
SMP-AU51.2V200AH |
SMP-AU51.2V314AH |
|
Battery |
LiFePO4 |
||||
|
Standard Voltage |
25.6V |
51.2VDC |
|||
|
Voltage Range |
21.6V-28.8V |
43.2-57.6VDC |
|||
|
Nominal Capacity |
100Ah |
100Ah |
150Ah |
200Ah |
314Ah |
|
Rated Energy |
2.56kWh |
5.12kWh |
7.68kWh |
10.24kWh |
16.07kWh |
|
Communication |
CAN/RS485/RS232/WIFI/Bluetooth |
||||
|
Cell Self-Discharge |
<5%/Month |
||||
|
Parallel Operation |
1 - 15 in Parallel |
||||
|
DOD |
90% |
||||
|
Cycle Life |
>6000 @25°℃,80%DOD |
||||
|
Max. Current |
100A |
200A |
|||
|
IP Rating |
IP20(P54) |
||||
|
Installation |
Wall Mounted |
||||
|
Working Temperature |
0-55°C |
||||
|
Storage Temperature |
-20-55°C |
||||
|
Humidity |
≤80% |
||||
|
Product Dimension |
426*378*160 mm |
426*590*160 mm |
705*530*247 mm |
576*820*200 mm |
530*790*240mm |
|
Package Dimension |
470500285mm |
505*690*285mm |
770*630*325 mm |
655*920*440 mm |
630*900*510 mm |
|
Net Weight |
26kg |
44kg |
84kg |
96kg |
125kg |
|
20GP Container |
352PCS |
256PCS |
216PCS |
110PCS |
90PCS |
|
40HQ Container |
736PCS |
512PCS |
320PCS |
220PCS |
195PCS |
Applications
Residential solar self-consumption system:
Stores excess solar power generated during the day for night use, significantly improving solar utilization and reducing grid electricity dependence.
Whole-home backup power supply:
Provides stable emergency power for lighting, refrigerators, network equipment, and other essential loads during grid outages to ensure normal family life.
Peak-valley electricity arbitrage:
Charges during low‑price off‑peak periods and discharges at high‑price peak periods, effectively cutting monthly electricity expenses for families.

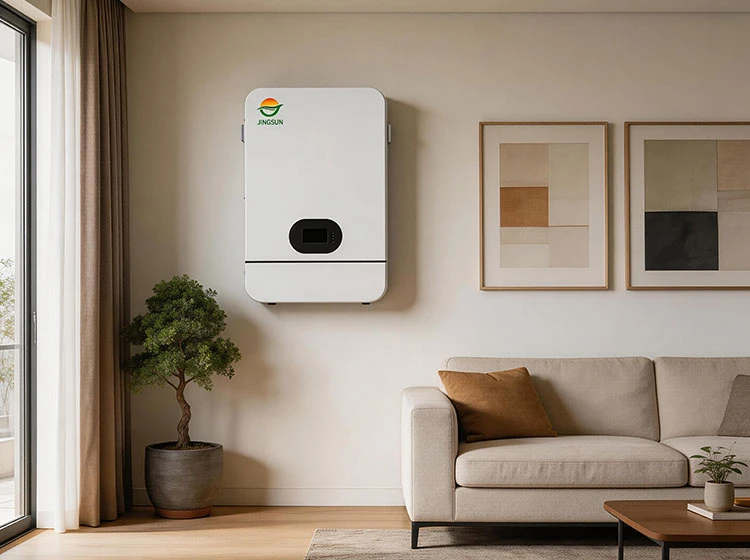

Wall-mounted energy storage for villas & apartments:
Compact, home‑appliance design fits indoor spaces perfectly, offering clean, quiet, and reliable energy management for modern residences.
Safety & Protection
Built-in BMS provides full-round protection: overcharge, over-discharge, overcurrent, over-temperature, short circuit.
Grade A LFP cells feature high thermal stability and low risk of thermal runaway.
IP20(P54) protects against dust and water splash for safe indoor use.
Full international certifications ensure reliable use and global transportation.
Packaging & Transportation
Standard export packaging for durable long-distance delivery.
UN38.3 certified for safe air, sea, and land transportation.
High container loading efficiency reduces logistics cost per unit.
FAQ
Q: What battery cell type does the Jingsun 15kWh wall-mounted battery use?
A: It uses all-new Grade A LFP (LiFePO4) battery cells, with high safety, stable performance and long service life.
Q: How long is the cycle life of this 15kWh home energy storage battery?
A: This battery provides up to 6000 cycles, supporting long-term daily use for home energy storage and backup power.
Q: Can I connect several Jingsun 15kWh batteries together to expand capacity?
A: Yes, this model supports parallel use of up to 15 batteries for flexible high-capacity expansion.
Q: What communication methods does this battery support?
A: It supports CAN/RS485/RS232/WIFI/Bluetooth for stable inverter connection, real-time monitoring and remote control.
Q: What safety protections are built into this battery?
A: It is equipped with a built-in smart BMS to provide full protection against overcharge, over-discharge, over-current, over-temperature and short circuit.
Q: What is the IP protection rating of this wall-mounted battery?
A: The protection grade is IP20(P54), which is dustproof and splash-proof, suitable for indoor household environments.
Q: What are the working and storage temperature ranges?
A: Working temperature: 0–55°C; Storage temperature: -20–55°C; Ambient humidity ≤80%.
Q: What international certifications does this battery have?
A: This product is certified with CE, FC, UN38.3 and MSDS, meeting global market access and transportation safety requirements.
Q: Is this 15kWh model wall-mounted? Is installation difficult?
A: Yes, it is specially designed for wall-mounted installation. It is space-saving, easy to install and matches home appliance-style appearance.
Q: What are the main applications of the Jingsun 15kWh wall-mounted battery?
A: It is mainly used for home solar energy storage, emergency backup power, peak-valley electricity arbitrage, as well as energy supply for villas, apartments and small commercial places.
